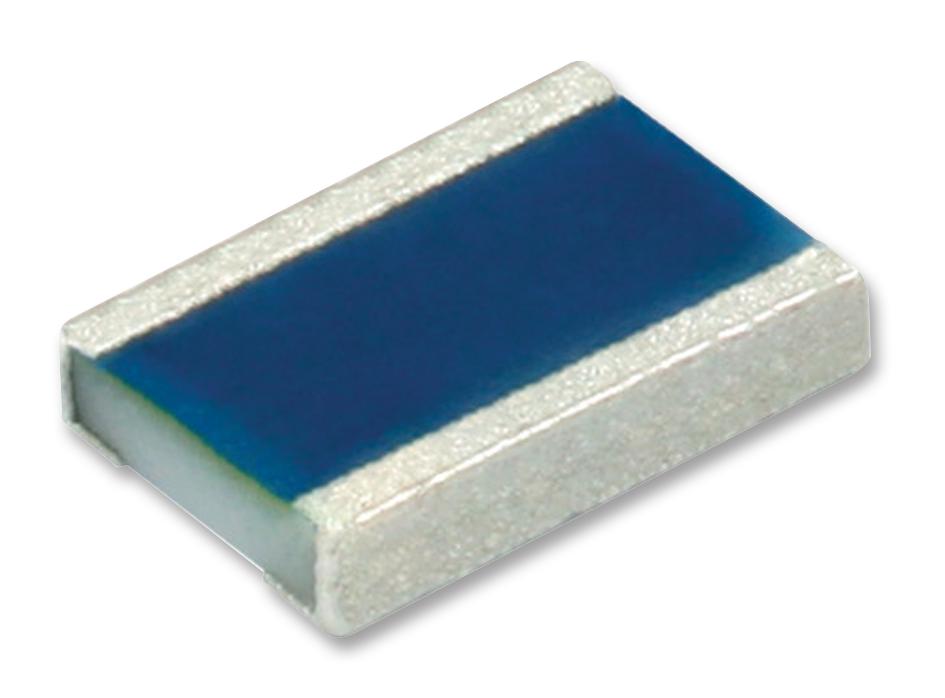

Vishay MCW0612MC2002FP100 High Power Thin Film Resistor
The MCW 0612 high-power thin film chip resistor is designed for demanding professional power measurement applications. It offers excellent temperature cycling robustness, high dissipation up to 1.0 W, and RoHS compliance. Suitable for automotive and industrial environments, it features a resistance range from 10² to 100 kΩ with tight tolerance levels of 0.5% or 1%. The resistor is constructed on a high-grade ceramic substrate (Al2O3) with laser-trimmed meander grooves for precise resistance values and a matte tin-plated nickel termination for reliable soldering. Certified for electrical, mechanical, and climatic stability, it withstands temperatures up to 175°C and is ideal for high power, high temperature, and long-term stability in various electronic systems.
Vishay MCW0612MC2002FP100 High Power Thin Film Resistor Specifications:
- Size: 0612 (RR1632M)
- Resistance Range: 10² to 100,000 Ω
- Resistance Tolerance: ±0.5% or ±1%
- Temperature Coefficient: +25 ppm/K; +50 ppm/K
- Rated Dissipation: 1.0 W
- Operating Voltage: 75 V max.
- Operating Temperature Range: -55°C to +175°C
- Film Temperature: Max 175°C
- Ambient Temperature: -55°C to 175°C
- Construction: Ceramic substrate with laser-cut meander groove, matte tin-plated nickel terminations
- RoHS, AEC-Q200 qualified
- Certification: Complies with RoHS, ASTM B 809 sulfur resistance
- Reliability: High temperature cycling robustness, long-term stability
- Packaging: Tape and reel suitable for automated SMD assembly, dimensions compatible with industry standards
Buy the Vishay Series Professional Thin Film Resistor: MCW0612
Purchase the Vishay MCW 0612 high-power resistor online today and ensure reliable performance for your automotive and industrial electronics. Engineered for extreme temperature cycling and high power dissipation up to 1.0 W, it features precise resistance values, robust construction, and RoHS compliance. Perfect for high temperature environments, it provides long-term stability and dependable operation in power measurement and industrial applications. Order now to benefit from industry-leading quality, efficient shipment options, and technical support to enhance your project’s reliability and durability.
Get Vishay MCW 0612 resistor today—built for high power, stability, and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay MCW0612MC2002FP100?
You can click on the BUY or RFQ button to purchase MCW0612MC2002FP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MCW0612MC2002FP100?
You can download the MCW0612MC2002FP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MCW0612MC2002FP100?
Vishay
