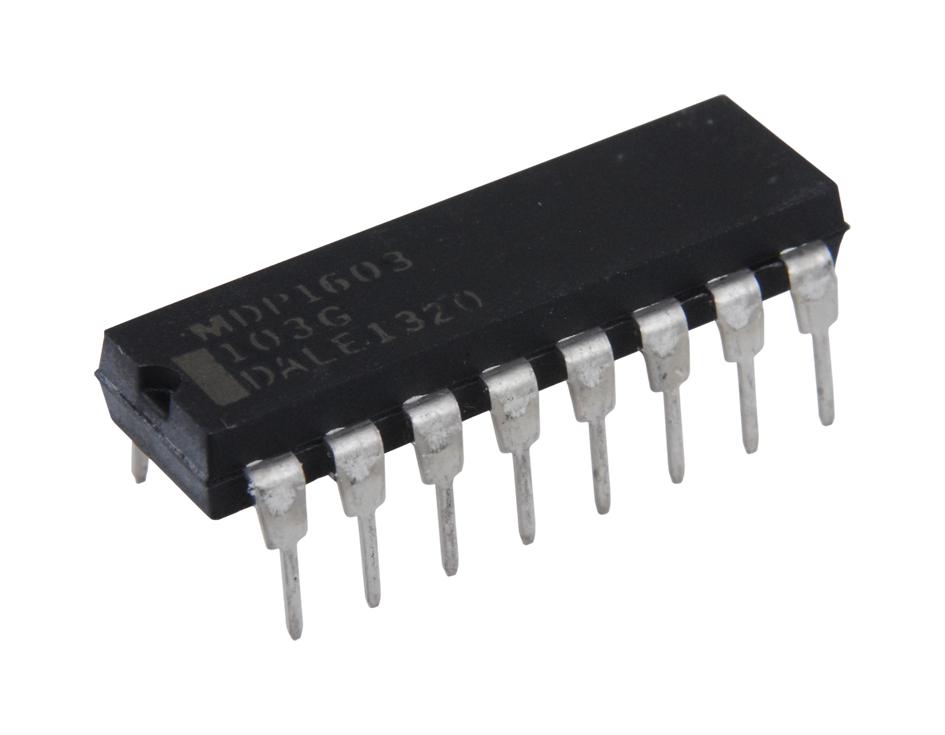

Vishay MDP1603100RGE04 Resistor Network
The MDP series resistor networks are rugged, molded epoxy packages with isolated, bussed, and dual terminator configurations suited for high-reliability applications. Featuring thick film resistive elements with low temperature coefficients from -55°C to +125°C, these networks offer wide resistance ranges from 10 Ω to 2.2 MΩ, compatible with automatic insertion and reducing assembly costs. They are RoHS compliant, available in tube packs, and suitable for various circuit applications like pull-up, pull-down, impedance matching, and line termination in digital and analog circuits.
Vishay MDP1603100RGE04 Resistor Network Specifications:
- Package Power Rating (Maximum at +70 °C): MDP14: 1.73 W, MDP16: 1.92 W
- Resistance Range: 10 Ω to 2.2 MΩ
- Temperature Range: -55 °C to +125 °C
- Dielectric Strength: 200 V
- Insulation Resistance: > 10,000 MΩ
- Body Material: Molded epoxy
- Terminals: Solder plated leads
- Weight: 14 pin = 1.3 g; 16 pin = 1.59 g
- Impedance Codes: Ranges from 82 Ω to 3.3 KΩ
- Mechanical Dimensions: 0.125 to 0.150 inches seated height, length 0.750 to 0.850 inches
- RoHS compliant, lead-free options available
Buy the Vishay MDP1603100RGE04 – Reliable Resistor Network for Industrial Applications
Purchase the Vishay MDP1603100RGE04 resistor network online today and benefit from high-quality, RoHS-compliant thick film resistors. These rugged, molded epoxy packages are designed for durability and precise performance, making them ideal for industrial circuit applications such as pull-up, pull-down, line termination, and impedance matching. Available in tube packs, they are compatible with automated assembly lines. Ensure your electronics operate reliably with these resistor networks, offering wide resistance ranges, low temperature coefficients, and long-term stability. Buy now for optimal circuit performance.
Buy Vishay MDP1603100RGE04 now and experience unmatched reliability and performance in circuit impedance matching and pull-up applications.
Frequently Asked Questions
Where can I buy Vishay MDP1603100RGE04?
You can click on the BUY or RFQ button to purchase MDP1603100RGE04 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MDP1603100RGE04?
You can download the MDP1603100RGE04 datasheet or visit the Vishay website for support.
Who is the manufacturer of MDP1603100RGE04?
Vishay
