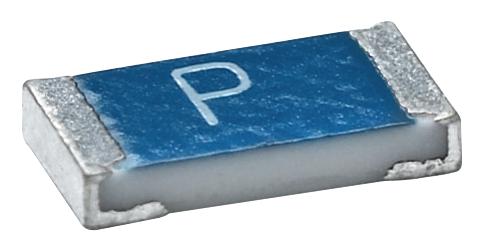

Vishay MFU1206FF04000P100 Thin Film Chip Fuse
MFU series thin film chip fuses are designed for rapid actuation with very controlled fusing characteristics, suitable for information technology, industrial, automotive, and audio/video electronics. Manufactured with advanced thin film technology, these fuses feature homogeneous metal alloy deposits on high-grade ceramic bodies, providing electrical, mechanical, and climatic protection. They are RoHS compliant, support lead-free soldering, and undergo extensive testing to ensure reliability and stability. With various sizes like 0402, 0603, 0805, and 1206, these fuses combine performance and ease of processing in modern electronic assemblies.
Vishay MFU1206FF04000P100 Thin Film Chip Fuse Specifications:
- Physical Dimensions: 1206 size (L: 3.2 ±0.1 mm, W: 1.6 ±0.15 mm), ceramic body with metal alloy film
- Rated Voltage: 63V for larger sizes (1206, 0805), 32V for smaller sizes (0402, 0603)
- Current Rating Range: 0.1 A to 6.3 A depending on size
- Breaking Capacity: 50 A at 32V or 63V depending on size
- Resistance: 22 mΩ to 560 mΩ at 0.1 x In, varies with size and current
- Temperature Range: -55°C to +125°C, operating temperature 105°C
- Compliance: RoHS, UL recognized, IEC 60127-4, IEC 60068-1, UL 248-14 standards
- Soldering Compatibility: Suitable for wave, reflow, vapour phase, with lead-free tin plating
- Durability: Testing under climatic, vibration, and thermal conditions, high stability of fusing characteristics
- Packaging: Tape and reeled, with sizes 1000 or 20,000 pieces per reel, compatible with automated assembly
Buy the Vishay Series MFU Thin Film Chip Fuse: MFU1206FF04000P
Order Vishay MFU1206FF04000P online today and benefit from high-precision, rapid-acting fuses designed for reliable performance in industrial, automotive, and consumer electronics. With advanced thin film technology and strict manufacturing control, these fuses guarantee stability and safety across various applications. They feature RoHS compliance, lead-free soldering support, and are compatible with automated assembly processes. Purchase now to experience premium quality, extensive testing standards, and fast delivery for your electronic assembly needs.
Get Vishay MFU1206FF04000P today—built for rapid actuation and long-lasting durability in critical electronic circuits.
Frequently Asked Questions
Where can I buy Vishay MFU1206FF04000P100?
You can click on the BUY or RFQ button to purchase MFU1206FF04000P100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MFU1206FF04000P100?
You can download the MFU1206FF04000P100 datasheet or visit the Vishay website for support.
Who is the manufacturer of MFU1206FF04000P100?
Vishay
