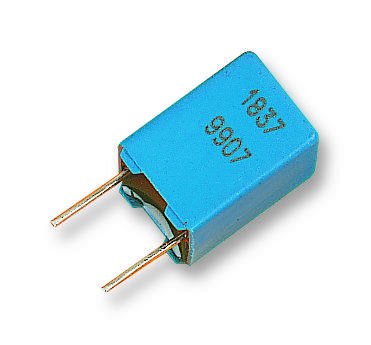

Vishay MKP1837368011 Metallized Polypropylene Capacitor
The MKP 1837 is a high-quality metallized polypropylene film capacitor suitable for oscillators, timing, and high-frequency filter circuits. It features a flame-retardant plastic case, vacuum-deposited aluminum electrodes, and a temperature range of -55°C to +100°C. With a dielectric of polypropylene film, it offers excellent stability, low dissipation factor, and RoHS compliance. Rated voltage is 160 VDC, and it has a capacitance range from 0.01pF to 0.1pF, making it ideal for precision applications needing reliable performance and long operational life beyond 300,000 hours.
Vishay MKP1837368011 Metallized Polypropylene Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Vacuum deposited aluminum
- Coating: Flame retardant plastic case (UL-class 94 V-0), epoxy resin sealed, blue color
- Construction: Extended metallized film
- Leads: Tinned wire
- Operating Temperature Range: -55°C to +100°C
- Capacitance Range: 0.01pF to 0.1pF
- Capacitance Tolerance: +10% (K), +5% (J), +2.5% (H), +1% (F)
- Rated Voltage: 160 VDC RoHS compliant
- Permissible AC Voltage at up to 60Hz: 100 VAC
- Test Voltage: 1.6x Up electrode/electrode for 2 seconds
- Insulation Resistance: ≥100,000 MΩ at 100 VDC after 1 minute
- Temperature Coefficient: -250°C x 10⁻⁸/°C
- Max Pulse Rise Time dv/dt: 390 V/s
- Operational Life: >300,000 hours with failure rate <5 FIT at 40°C
- Self Inductance: ~6 nH
- Dielectric Absorption: 0.05%
- Certifications: RoHS and UL compliant
- IEC Test Classification: 55/100/56 according to IEC 60068
Buy the Buy Vishay MKP 1837 Part Number MKP1837368011 Online
Purchase the Vishay MKP 1837 metallized polypropylene capacitor online for high-frequency oscillator and filter circuits. Designed with flame-retardant, epoxy-sealed case, it offers superior temperature stability, low dissipation, and RoHS compliance. Rated at 160 VDC, with capacitance from 0.01pF to 0.1pF, it ensures reliable operation in critical applications. Its long operational life exceeds 300,000 hours, making it ideal for precision electronic circuitry requiring durability, stability, and safety compliance. Order today for fast delivery and proven performance.
Get Vishay MKP 1837 today—built for precision and long-lasting durability in high-frequency and oscillator applications.
Frequently Asked Questions
Where can I buy Vishay MKP1837368011?
You can click on the BUY or RFQ button to purchase MKP1837368011 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1837368011?
You can download the MKP1837368011 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1837368011?
Vishay
