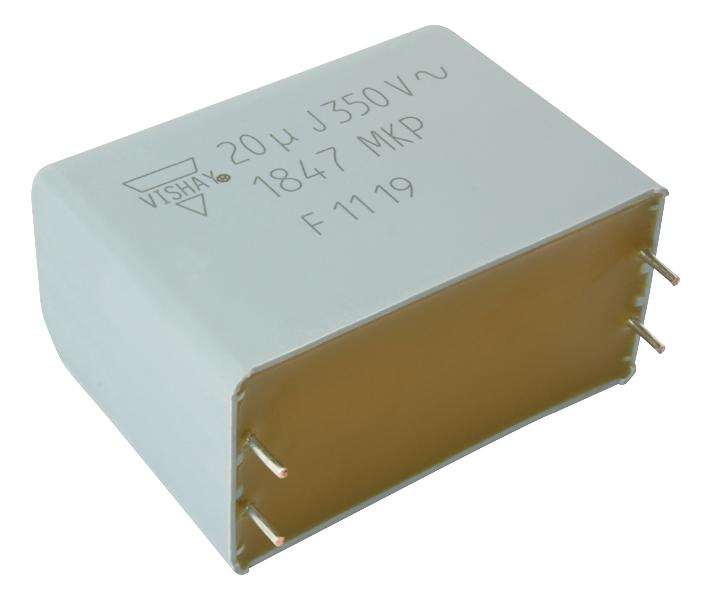

Vishay MKP1847550354P4 AC Filter Capacitor
The MKP1847550354P4 is a metallized polypropylene film capacitor designed for AC filtering applications such as UPS systems, harmonic filters, renewable energy grid interface, and welding equipment. It features high peak current capabilities, long lifetime, and RoHS compliance. The capacitor is constructed with low inductive wound cell elements, potted in a flame-retardant resin case suitable for mounting on printed circuit boards with good vibration and shock resistance. It operates at voltages up to 350 Vac, with temperatures up to 105°C, and includes reliable insulation resistance and lifespan characteristics.
Vishay MKP1847550354P4 AC Filter Capacitor Specifications:
- Dielectric: Polypropylene film
- Capacitance range: 1 UF to 70 UF
- Voltage range: Un 230 Vac to 440 Vac, Unc 450 V, Un 600 V, Un 700 V
- Temperature rating: -55°C to +105°C
- Maximum application temperature: 105°C
- Climatic testing: 40/85/56
- Capacitance tolerance: +5%/-10%
- Construction: Mono or serial, metallized dielectric film
- Encapsulation: Plastic case sealed with resin, flame retardant
- Terminals: Tinned wire
- Self inductance: < 1 nH per mm lead spacing
- Withstanding DC voltage: 1.5 Un for 10 s
- Insulation resistance: > 10,000 s RC at 500 V
- Lifespan: > 60,000 hours at Un
- Power dissipation: Limited to prevent exceeding 105°C case temp, with a max temperature rise of 15°C
- Shock and vibration: Designed for PCB mounting with vibration and shock resistance
- Stand-off: P2 dimensions vary with voltage and capacitance, up to 37.5 mm
- Compliance: RoHS and Halogen-Free
Buy the Buy Vishay MKP1847550354P4 Part Number MKP1847550354P4 Online
Order the Vishay MKP1847550354P4 capacitor online today and benefit from reliable AC filtering for UPS systems, harmonic filters, renewable energy, and welding equipment. Designed with metallized polypropylene film, this capacitor offers high peak current capabilities, long lifespan, and RoHS compliance. It features a plastic flame-retardant case, robust mounting options, and operates at voltages up to 350 Vac with temperatures up to 105°C. Perfect for industrial environments requiring high performance, safety, and durability. Purchase now for quick delivery and optimal performance.
Get Vishay MKP1847550354P4 today—built for precision and long-lasting durability in AC filtering and industrial applications.
