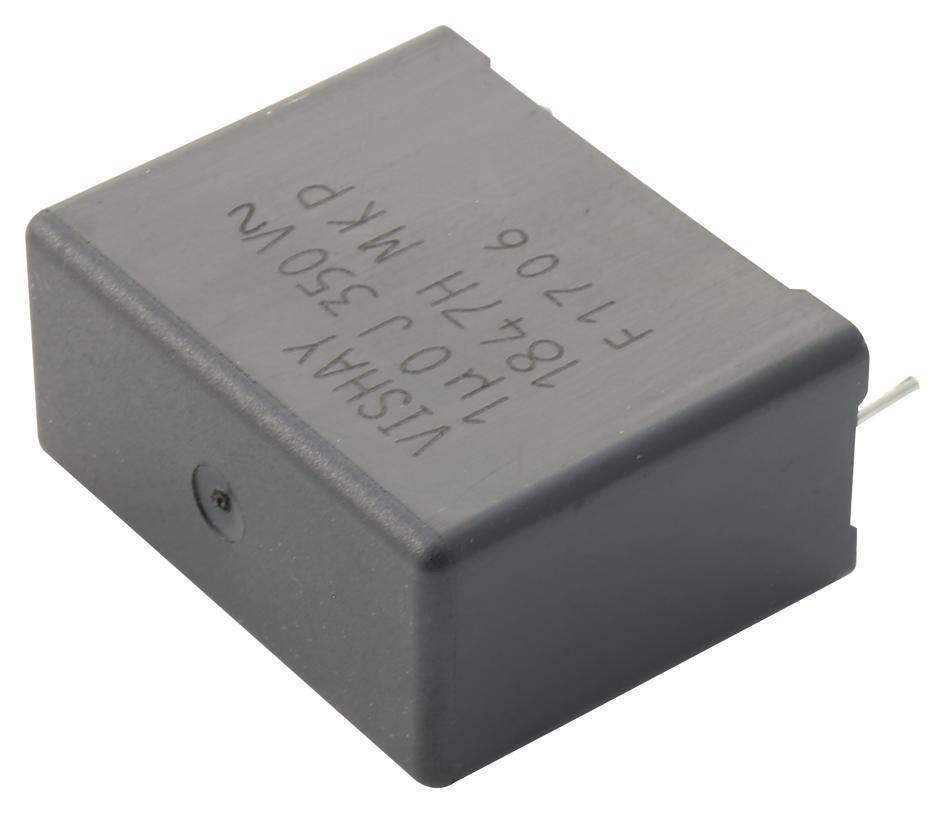

Vishay MKP1847H51035JK2 AC Filtering Capacitor
High-performance metallized polypropylene film capacitor designed for industrial filtering applications. With robust construction, it withstands high humidity, vibration, and shock, making it ideal for outdoor, renewable energy, UPS, and welding equipment. Rated at 85°C, it features various voltage ratings up to 480 Vac, with selectable capacitance values from 1 UF to 35 UF. The capacitor ensures reliable operation under harsh climatic conditions and complies with IEC and UL standards, with sealed flame-retardant resin encapsulation for durability and safety.
Vishay MKP1847H51035JK2 AC Filtering Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Metalized dielectric film, mono construction, encapsulated in flame-retardant resin
- Rated temperature: 85°C
- Maximum case temperature: 105°C
- Capacitance range: 1 UF to 35 UF with +10%, +5% tolerance
- Voltage ratings: 250 Vac, 310 Vac, 350 Vac, 480 Vac at 85°C; lower at 105°C
- Climatic testing: 40/105/56B
- Life expectancy: > 10 x 10^9 hours at 0.5 x Un, 40°C
- Insulation resistance: > 10,000 s at 500 V for leads between leads
- Sealed plastic case with resin, flame retardant, designed for vibration and shock resistance
- Self-inductance: <1 nH per mm of lead spacing
- Withstanding DC voltage: 1.5 Un for 10 seconds
- Dimensional tolerances: Length, width, height ±0.7 to 1.0 mm depending on model
- Terminals: Tinned wire, optional custom terminals
Buy the Vishay Series MKP1847H AC Filtering Capacitor: High Humidity Resistance and Industrial Reliability
Order Vishay MKP1847H AC filtering capacitor online today and benefit from high humidity resistance, robust construction, and reliable performance across industrial, outdoor, and renewable energy applications. With a wide voltage and capacitance range, it ensures optimal filtering and durability even in harsh climatic conditions. Easy to mount with sealed resin casing for safety, these capacitors meet IEC and UL standards, providing peace of mind for long-term operation in demanding environments. Enhance your equipment’s reliability by purchasing this high-quality capacitor online now.
Buy Vishay MKP1847H now and experience unmatched reliability and performance in harsh industrial filtering environments, including renewable energy and outdoor applications.
Frequently Asked Questions
Where can I buy Vishay MKP1847H51035JK2?
You can click on the BUY or RFQ button to purchase MKP1847H51035JK2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1847H51035JK2?
You can download the MKP1847H51035JK2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1847H51035JK2?
Vishay
