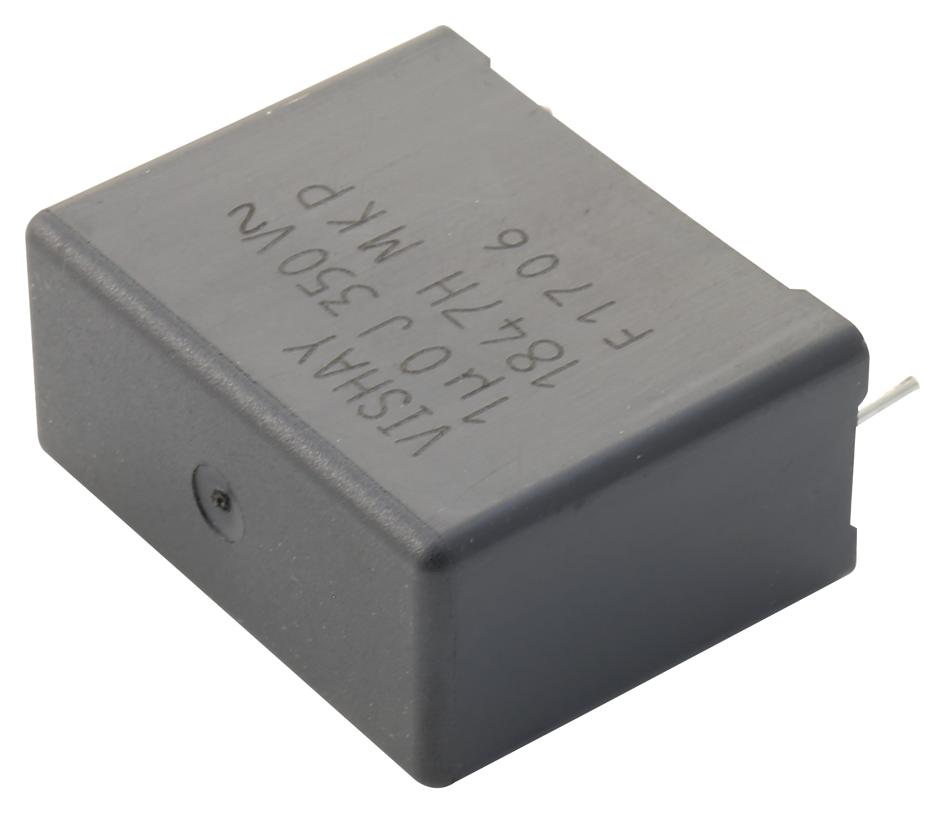

Vishay MKP1847H52048JP4 AC Filtering Capacitor
The MKP1847H series features metallized polypropylene film capacitors designed for AC filtering applications such as outdoor environments, UPS systems, renewable energy, and welding equipment. These robust, high-quality capacitors withstand humidity, high voltages, and temperature cycling with a rated temperature of 85°C and a maximum case temperature of 105°C. They comply with IEC standards and RoHS requirements, offering reliable performance under climatic stress and electrical tests, including vibration, shock, and damp heat. Encased in flame-retardant resin and mounted on printed circuit boards, they are ideal for power smoothing and harmonic filtering with rated voltages up to 480V AC, capacitance from 1UF to 35UF, and tolerance levels of +10%/-5%. Their low inductance, high insulation resistance, and long lifetime make them suitable for demanding industrial and energy applications.
Vishay MKP1847H52048JP4 AC Filtering Capacitor Specifications:
- Dielectric: Polypropylene film
- Capacitance range: 1 UF to 35 UF
- Capacitance tolerance: +10%, -5%
- Rated voltage (Unac): 250V, 310V, 350V, 480V
- Operating temperature: 85°C
- Maximum case temperature: 105°C
- Climatic class: 40/105/56B
- Capacitor construction: Metallized dielectric film, plastic resin-sealed flame retardant case
- Terminals: Tinned wire, pins available
- Insulation resistance: >10,000s at 500V
- Self-inductance: <1 nH per mm of lead spacing
- Life expectancy: > 10^10 hours at 0.5 Unac and 40°C
- Standards: IEC 61071, IEC 60068, UL 810 pending
- Humidity resistance: 85% RH at 85°C for 1000 hours
- Impulse voltage: Up to 480V, withstanding specified pulse slopes
- Mounting: PCB mounting with mechanical fixing, designed for vibration and shock endurance
Buy the Buy Vishay MKP1847H Series AC Filtering Capacitor Part Number MKP1847H52048JP4 Online
Experience the dependable quality of Vishay MKP1847H series AC filtering capacitors. Designed for outdoor, renewable energy, and industrial applications, these robust polypropylene film capacitors withstand high humidity, voltage, and temperature stress. With rated voltages up to 480V AC, capacitance from 1UF to 35UF, and precise tolerance levels, they ensure long-lasting performance. Ideal for harmonic filtering, UPS systems, and motor drives, their flame-retardant resin encapsulation and PCB mounting make them easy to install and reliable under environmental stress for extended service life.
Order your Vishay MKP1847H52048JP4 high humidity-resistant AC filter capacitor today and ensure reliable power quality in demanding industrial environments.
Frequently Asked Questions
Where can I buy Vishay MKP1847H52048JP4?
You can click on the BUY or RFQ button to purchase MKP1847H52048JP4 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1847H52048JP4?
You can download the MKP1847H52048JP4 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1847H52048JP4?
Vishay
