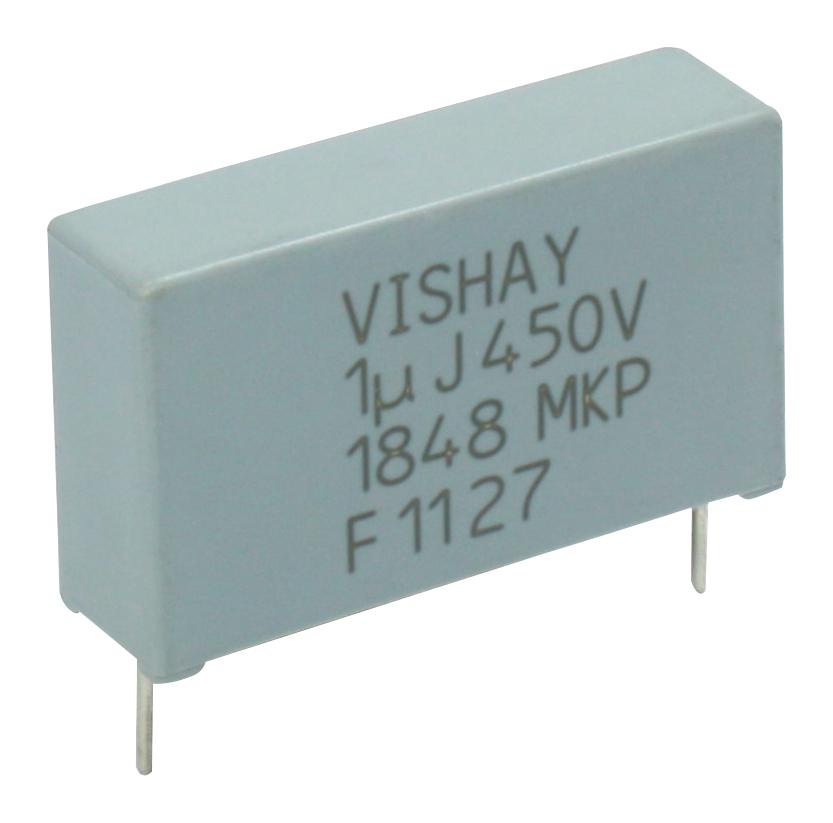

Vishay MKP1848520704K2 DC Link Capacitor
Vishay Roederstein Metallized Polypropylene Film Capacitors are high-performance DC link capacitors designed for industrial applications including HEV/EV power trains, renewable energy inverters, motor drives, and power supplies. They feature low ESR, high peak and RMS current capabilities, and are AEC-Q200 qualified. Encased in a sealed plastic case, these mono construction capacitors operate at rated temperatures up to 85°C with a maximum case temperature of 105°C, and withstand high DC voltages up to 1500 V at 70°C. Their robust design ensures reliable performance in demanding electrical systems.
Vishay MKP1848520704K2 DC Link Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Mono construction, sealed with resin
- Climatic testing class: 40/105/56
- Rated temperature: 85°C
- Maximum case temperature: 105°C
- Rated voltage range: 450 V to 1200 V (depending on model)
- Capacitance: 1 μF to 400 μF, tolerance ±5%
- Self inductance: < 1 nH per mm of lead spacing
- Withstanding DC voltage: 1.5 Unpc for 10 s
- Ripple voltage: 0.2 x Unpc
- Terminals: Tinned wires
- Dimensions: Vary by model, see datasheet for specifics
- RoHS compliant, flame retardant plastic case
- Applicable standards: IEC 61071, IEC 60068
Buy the Vishay MKP1848520704K2 – Reliable DC-Link Capacitor for Industrial Applications
Buy your Vishay MKP1848520704K2 DC link capacitor online today and benefit from high-performance, low ESR features suitable for EV power trains, renewable inverter systems, and motor drives. These robust polypropylene film capacitors offer rated voltages up to 1500 V at 70°C, ensuring reliable operation in demanding industrial environments. With a sealed resin-encased design, they guarantee long-term durability and compliance with international standards. Make your project more efficient by sourcing this proven component online now for fast delivery and guaranteed quality assurance.
Order your Vishay SeriesMKP1848520704K2 DC-Link Capacitor today and ensure your industrial power systems operate with dependable high-voltage stability.
Frequently Asked Questions
Where can I buy Vishay MKP1848520704K2?
You can click on the BUY or RFQ button to purchase MKP1848520704K2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848520704K2?
You can download the MKP1848520704K2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848520704K2?
Vishay
