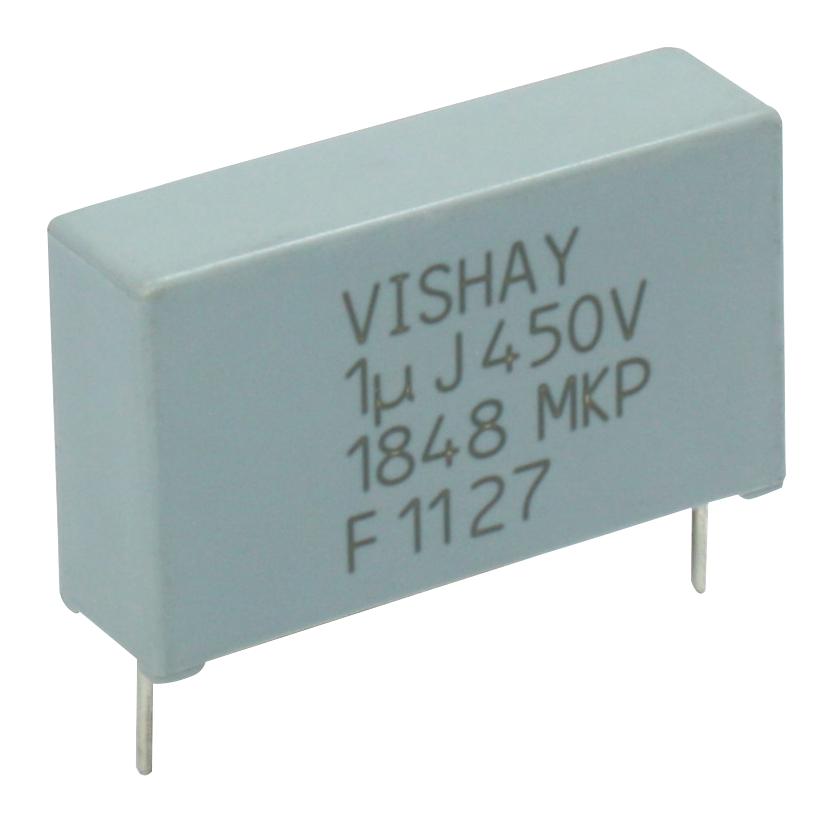

Vishay MKP1848580704K2 DC Link Capacitor
High-performance DC link capacitor designed for power electronics and inverter applications. Features low ESR, high peak and RMS current capabilities, mounting on printed circuit boards, and compliant with RoHS standards. Suitable for HEV/EV powertrain, renewable energy inverters, motor drives, and power supplies, rated for voltages up to 1500V and temperatures of 85°C. Constructed with metallized polypropylene film in sealed, flame-retardant plastic cases, offering reliable performance in demanding environments.
Vishay MKP1848580704K2 DC Link Capacitor Specifications:
- Capacitance Range: 1 μF to 400 μF
- Rated Voltage Range: 450 V to 1200 V (Uopc)
- Maximum Voltage: 1500 V (Uoppc)
- Temperature Rating: 85°C, case max 105°C
- Dielectric: Metallized polypropylene film
- Construction: Mono, sealed in flame-retardant resin case
- Terminals: Tinned wires
- Climatic Test: 40/105/56
- Self Inductance: < 1nH per mm lead spacing
- Life Expectancy: Up to 10 years at 40°C
- Mounting: Radial on printed circuit board
- RoHS Compliant, IEC standards IEC 61071, IEC 60068
- Peak Ripple Voltage: 0.2 x Unpc
- Withstanding DC Voltage: 1.5 Unpc for 10s
Buy the Buy Vishay MKP1848580704K2 Part Number Online
Get your Vishay MKP1848580704K2 high-performance DC link capacitor easily online. Designed for demanding power electronics, it offers low ESR, high peak and RMS current capabilities, and robust construction. Perfect for automotive, renewable energy, motor drives, and power supplies up to 1500V at 85°C. Its sealed flame-retardant case and metallized polypropylene dielectric ensure long-term durability and reliable operation. Safely integrate this capacitor into your designs via trusted online distributors for efficient project execution.
Order your Vishay SeriesMKP1848580704K2 high-voltage DC link capacitor today and ensure reliable power performance in your inverter and motor drive applications.
Frequently Asked Questions
Where can I buy Vishay MKP1848580704K2?
You can click on the BUY or RFQ button to purchase MKP1848580704K2 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848580704K2?
You can download the MKP1848580704K2 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848580704K2?
Vishay
