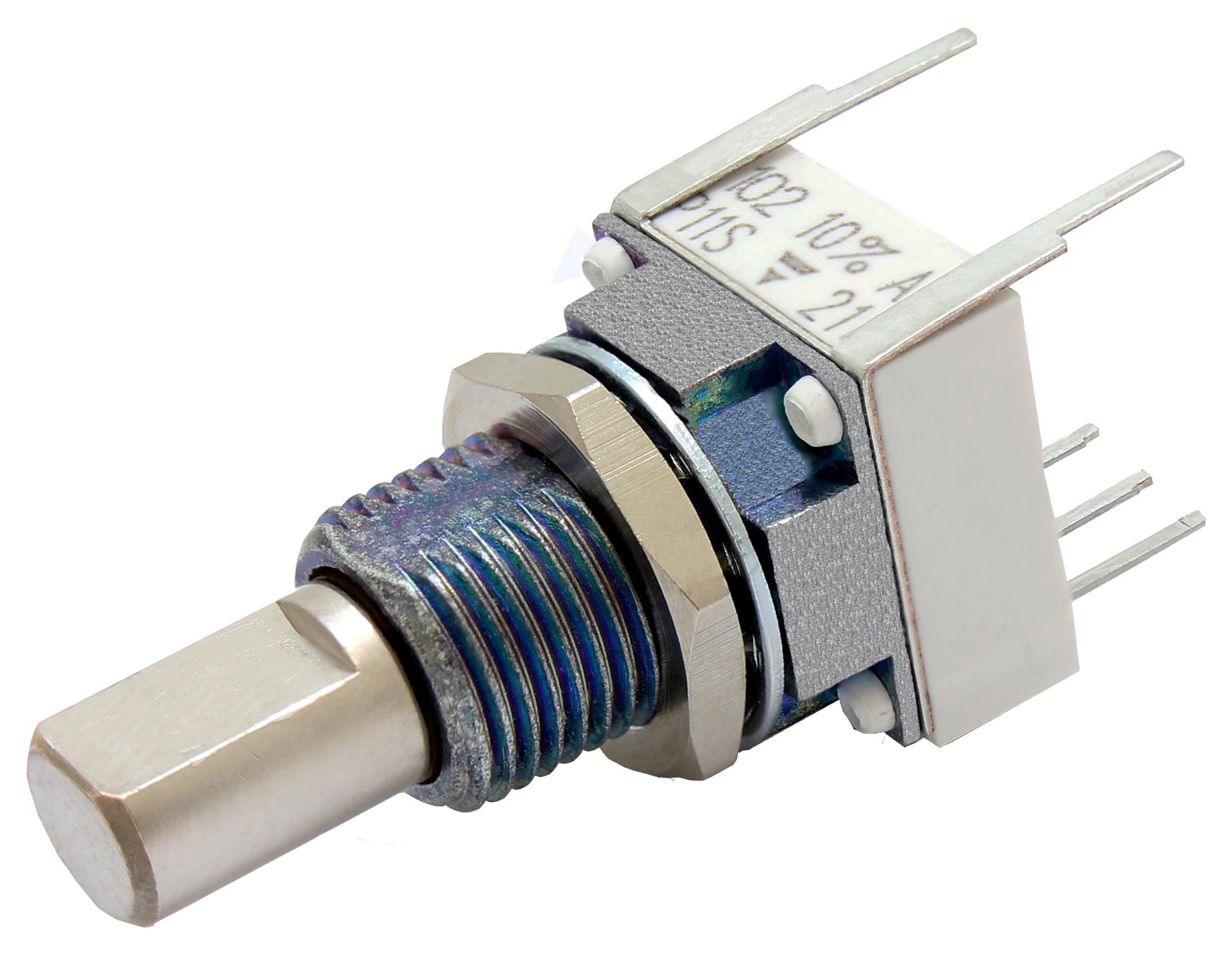

Vishay P11H1F0GHFW10102KA High Torque Panel Potentiometer
The P11H high torque panel potentiometer by Vishay offers a 12.5 mm modular design with a robust, compact structure suited for demanding environments. It features up to 7 modules, IP64 sealing, and a resistive cermet element with linear taper, resistance options from 1kΩ to 100kΩ, and a lifespan of 50,000 cycles. Its high mechanical torque of 8 Ncm ensures durability under vibration and shock conditions. Custom shafts, switch options, and wiring configurations can be tailored to specific applications, making it ideal for precision control in industrial and electronic systems.
Vishay P11H1F0GHFW10102KA High Torque Panel Potentiometer Specifications:
- Resistive element: Cermet, linear taper
- Resistance range: 1kΩ, 4.7kΩ, 10kΩ, 47kΩ, 100kΩ
- Power rating: 1 W at 70°C (single module), 0.5 W per module
- Mechanical travel: 300° ± 5°
- Operating torque: 8 Ncm ± 2 Ncm
- Sealing: IP64
- Electrical travel: 270° ± 10°
- Lifespan: 50,000 cycles
- Operating temperature: -55°C to +125°C
- Climatic category: 55/125/56
- End resistance: Approx. 20Ω
- Insulation resistance: >10^8 Ω
- Dielectric strength: 1500 V
- Dimensions: 12.5 mm module size, shaft diameter 6.35 mm
- Weight: 7-9 grams per module
- Switch modules available, sealed in IP60 housing, with various contact configurations.
Buy the Buy Vishay P11H High Torque Panel Potentiometer Part Number P11H1F0GHFW10102KA Online
Purchase the Vishay P11H high torque panel potentiometer online today and benefit from its robust design, customizable modules, and IP64 sealing. Engineered for demanding industrial applications, it offers high mechanical torque, a long lifespan of 50,000 cycles, and resistance options up to 100kΩ. Its compact, modular structure enables easy integration into various control systems. Trusted for quality and reliability, buying online ensures swift delivery, competitive pricing, and excellent technical support for your control and automation needs.
Buy Vishay P11H high torque panel potentiometer now and experience unmatched durability and precise control in challenging environments.
Frequently Asked Questions
Where can I buy Vishay P11H1F0GHFW10102KA?
You can click on the BUY or RFQ button to purchase P11H1F0GHFW10102KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11H1F0GHFW10102KA?
You can download the P11H1F0GHFW10102KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11H1F0GHFW10102KA?
Vishay
