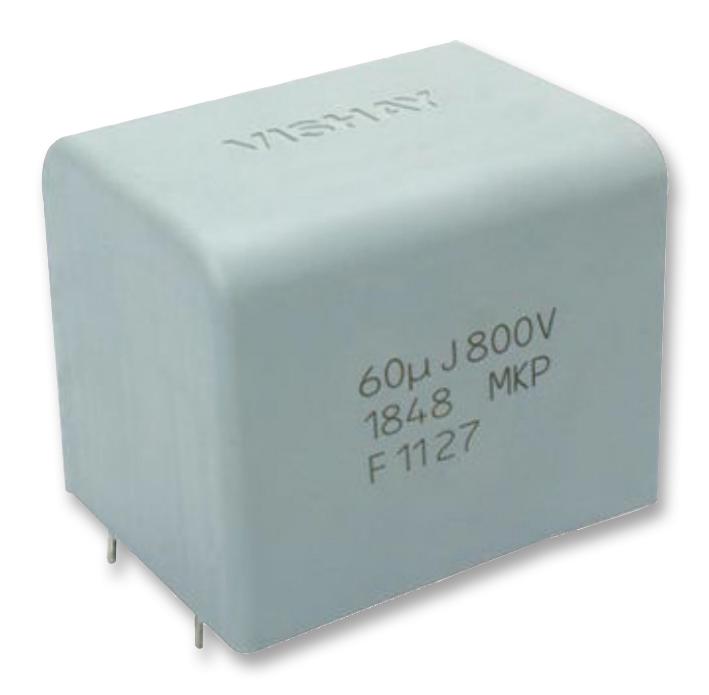

Vishay MKP1848615454P4 Metallized Polypropylene Capacitor
Metallized polypropylene film capacitor designed for high-performance DC filtering in power electronics, including HEV/EV systems, renewable energy inverters, motor drives, and power supplies. Features low ESR, high peak and RMS current capabilities, with ratings up to 400 µF and voltage up to 1200 V. Encased in a sealed plastic case with flame retardant resin, it offers excellent reliability, cooling, and shock resistance. Suitable for demanding industrial applications, it complies with RoHS standards and is qualified for automotive and high-temperature environments, ensuring long operational life and electrical stability.
Vishay MKP1848615454P4 Metallized Polypropylene Capacitor Specifications:
- Material: Polypropylene film, metallized dielectric
- Capacitance Range: 1 µF to 400 µF
- Capacitance Tolerance: 5%
- Rated Voltage: 450 V to 1200 V
- Maximum Voltage at 85°C: 450 V to 1200 V depending on model
- Maximum Temperature: 105°C, Rated at 85°C
- Climatic Testing: 40/105/56
- Dielectric: Polypropylene film
- Construction: Mono
- Encapsulation: Sealed plastic case with resin, flame retardant
- Terminals: Tinned wires/pins
- Self-Inductance: < 1nH per mm lead spacing
- Withstanding DC Voltage: 1.5 Un for 10 s, cut off current 10 mA
- Insulation Resistance: ≥ 10,000 s after 1 min at appropriate voltages
- Lifetime Expectancy: Up to several thousand hours at rated temperature
- Compliance: RoHS, AEC-Q200 qualified
Buy the Buy Vishay Metallized Polypropylene Film Capacitor Part Number MKP1848615454P4 Online
Order the Vishay metallized polypropylene film capacitor MKP1848615454P4 online today to ensure superior performance in your power electronic applications. With features like low ESR, high peak and RMS current ratings, and a sealed flame-retardant case, this capacitor offers excellent reliability for demanding environments such as HEV, EV, motor drives, and renewable energy inverters. RoHS compliant and qualified under automotive standards, it ensures long-term stability, safety, and compliance. Experience fast delivery and expert support when purchasing online now!
Buy Vishay MKP1848615454P4 now and experience unmatched reliability and performance with high peak current capabilities and long operational life.
Frequently Asked Questions
Where can I buy Vishay MKP1848615454P4?
You can click on the BUY or RFQ button to purchase MKP1848615454P4 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848615454P4?
You can download the MKP1848615454P4 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848615454P4?
Vishay
