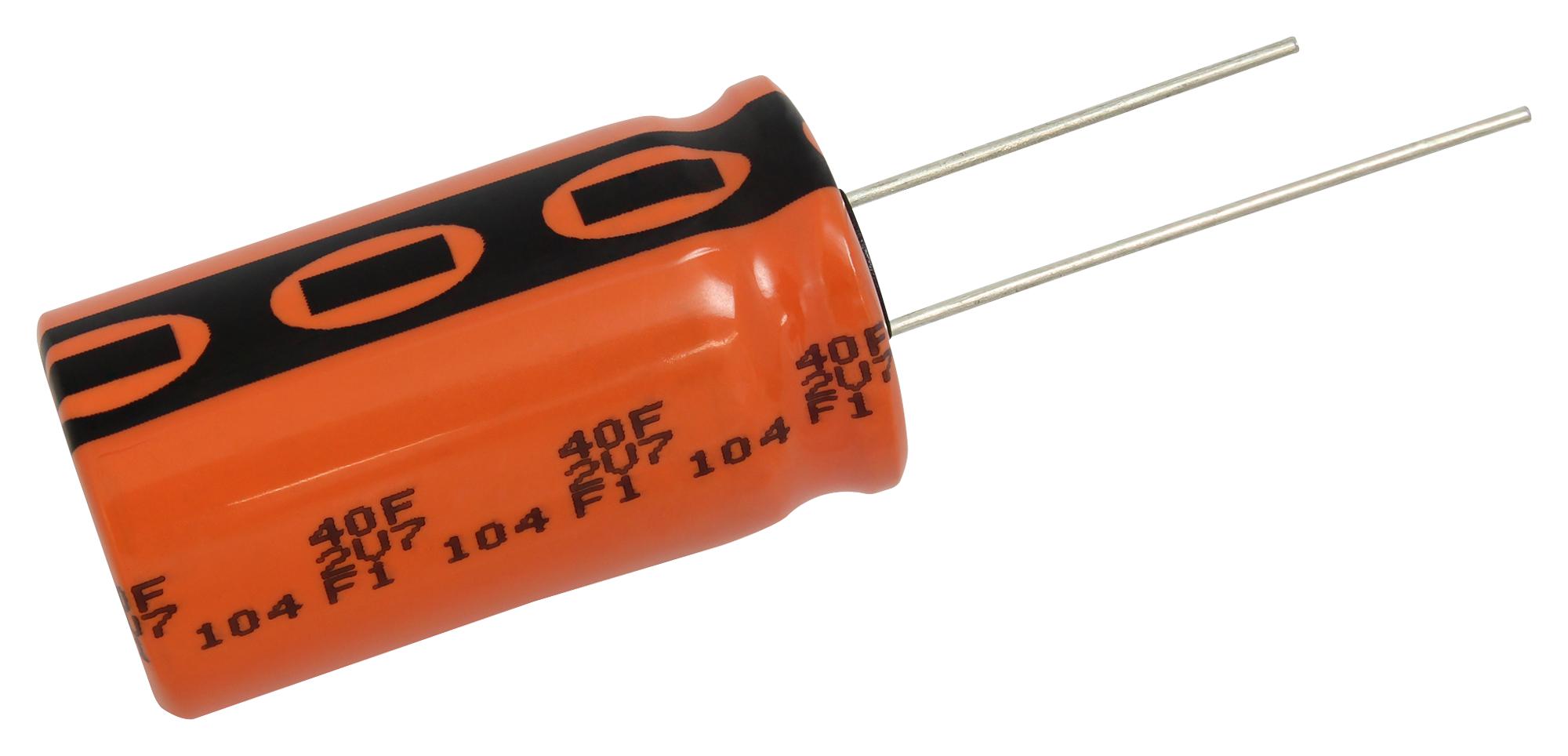

Vishay MAL223551013E3 Energy Storage Capacitor
The ruggedized energy storage capacitors are polarized and feature high capacity and energy density, suitable for power backup, burst power support, energy harvesting, micro UPS, and energy recovery applications. They operate up to 3 V with a category temperature range of -40°C to +85°C and can endure up to 1500 hours at 85°C, with a useful life exceeding 2000 hours at 85°C and over 10 years at 20°C. Designed for high humidity environments, these capacitors support rapid charge/discharge cycles over 500,000 cycles and are AEC-Q200 qualified for automotive reliability.
Vishay MAL223551013E3 Energy Storage Capacitor Specifications:
- Nominal case sizes: 10 x 20 mm, 10 x 25 mm, 10 x 30 mm, 12.5 x 20 mm, 12.5 x 25 mm, 12.5 x 30 mm, 12.5 x 40 mm, 16 x 20 mm, 16 x 25 mm, 18 x 20 mm, 18 x 25 mm, 16 x 31 mm, 18 x 31 mm, 18 x 35 mm, 18 x 40 mm
- Rated capacitance range: 5 F to 60 F
- Rated voltage: 3.0 V at 65°C/85°C
- Category temperature range: -40°C to +85°C
- Endurance test at 85°C: Up to 1500 hours
- Useful life at 85°C: Up to 2000 hours
- Useful life at 20°C: > 10 years
- Cycle life: > 500,000 cycles
- Material: Ruggedized for high humidity operation, RoHS compliant
- Max leakage current after 0.5h / 72h at ur: specified in datasheet
- Available in through-hole (radial) form, supplied taped or in trays
- Operating temperature: -40°C to +85°C
- Designed for rapid charge/discharge, maintenance-free, and high reliability
- Markings include capacitance, voltage, date code, factory code, logo, and polarity
- Supplied in various case sizes with specific dimensions and packaging quantities
- Qualified to automotive AEC-Q200 standards
Buy the Vishay Series ENYCAP: Energy Storage Capacitors 3V: MAL223551013E3
Order Vishay ENYCAP energy storage capacitors online today and experience reliable, high-capacity energy storage ideal for power backup, energy harvesting, and micro UPS applications. Designed to operate up to 3 V with excellent endurance, long shelf life, and ruggedized construction, these capacitors support rapid charging and discharging cycles. They are perfect for demanding environments, including high humidity, and are AEC-Q200 qualified for automotive use. Secure your supply of durable, maintenance-free energy components now for seamless integration into your projects.
Get Vishay ENYCAP energy storage capacitor today—built for high capacity, rugged reliability, and long-lasting energy support in demanding applications.
Frequently Asked Questions
Where can I buy Vishay MAL223551013E3?
You can click on the BUY or RFQ button to purchase MAL223551013E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL223551013E3?
You can download the MAL223551013E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL223551013E3?
Vishay
