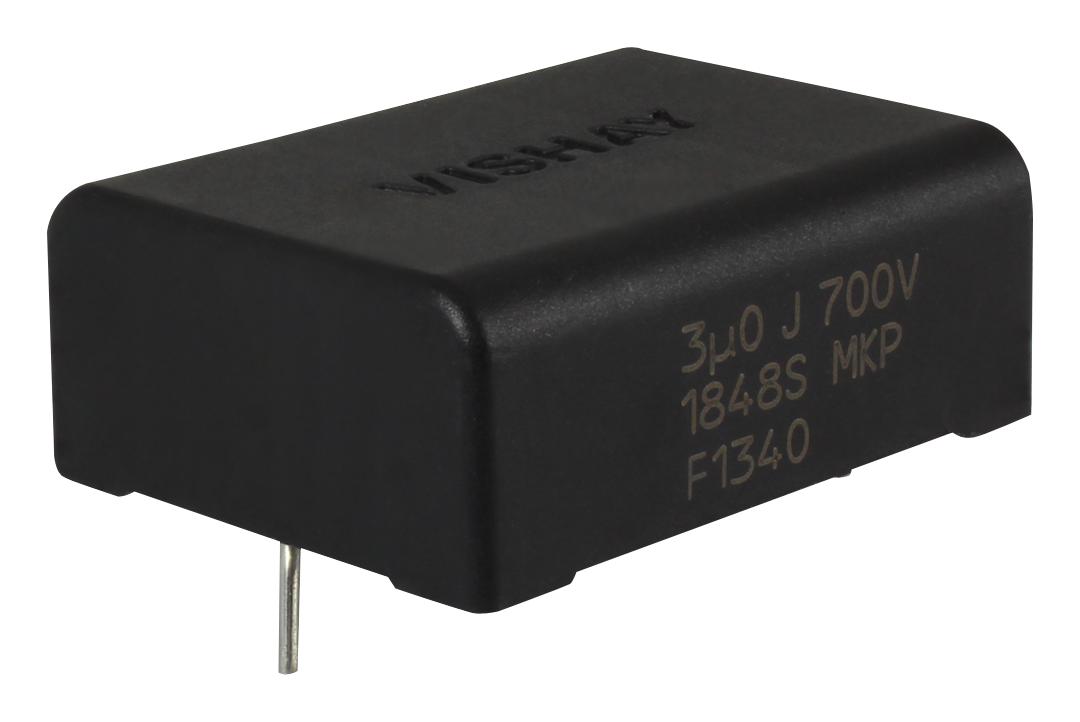

Vishay MKP1848S61010JY2B DC-Link Capacitor
The MKP1848S series DC-Link capacitors are metallized polypropylene film devices designed for high ripple current capability and low ESR. Suitable for PV inverters, LED street lighting, and EV battery chargers, these capacitors feature a slim profile, long lifespan up to 100,000 hours at 70°C, and operate within a temperature range of 105°C. They are encapsulated in flame-retardant resin cases with radial mounting, ensuring reliable performance in demanding applications, and conform to IEC standards for quality and durability.
Vishay MKP1848S61010JY2B DC-Link Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Metallized dielectric, mono construction, resin-encapsulated, flame retardant case
- Temperature Range: Up to 105°C
- Rated Voltage Range: 500 V to 1000 V
- Ripple Current Capability: High, low ESR and ESL
- Lifespan: Up to 100,000 hours at 70°C, RoHS compliant
- Mounting: Radial
- Capacitance Range: 2 UF to 100 UF
- Tolerance: ±5%
- Climatic Testing Class: 40/105/56
- Reference Standards: IEC 61071, IEC 60068
- Self Inductance: <1 nH per mm of lead spacing
- Maximum Case Temperature: 105°C with voltage derating
- Insulation Resistance: >10,000 s RC between leads at 1 min
- Peak-to-Peak Ripple Voltage: ≤ 0.2 x Unc
- Case Dimensions: Vary with model, typical height 12-57.5 mm, diameter 15-57.5 mm
- Terminal: Tinned wire
- Withstanding DC Voltage: 1.5 x Unc for 10 s
- Stand-off Pips: Designed to ensure good contact with PCB for vibration resistance
Buy the Vishay Series MKP DC-Link Capacitors: MKP1848S61010JY2B
Order the Vishay MKP1848S61010JY2B DC-Link capacitor online today and benefit from a high ripple current capacity, low ESR, and a long operational lifespan. Perfect for PV inverters, LED lighting, and EV battery chargers, this capacitor offers stable performance up to 105°C in a compact, flame-retardant resin encapsulated case. Its radial mounting ensures easy installation and reliable operation in demanding environments. Purchase now and enhance your electronic systems with this durable, high-quality component for sustainable and efficient performance.
Buy Vishay MKP1848S61010JY2B now and experience unmatched reliability and performance with long lifespan and low ESR for your high-current applications.
Frequently Asked Questions
Where can I buy Vishay MKP1848S61010JY2B?
You can click on the BUY or RFQ button to purchase MKP1848S61010JY2B from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP1848S61010JY2B?
You can download the MKP1848S61010JY2B datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP1848S61010JY2B?
Vishay
