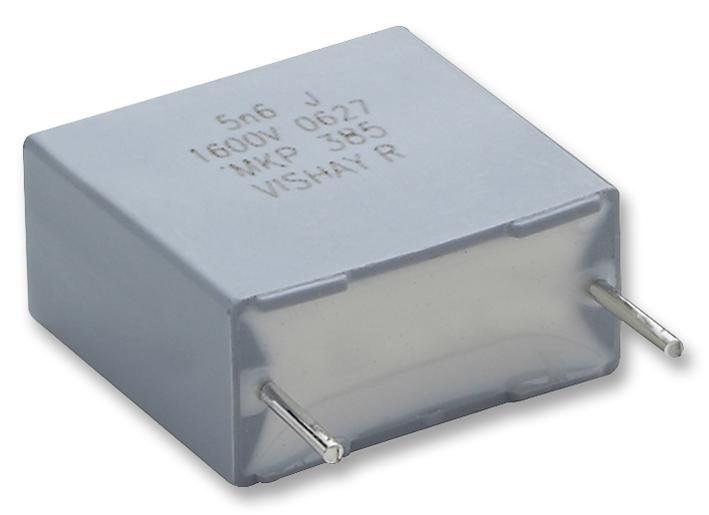

Vishay MKP385322100JFM2B0 Polypropylene Film Capacitor
The MKP385 series are AC and pulse metallized polypropylene film capacitors designed for high-frequency, pulse applications, and high-density packaging. They feature low contact resistance, RoHS compliance, and a bore size suitable for various mounting options. These capacitors exhibit a rated temperature of 85°C, maximum application temperature of 110°C, and are encapsulated in flame-retardant plastic and epoxy resin. Suitable for applications such as switch mode power supplies, motor controls, TV deflection circuits, and loudspeaker networks. The series supports voltage ratings up to 2500 V and capacitance ranges from 0.00047 pF to 82 µF.
Vishay MKP385322100JFM2B0 Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Rated Temperature: 85°C
- Maximum application temperature: 110°C
- Voltage Ratings: DC up to 2500 V, AC up to 900 V
- Capacitance Range: 0.00047 pF to 82 µF
- Capacitance Tolerance: 25%
- Encapsulation: Flame retardant plastic and epoxy resin
- Leads: Tinned wire
- Climatic Testing: 55/110/56 according to IEC 60068-1
- Construction: Mono and internal serial construction
- Lead Pitch: 5 mm to 52.5 mm
- Lead Diameter: 0.3 mm to 1 mm
- Compliance: RoHS, IEC 60384-17 standards
Buy the Vishay Series MKP385 Polypropylene Film Capacitor: MKP385322100JFM2B0
Order Vishay MKP385 polypropylene film capacitors online today to ensure high-quality, reliable performance in your power supply, motor control, or high-frequency circuit applications. These capacitors support voltage ratings up to 2500 V, feature low loss dielectric, and comply with RoHS standards. Their compact dimensions and flame-retardant encapsulation make them suitable for high-density packaging and various industrial uses. Easy to mount in printed circuit boards, they are ideal for demanding pulse, switching, and deflection applications. Purchase now for fast delivery and dependable operation.
Buy Vishay MKP385 now and experience unmatched reliability and high voltage performance in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy Vishay MKP385322100JFM2B0?
You can click on the BUY or RFQ button to purchase MKP385322100JFM2B0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP385322100JFM2B0?
You can download the MKP385322100JFM2B0 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP385322100JFM2B0?
Vishay
