Vishay MOC8101 Optocoupler Signal Isolator
The MOC8101 is a single-channel, 6-pin optocoupler featuring a gallium arsenide infrared emitting diode and a silicon planar phototransistor detector. It provides electrical isolation between two circuits, making it suitable for signal transmission. The device's base terminal is not connected, which enhances its immunity to common-mode interference. It is designed for applications requiring signal processing, with a maximum reverse voltage of 6V, and offers long-term stability.
Vishay MOC8101 Optocoupler Signal Isolator Specifications:
- Isolation test voltage, 5300 Vrms
- Input Reverse voltage, 6.0 V
- Forward current, 60 mA
- Power dissipation, 100 mW
- Collector-emitter breakdown voltage, 30 V
- Emitter-collector breakdown voltage, 7.0 V
- Collector current, 50 mA
- Storage temperature, -55°C to +150°C
- Operating temperature, -55°C to +100°C
- Junction temperature, 100°C
- Soldering temperature, 260°C for 10s

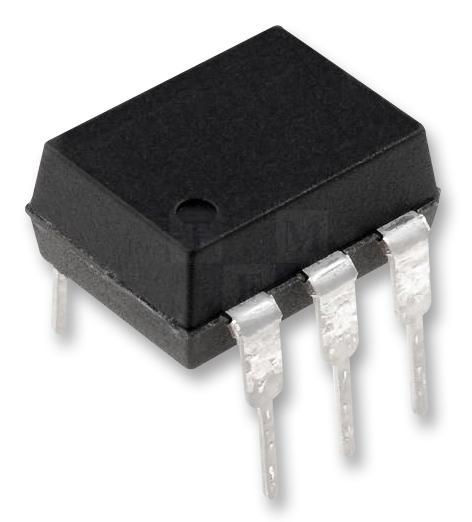

Buy the Vishay Series MOC8101 Optocoupler: MOC8101
Experience dependable electrical isolation with the Vishay Series MOC8101. Designed for signal transmission between electrically separated circuits, it ensures high immunity to interference and long-term stability. Perfect for industrial and electronic applications, this compact 6-pin device offers an isolation voltage of 5300 Vrms, making it ideal for safe, efficient operation in complex systems. Purchase online now to enhance your project's reliability and performance with Vishay's trusted optocouplers.
Order your Vishay Series MOC8101 optocoupler today and integrate reliable electrical isolation into your signal transmission projects.
Frequently Asked Questions
Where can I buy Vishay MOC8101?
You can click on the BUY or RFQ button to purchase MOC8101 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MOC8101?
You can download the MOC8101 datasheet or visit the Vishay website for support.
Who is the manufacturer of MOC8101?
Vishay
