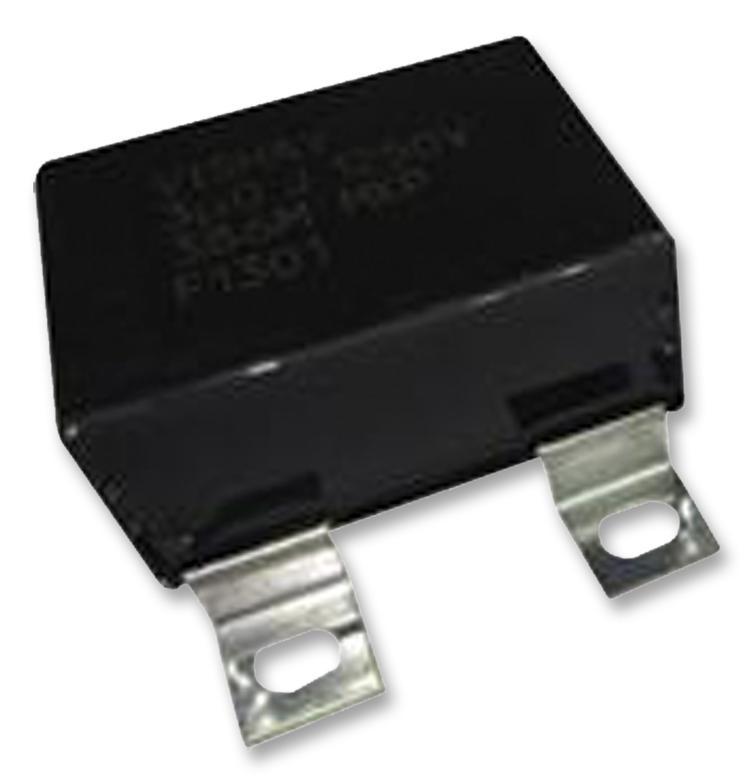

Vishay MKP386M515200YT4 Metallized Film Snubber Capacitor
Vishay MKP386M series metallized polypropylene film snubber capacitor is designed for high pulse strength and low inductance applications. Its construction reduces EMI by clamping voltage and ringing, making it suitable for photovoltaic inverters, motor drives, and frequency converters. The capacitor features flame retardant plastic case, epoxy sealing, and tinned copper terminals, with voltage ratings up to 2500 V. It offers excellent stability, long operational life exceeding 300,000 hours, and compliance with RoHS and halogen-free standards for reliable industrial performance.
Vishay MKP386M515200YT4 Metallized Film Snubber Capacitor Specifications:
- Dielectric: Polypropylene film
- Construction: Series construction with metallized film, flame retardant plastic case, epoxy sealed
- Voltage Rating: Up to 2500 V DC / AC
- Capacitance Range: 0.047 pF to 10 pF
- Capacitance Tolerance: ±5%, ±10%
- Rated Temperature: 85°C
- Maximum Case Temperature: 105°C
- Self Inductance: <0.7 nH per mm lead spacing
- Insulation Resistance: >100 GO at 500 V for C < 0.33 pF, >30,000 s for C > 0.33 pF
- Lifespan: >300,000 hours with failure rate <5 FIT at 40°C
- Climatic Testing: 55/105/56
- RoHS and Halogen-Free compliant
- Terminals: Tinned coated copper
- Dimensions vary depending on voltage and capacitance; see datasheet for detailed sizes
Buy the Buy Vishay MKP386M Snubber Part Number MKP386M515200YT4 Online
Order Vishay MKP386M515200YT4 online today and benefit from high pulse strength, low inductance, and long operational life exceeding 300,000 hours. Perfect for EMI reduction in industrial applications such as inverters, motor drives, and frequency converters. This reliable, RoHS-compliant metallized polypropylene film capacitor features flame retardant plastic casing, epoxy sealing, and tinned copper terminals for robust mounting. Ensure superior performance and compliance with international standards by purchasing this high-quality snubber capacitor directly from our online store.
Buy Vishay MKP386M515200YT4 now and experience unmatched reliability and performance with excellent pulse strength and EMI suppression capabilities.
Frequently Asked Questions
Where can I buy Vishay MKP386M515200YT4?
You can click on the BUY or RFQ button to purchase MKP386M515200YT4 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKP386M515200YT4?
You can download the MKP386M515200YT4 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKP386M515200YT4?
Vishay
