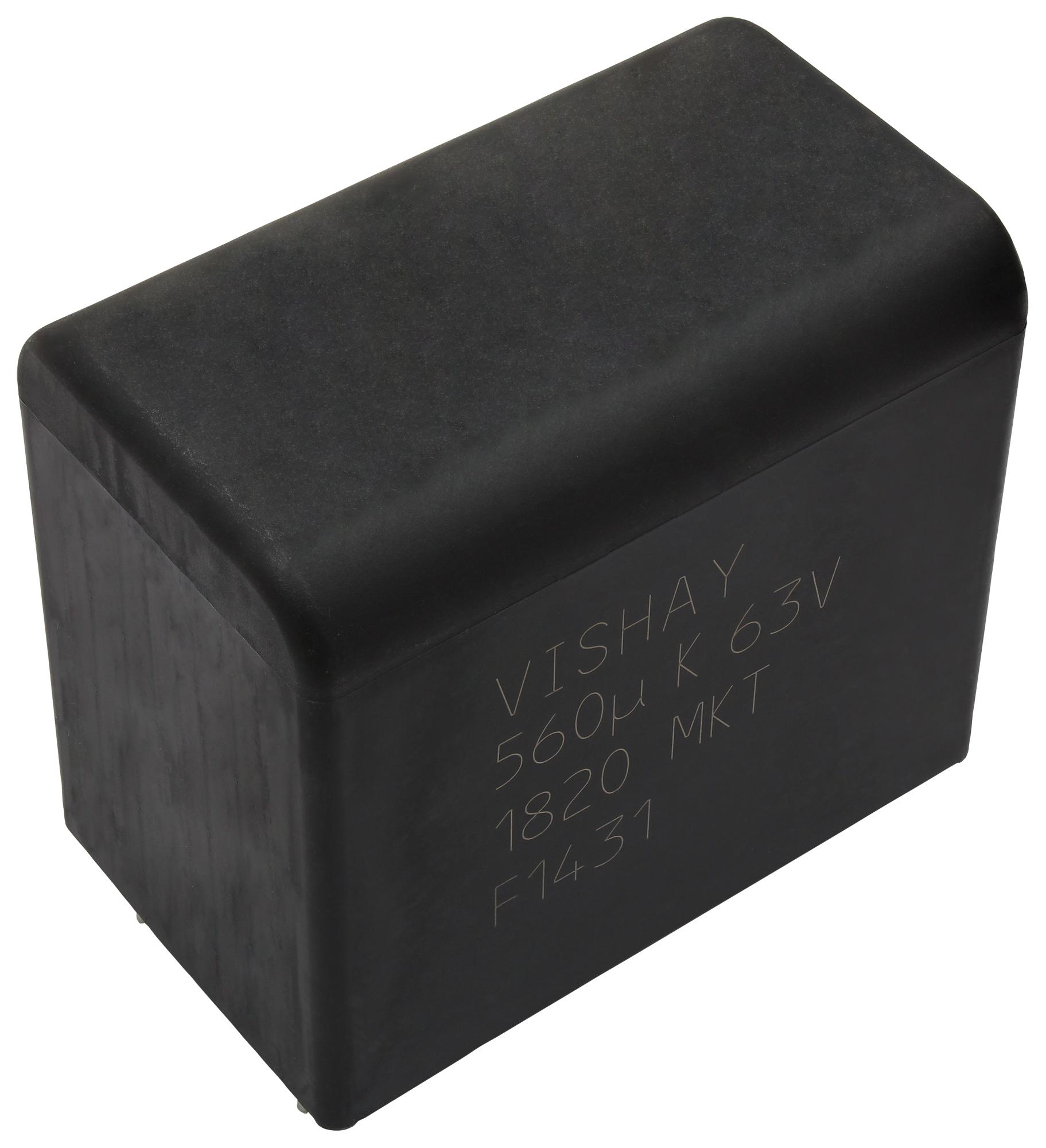

Vishay MKT1820422255 Polyester Film Capacitor
The product is a high-temperature, metallized polyester film capacitor designed for automotive and DC filtering applications. With a capacitance range from 1000 pF to 560 pF and voltage ratings up to 1000 V, it supports maximum operating temperatures of 125°C to 150°C. Encased in flame-retardant epoxy resin, it offers excellent climatic stability, low impedance, and reliable performance in demanding environments. Suitable for across-the-line and DC link filtering, it features precise dimensions, robust construction, and RoHS compliance for environmentally friendly manufacturing.
Vishay MKT1820422255 Polyester Film Capacitor Specifications:
- Capacitance range: 1000 pF to 560 pF
- Rated Voltage: Up to 1000 V DC
- Maximum Operating Temperature: 125°C to 150°C
- Dielectric: Metallized polyester film
- Encapsulation: Plastic case with epoxy resin seal, UL V-0 flame retardant
- Climatic Testing: IEC 60068-1 55/125/56
- Tolerance: +20%, +10%, +5%
- Leakage Current: Very low, suitable for high reliability applications
- Terminals: Tinned wire for robust connection
- Standards: IEC 60384-2, RoHS compliant
- Application: Automotive, DC filtering, low voltage DC link
- Construction: Series construction with 630 V and 1000 V series
- Features: AEC-Q200 qualified, high temperature capability, flame retardant, RoHS
- Dimensions: Varies with capacitance and voltage options, detailed in datasheet
Buy the Buy Vishay MKT1820 Part Number 1822255 Online
Order Vishay MKT1820 polyester film capacitor online today to benefit from excellent high-temperature stability, reliable performance, and environment-friendly RoHS compliance. Designed for automotive, DC filtering, and low voltage DC link applications, this capacitor offers precision capacitance, robust construction, and flame-retardant encapsulation. With a maximum voltage of 1000 V, it supports demanding environments with temperature ratings up to 150°C, ensuring durability and high reliability. Purchase now to enhance your electronic designs with a trusted, high-quality capacitor from Vishay.
Buy Vishay MKT1820 now and experience unmatched reliability and high-temperature performance for automotive and filtering applications.
Frequently Asked Questions
Where can I buy Vishay MKT1820422255?
You can click on the BUY or RFQ button to purchase MKT1820422255 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MKT1820422255?
You can download the MKT1820422255 datasheet or visit the Vishay website for support.
Who is the manufacturer of MKT1820422255?
Vishay
