Vishay VJ1206A101JXGAT5Z High-Voltage Ceramic Capacitor
These high-voltage multilayer ceramic chip capacitors offer excellent surface arc-over prevention, high capacitance in small sizes, and reliable noble metal electrode systems for applications like power supplies, DC/DC converters, and voltage multipliers. Designed for surface arc-over protection in high-voltage environments, they feature RoHS compliance, polymer terminations for increased board flex resistance, and wet build processes for durability. Operating within -55°C to +125°C, they handle voltages up to 2500V, with capacitance ranging from 10 pF to 8.2 nF, making them suitable for a wide range of electronic and lighting applications.
Vishay VJ1206A101JXGAT5Z High-Voltage Ceramic Capacitor Specifications:
- Operating Temperature: -55°C to +125°C
- Capacitance Range: 10 pF to 8.2 nF
- Voltage Range: 1000 Vp¢ to 2500 Vdc
- Temperature Coefficient of Capacitance: 0 ppm/°C + 30 ppm/°C
- Dissipation Factor: 0.1% at 1.0 Vam and 1 MHz for < 1000 pF; 0.1% at 1.0 Vam and 1 kHz for > 1000 pF
- Insulating Resistance: ≥ 100,000 MΩ at +25°C, ≥ 10,000 MΩ at +125°C
- Aging Rate: 0% per decade
- Dielectric Strength: 150% of rated voltage for 1000 Vdc rated parts, 120% for 2500 Vdc rated parts
- Physical Sizes: 0805, 1206, 1210, 1808, 1812, 2220, 2225
- Termination: RoHS-compliant Ni barrier, polymer, or AgPd terminations
- Certification: RoHS compliant, Halogen-Free
- Application: Power supplies, DC/DC converters, voltage multipliers, lighting, and AC applications
- Packaging: Tape and reel, 7-inch and 13-inch reels, quantities up to 10,000 units

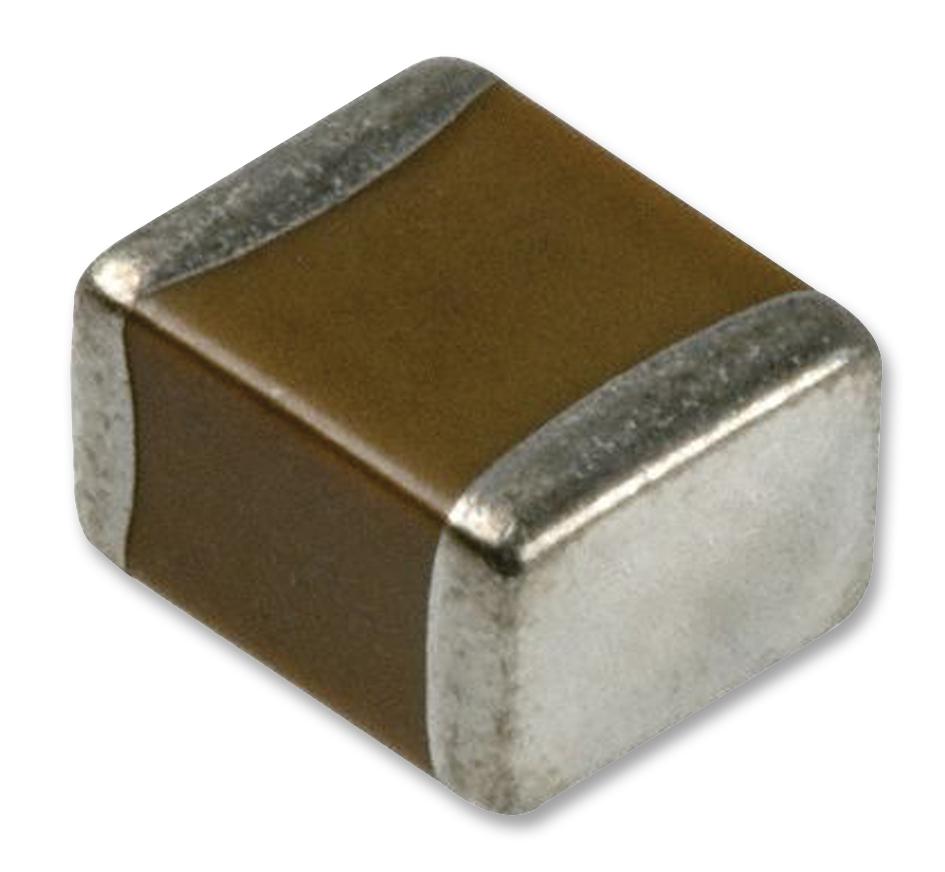

Buy the Buy Vishay VJ1206A101JXGAT5Z High-Voltage MLCC Chip Capacitor Part Number VJ1206A101JXGAT5Z Online
Purchase the Vishay VJ1206A101JXGAT5Z high-voltage ceramic capacitor online today and benefit from its arc-over protection, small form factor, and reliable performance in power supplies, DC/DC converters, and lighting applications. Designed to handle voltages up to 2500V with a broad capacitance range, this MLCC offers excellent temperature stability and durability, ensuring long-term operation in demanding environments. Easy ordering process and fast delivery make it the ideal choice for professional electronic projects and production lines.
Buy Vishay VJ1206A101JXGAT5Z now and experience unmatched reliability and high-voltage performance for your power supply and electronic needs.
Frequently Asked Questions
Where can I buy Vishay VJ1206A101JXGAT5Z?
You can click on the BUY or RFQ button to purchase VJ1206A101JXGAT5Z from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VJ1206A101JXGAT5Z?
You can download the VJ1206A101JXGAT5Z datasheet or visit the Vishay website for support.
Who is the manufacturer of VJ1206A101JXGAT5Z?
Vishay
