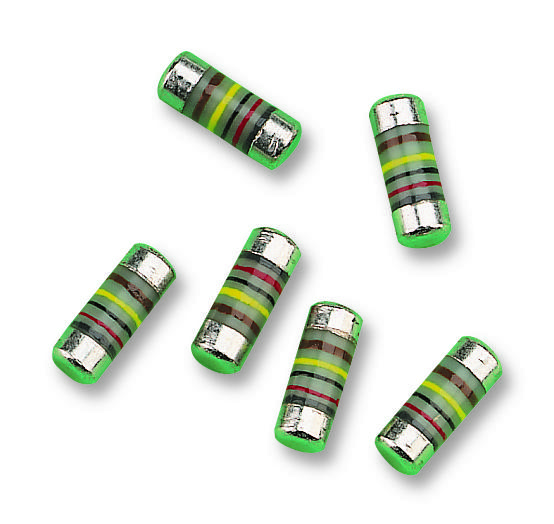

Vishay MMB02070C1002FB200 High-Reliability Thin Film MELF Resistor
The MMB 0207 professional thin film MELF resistor is designed for high-reliability applications in modern electronics, including automotive, telecommunication, and medical industries. It features advanced metal film technology, ensuring stability exceeding class 0.25 and excellent pulse load capability. Approved to EN 140401-803 and qualified under AEC-Q200, it also offers intrinsic sulfur resistance, suitable for demanding environments. Precise manufacturing, extensive testing, and robust construction make this resistor ideal for critical electronic systems requiring stability and reliability.
Vishay MMB02070C1002FB200 High-Reliability Thin Film MELF Resistor Specifications:
- Type: SMD thin film MELF resistor
- Size: 0207 (5.8 mm length, 2.2 mm width)
- Resistance range: 10 Q to 15 MO
- Resistance tolerance: ±2%, ±5%
- Temperature coefficient: + 100 ppm/K
- Rated dissipation: 1.0 W at 70 °C, 0.4 W at 125 °C
- Maximum operating voltage: 350 V
- Operating temperature: -55°C to 155°C
- Film temperature: Max 155°C
- Approval: EN 140401-803, AEC-Q200 qualified
- Failure rate: <0.1×10^-6/h
- Sulfur resistance: Intrinsic
- Construction: Metal film on high-grade ceramic, nickel-plated steel terminations
- Mechanical durability: Meets IEC standards, suitable for automatic SMD placement
- Environmental resistance: Protection against moisture, mechanical stress, and thermal cycling
Buy the Vishay Series MELF Resistor High-Reliability Part Number MMB02070C1002FB200
Secure your electronic projects today by ordering the high-reliability MMB 0207 thin film MELF resistor online. Built for demanding environments like automotive, medical, and telecommunication systems, this resistor offers exceptional stability, sulfur resistance, and pulse load capability. Manufactured with advanced metal film technology and approved under EN 140401-803 and AEC-Q200 standards, it guarantees long-term performance and dependability. Whether for precision circuitry or rugged industrial applications, purchasing this resistor online guarantees fast delivery and consistent quality for your mission-critical projects.
Order your Vishay Series MELF resistor MMB 0207 today and ensure the durability and reliability of your critical electronic systems with proven high stability.
Frequently Asked Questions
Where can I buy Vishay MMB02070C1002FB200?
You can click on the BUY or RFQ button to purchase MMB02070C1002FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB02070C1002FB200?
You can download the MMB02070C1002FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB02070C1002FB200?
Vishay
