Vishay MMB02070C1301FB200 Thin Film MELF Resistor
Vishay professional thin film MELF resistors designed for high reliability in automotive, telecommunications, and medical applications. Featuring advanced metal film technology, these resistors offer excellent stability, sulfur resistance, and pulse load capacity, compliant with EN 140401-803 and IECQ-CECC quality systems. Their precise manufacturing process involves depositing a homogeneous metal alloy film on ceramic substrates, laser trimming for accuracy, and protective coating for durability. Suitable for surface-mount technology, they withstand various environmental stresses, making them ideal for demanding electronics in modern industries.
Vishay MMB02070C1301FB200 Thin Film MELF Resistor Specifications:
- DIN sizes: 0102, 0204, 0207
- Resistance range: 0.22 Q to 15 MO
- Resistance tolerance: ±5%, ±2%, ±1%
- Temperature coefficient: +50 ppm/K, +25 ppm/K, +100 ppm/K
- Rated dissipation: 0.03W, 0.4W, 1.0W
- Operating voltage: 150 V, 200 V, 350 V
- Maximum film temperature: 155°C
- Operating temperature range: -55°C to 155°C
- Permissible voltage against ambient: 200 V, 300 V, 500 V
- Compliance: EN 140401-803, IECQ-CECC, AEC-Q200
- Resistance change at rated power: <0.1% to 1.0% over operating life
- Physical dimensions vary: Lengths approximately 2.2 mm to 5.8 mm, widths 1.1 mm to 2.2 mm, and masses from 8 mg to 80 mg
- Construction: Ceramic substrate, metal alloy film, nickel plated steel terminations
- Qualification: Suitable for reflow, wave soldering, and vapor phase processes
- Environmental resistance: Sulfur, temperature, humidity, and vibration resistant

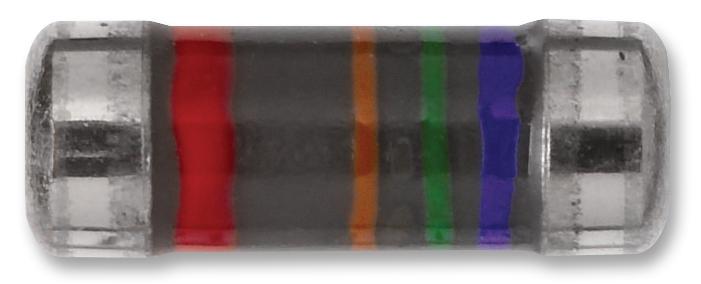

Buy the Vishay Series MELF Resistance: MMB0207-25 0.5 %
Purchase Vishay thin film MELF resistors online today to ensure high reliability and precise performance in critical electronic systems. These surface-mount resistors are designed with advanced metal film technology for excellent stability, pulse load capacity, and environmental resistance. Suitable for automotive, medical, and telecommunication equipment, they meet strict industry standards, offering durable performance over long operational lifespans. Available in various sizes and resistance ranges, order now for quick delivery and optimal reliability in your electronic projects.
Buy Vishay MMB0207-25 0.5% resistors now and experience unmatched reliability and performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay MMB02070C1301FB200?
You can click on the BUY or RFQ button to purchase MMB02070C1301FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB02070C1301FB200?
You can download the MMB02070C1301FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB02070C1301FB200?
Vishay
