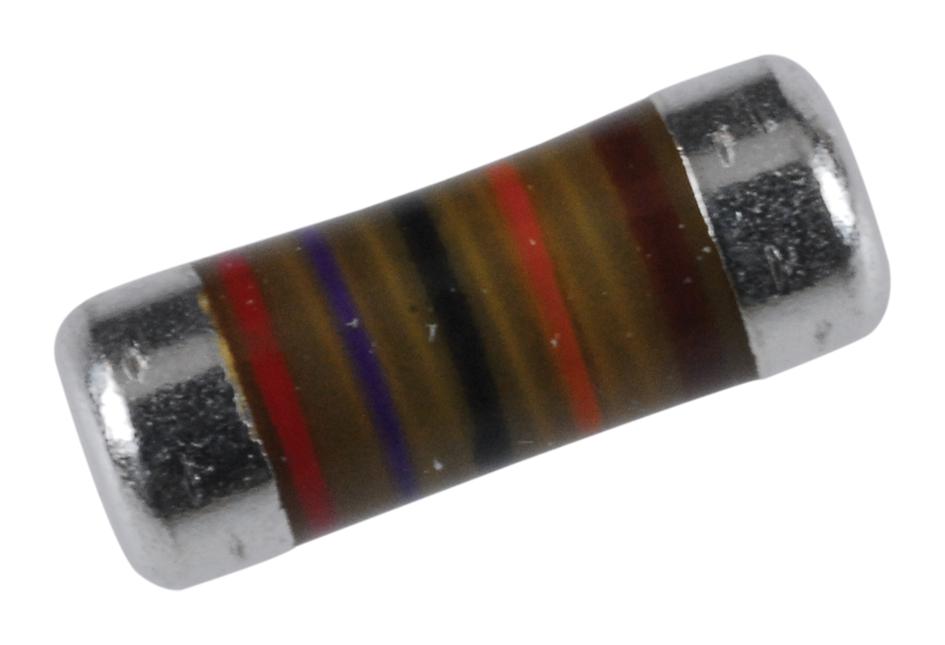

Vishay MMB02070C2703FB200 Thin Film MELF Resistor
The MMB 0207 professional thin film MELF resistor is designed for high-reliability applications in modern electronics. It features advanced metal film technology, ensuring excellent stability that surpasses 0.25%, and offers superb pulse load capability. Certified according to EN 140401-803 and AEC-Q200 qualified, this resistor provides intrinsic sulfur resistance, making it ideal for automotive, telecommunication, and medical equipment. Due to high market demand, lead times may be extended, and delivery dates can fluctuate. The product is exempt from discounts.
Vishay MMB02070C2703FB200 Thin Film MELF Resistor Specifications:
- DIN size: 0207
- Metric size code: RC6123M
- Resistance range: 0.19 to 15 MO
- Resistance tolerance: ±5%, 4%, 21%, 205%
- Temperature coefficient: +25 ppm/K
- Rated dissipation: 1.0W
- Operating voltage, Umax: 350 V
- Permissible film temperature, Tmax: 155 °C
- Operating temperature range: -55 °C to 155 °C
- Permissible voltage against ambient: 500 V
- Failure rate: <0.1x10^-5/h
- Maximum resistance change at P79: 0.1 Q to 15 MO
- Dimensions: Length 5.8 mm, width 2.2 mm, height 3.2 mm
- Material: Metal film on ceramic, nickel-plated steel terminations
- Approval: EN 140401-803, AEC-Q200
- Certifications: RoHS compliant
- Packaging: Blister tape or bulk case
Buy the Vishay 0207 – Reliable MELF Resistor for Industrial Applications
Secure your supply of high-performance MELF resistors by purchasing Vishay MMB 0207 online today. Designed for demanding industrial, automotive, telecommunication, and medical applications, this resistor delivers outstanding stability, high pulse load capability, and intrinsic sulfur resistance. Its advanced metal film technology ensures minimal resistance drift over time. Compatible with automatic soldering processes, it guarantees long-term reliability and exceptional electrical protection. Order now to benefit from fast delivery and enhance your electronic assembly with proven Vishay quality.
Buy Vishay MMB 0207 now and experience unmatched reliability and performance in high-reliability electronic applications.
