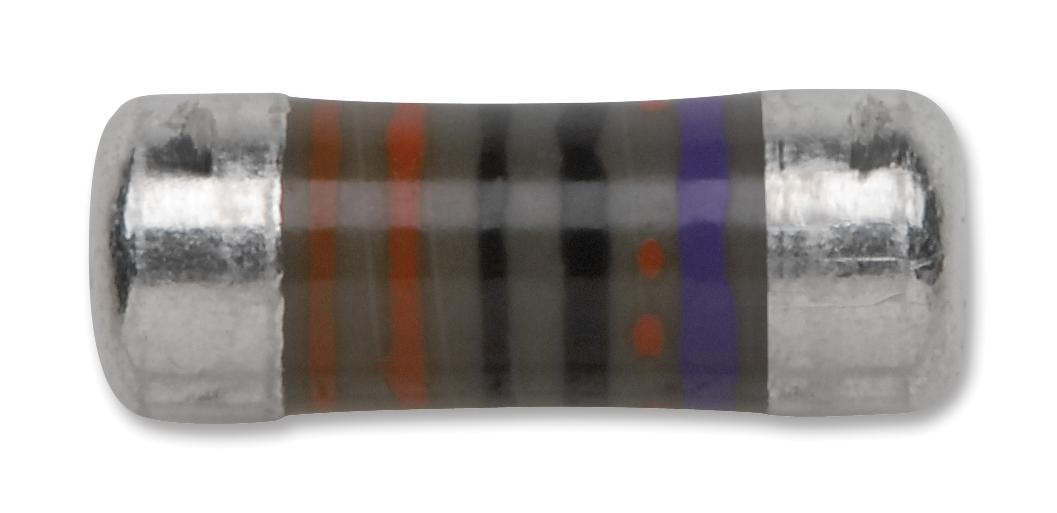

Vishay MMB0207MC1004FB200 High Voltage MELF Resistor
Professional high voltage thin film MELF resistors designed for reliability and stability in modern electronics, including lighting and medical equipment. Features include high operating voltage up to 1000 V, advanced metal film technology, RoHS compliance, and proven durability tested against various industrial standards. Suitable for automatic SMD assembly, these resistors offer excellent resistance stability over long periods and under harsh conditions, with options for different resistance ranges, temperature coefficients, and package sizes. They are ideal for demanding industrial and medical applications requiring precision and resilience.
Vishay MMB0207MC1004FB200 High Voltage MELF Resistor Specifications:
- Resistance range: 340 kΩ to 10 MΩ
- Resistance tolerance: ±1%
- Temperature coefficient: ±50 ppm/K
- Rated dissipation: 0.4W (MMA 0204 HV), 1.0W (MMB 0207 HV)
- Operating voltage: up to 1000 V AC/DC
- Operating temperature: -55°C to 155°C
- Permissible voltage against ambient: 300 V (Uins), 75 V continuous
- Material: Metal film on ceramic body with tin-plated nickel barrier terminations
- Dimensions: MMA 0204 HV: 3.6±0.2mm x 1.4±0.4mm; MMB 0207 HV: 5.8±0.15mm x 2.2±0.2mm
- Compliance: RoHS, Halogen-Free, IEC/EN standards
- Packaging: Anti-static blister tape, 8mm or 12mm tape widths, various reel sizes
Buy the Vishay MMB0207 HV – Reliable High Voltage MELF Resistors for Industrial Applications
Order Vishay MMB0207 HV high voltage thin film MELF resistors online today and secure top-tier reliability for your industrial and medical electronic projects. These precision resistors feature robust design, RoHS compliance, and high voltage capability up to 1000 V, making them ideal for demanding applications. Easily integrate these components into your automatic SMD assembly process with confidence in their stability and longevity. Take advantage of our fast shipping and professional customer service to ensure your project stays on schedule and within specifications.
Buy Vishay MMB0207 HV now and experience unmatched reliability and performance in high voltage electronic resistors.
Frequently Asked Questions
Where can I buy Vishay MMB0207MC1004FB200?
You can click on the BUY or RFQ button to purchase MMB0207MC1004FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB0207MC1004FB200?
You can download the MMB0207MC1004FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB0207MC1004FB200?
Vishay
