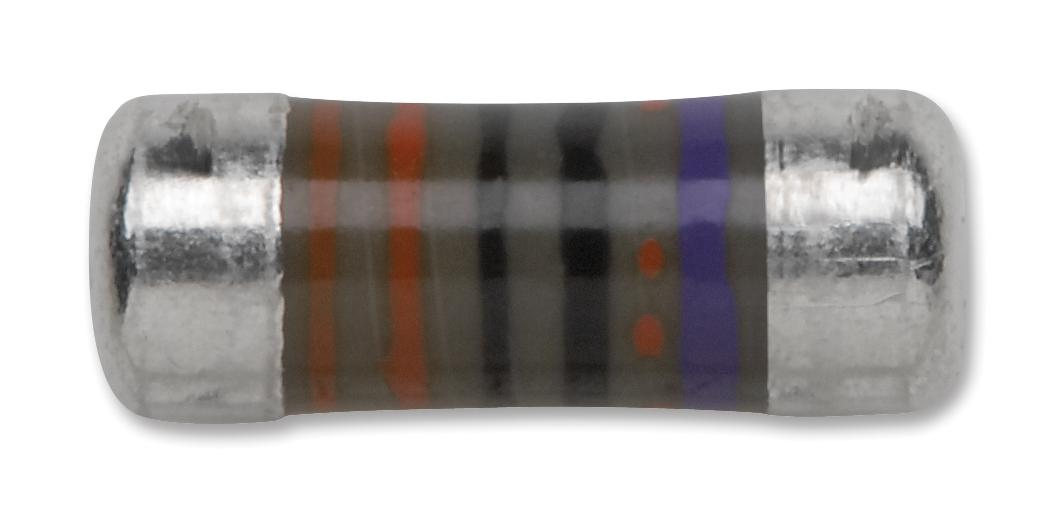

Vishay MMB0207MC4703FB200 High Voltage Thin Film Resistor
Vishay Beyschlag professional high voltage Thin Film MELF resistors are reliable, stable, and designed for modern electronics in lighting, medical, and industrial applications. They feature high operating voltages up to 1000 V, advanced metal film technology, RoHS compliance, and robust construction with nickel-plated steel terminations. These resistors undergo extensive testing for durability, resistance stability, and environmental resilience, making them suitable for automatic SMD assembly and demanding high-voltage environments, ensuring long-term performance and system reliability.
Vishay MMB0207MC4703FB200 High Voltage Thin Film Resistor Specifications:
- Resistance range: 340 kΩ to 10 MΩ
- Resistance tolerance: 1%
- Temperature coefficient: +50 ppm/K
- Rated dissipation: 0.4W for MMA 0204 HV, 1.0W for MMB 0207 HV
- Operating voltage: AC/DC up to 500 V for MMA 0204 HV, up to 1000 V for MMB 0207 HV
- Operating temperature: -55°C to 155°C
- Permissible insulation voltage: 300 V (MMA 0204 HV), 500 V (MMB 0207 HV)
- DIN sizes: 0204 and 0207
- Material: Metal film on ceramic body with nickel plated termination
- Dimensions: MMA 0204 HV - length 3.6 mm, width 1.4 mm; MMB 0207 HV - length 5.8 mm, width 2.2 mm
- Compliance: RoHS, halogen-free, IECQ approved
Buy the Vishay Series HV Resistive: MMB 0207 HV
Acquire the Vishay MMB 0207 HV high voltage resistor online today and ensure reliable performance in high-voltage applications. Designed with advanced metal film technology and tested extensively for stability, durability, and environmental resilience, this resistor is ideal for lighting, medical, and industrial systems. Its robust construction, operating voltage up to 1000 V, and RoHS compliance make it suitable for automatic SMD assembly and demanding circuitry. Invest in long-term system reliability by purchasing this high-performance resistor now.
Get Vishay MMB 0207 HV high voltage resistor today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Vishay MMB0207MC4703FB200?
You can click on the BUY or RFQ button to purchase MMB0207MC4703FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB0207MC4703FB200?
You can download the MMB0207MC4703FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB0207MC4703FB200?
Vishay
