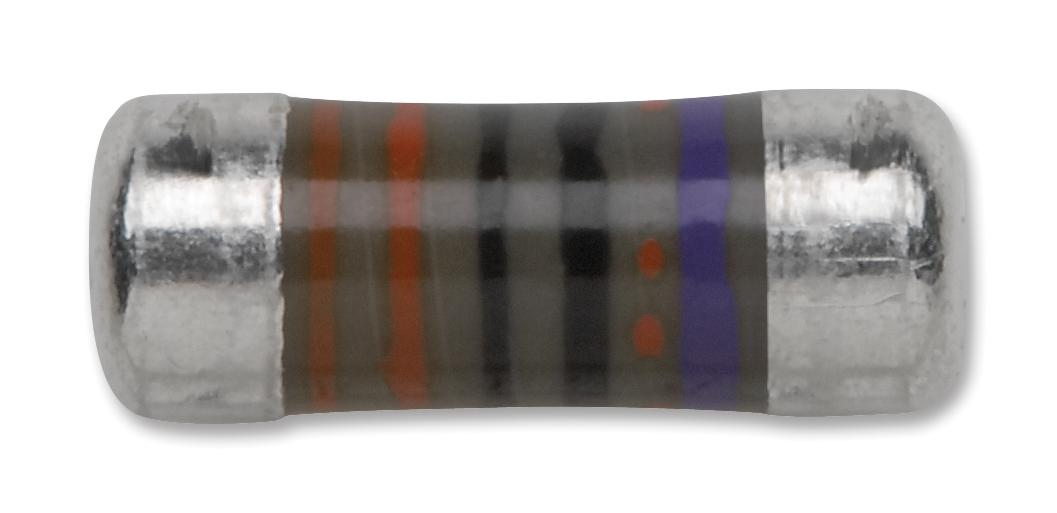

Vishay MMB0207MC8203FB200 High Voltage MELF Resistor
Vishay Beyschlag professional high-voltage thin film MELF resistors, the MMB 0207 HV model, are designed for use in demanding electronics applications such as lighting and medical equipment. These resistors feature high operating voltages up to 1000 V, precision resistance ranges from 340 kΩ to 10 MΩ, and temperature coefficients of +50 ppm/K. Made with advanced metal film technology, they offer excellent stability and reliability, encapsulated with protective coatings, and have RoHS compliance. Suitable for automated SMD assembly, they withstand high temperatures and electrical stress, ensuring long-term durability in critical environments.
Vishay MMB0207MC8203FB200 High Voltage MELF Resistor Specifications:
- Resistance Range: 340 kΩ to 10 MΩ
- Resistance Tolerance: ±1%
- Temperature Coefficient: +50 ppm/K
- Rated Dissipation: 1.0W
- Operating Voltage Umax: 1000 V AC/DC
- Operating Temperature Range: -55°C to 155°C
- Permissible Insulation Voltage: 500 V (Uins)
- Dimensions: Length 5.8 mm, Diameter 2.2 mm
- Material: Metal film on ceramic substrate
- High Voltage: Umax = 1000 V
- RoHS Compliant: Yes
- Encapsulation: Protective coating for electrical and mechanical protection
- Soldering: Suitable for wave, reflow, vapor phase
- Compliance: IEC 60115, EN 60115, IECQ 03-1
- Operational Lifetime: At 155°C, approximately 8000 hours
- Color Code: Four or five bands for resistance value and tolerance
Buy the Buy Vishay Beyschlag MMB 0207 HV Part Number MMB0207MC8203FB200 Online
Purchase the Vishay Beyschlag high voltage MELF resistor online to ensure reliable performance in demanding lighting and medical applications. Designed with precision metal film technology, this resistor supports up to 1000 V operation with resistance values ranging from 340 kΩ to 10 MΩ and tolerance of ±1%. It features excellent thermal stability, RoHS compliance, and is suitable for automatic SMD assembly. Order today to benefit from fast delivery and robust, high-quality components essential for professional electronic systems requiring long-term reliability in high-stress environments.
Get Vishay Beyschlag MMB 0207 HV today—built for high voltage stability and long-lasting durability in professional electronics.
Frequently Asked Questions
Where can I buy Vishay MMB0207MC8203FB200?
You can click on the BUY or RFQ button to purchase MMB0207MC8203FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB0207MC8203FB200?
You can download the MMB0207MC8203FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB0207MC8203FB200?
Vishay
