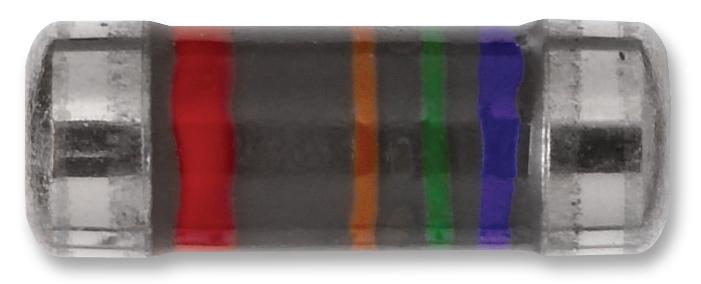

Vishay MMU01020C5109FB300 Professional MELF Resistor
The professional thin film MELF resistor is designed for high-reliability applications across automotive, telecommunication, and medical fields. Featuring advanced metal film technology, it offers excellent stability exceeding class 0.25, high pulse load capacity, intrinsic sulfur resistance, and compliance with EN 140401-803 standards. It is suitable for surface-mounted processes, withstands harsh environments, and maintains low resistance drift over long periods. The resistor's construction includes a homogeneous metal alloy film on a ceramic body, with nickel-plated steel terminations for durability and consistent performance in critical electronic circuits.
Vishay MMU01020C5109FB300 Professional MELF Resistor Specifications:
- DIN size: 0102, 0204, 0207
- Resistance range: 0.22 Q to 15 MO
- Resistance tolerance: ±5%, ±2%, ±1%, ±0.5%
- Temperature coefficient: +50 ppm/K, +25 ppm/K, +100 ppm/K
- Rated dissipation: 0.3W, 0.4W, 1.0W
- Operating voltage: 150 V, 200 V, 350 V
- Permissible film temperature: 155 °C
- Operating temperature range: -55 °C to 155 °C
- Maximum resistance change after 1000 hours at 70 °C: <0.15%
- Materials: Ceramic (Al2O3), metal alloy film, nickel-plated steel terminations
- Physical dimensions vary by size: Lengths approximately 2.2 mm, 3.6 mm, and 5.8 mm; diameters proportionally scaled
- Compliance: EN 140401-803, AEC-Q200 qualified, RoHS compliant
Buy the Vishay MMU01020C5109FB300 – Reliable MELF Resistor for Critical Electronics
Bring top-tier reliability to your electronic designs with Vishay's professional MELF resistors. Perfect for automotive, medical, and telecom sectors, these resistors offer exceptional stability, pulse load capacity, and sulfur resistance. They feature advanced metal film technology on a ceramic body with durable nickel-plated steel terminations, meeting strict industry standards including EN 140401-803. Suitable for surface-mount assembly, they maintain low resistance drift over extended operation, ensuring long-term performance. Choose Vishay MELF resistors for your high-reliability electronics today.
Order your Vishay Series MELF resistor today and ensure reliable, stable performance in your critical electronic applications.
Frequently Asked Questions
Where can I buy Vishay MMU01020C5109FB300?
You can click on the BUY or RFQ button to purchase MMU01020C5109FB300 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMU01020C5109FB300?
You can download the MMU01020C5109FB300 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMU01020C5109FB300?
Vishay
