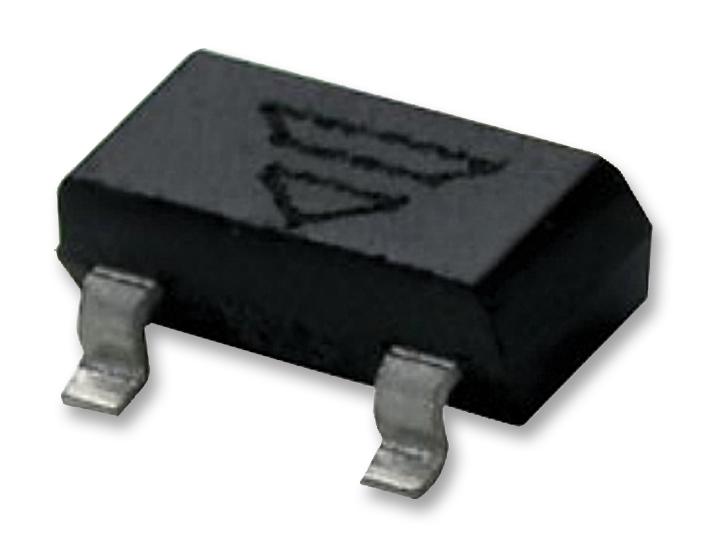

Vishay MPMA1002AT5 Matched Pair Resistor Network
Vishay Dale Thin Film MPMA series resistors are AEC-Q200 qualified surface-mount network components designed for high-precision automotive and industrial applications. These matched pair, molded resistors feature very tight ratio tolerances as low as + 0.05 % and tracking as low as + 2 ppm/°C. They offer excellent long-term stability with resistance ranges from 250 Ω to 50 kΩ, low noise, and a voltage coefficient below -30 dB. Suitable for high-reliability environments, the MPMA resistors are available in standard SOT-23 package, providing easy integration into complex circuits.
Vishay MPMA1002AT5 Matched Pair Resistor Network Specifications:
- Resistance Range: 250 Ω to 50 kΩ
- Resistance Tolerance: as tight as + 0.05 %
- Tracking: as low as + 2 ppm/°C
- TCR (Absolute): 25 ppm/°C
- TCR (Tracking): down to 2 ppm/°C
- Power Rating: 100 mW at +70 °C, 200 mW maximum at +70 °C when packaged
- Stability (Ratio): < 1 kΩ: + 0.35 %, > 1 kΩ: + 0.03 % over 1000 h at +125 °C
- Voltage Coefficient: 0.1 ppm/V
- Temperature Range: -55 °C to +155 °C
- Noise: < -30 dB
- Shelf Life Stability: AR/R + 0.01 % at 1 year at +25 °C
- Package: Standard SOT-23
- Compliance: RoHS, AEC-Q200 qualified, Halogen-free options available
Buy the VISHAY MPMA – Reliable Resistor Networks for Industrial Applications
Purchase Vishay Dale MPMA matched pair resistor networks online and ensure high stability and precise ratio matching for your automotive and industrial projects. These AEC-Q200 qualified surface-mount devices feature very low temperature coefficient tracking, excellent long-term resistance stability, and low noise, making them ideal for demanding environments requiring dependable performance. Available in standard SOT-23 packages, they provide easy integration and reliable operation, ensuring your designs meet the highest quality standards. Order now to benefit from quick delivery and technical support for your high-precision resistor needs.
Get Vishay MPMA resistors today—built for precision and long-lasting durability in automotive and industrial electronics.
Frequently Asked Questions
Where can I buy Vishay MPMA1002AT5?
You can click on the BUY or RFQ button to purchase MPMA1002AT5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MPMA1002AT5?
You can download the MPMA1002AT5 datasheet or visit the Vishay website for support.
Who is the manufacturer of MPMA1002AT5?
Vishay
