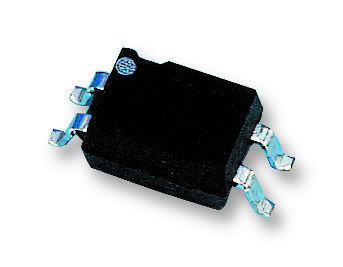

Vishay SFH62862T AC Isolated Phototransistor
The SFH6286-2T is a low-current AC input phototransistor optocoupler with high current transfer ratio, low coupling capacitance, and high insulation voltage. It features a gallium arsenide infrared LED coupled with a silicon planar phototransistor for efficient signal transmission between two electrically isolated circuits. Built for reinforced insulation, it complies with IEC 60950 standards for operation up to 400 VRMS. The device is end-stackable with 2.54mm lead spacing, offering excellent immunity to interference, good CTR linearity based on forward current, and low CTR degradation. Ideal for industrial controls, telecom, and consumer electronics requiring reliable isolation and signal transmission.
Vishay SFH62862T AC Isolated Phototransistor Specifications:
- Isolation Test Voltage: 5300 Vms
- Collector Emitter Voltage: 55 V
- Emitter Collector Voltage: 7 V
- Collector Current: 50 mA
- Surge Forward Current: 25 A
- Power Dissipation (Output): 150 mW
- Power Dissipation (Input): 76 mW
- Creepage and Clearance Distance: 27 mm
- Insulation Thickness: 0.4 mm
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Qualification: UL1577, IEC 60747-5-5
- Package Options: DIP-4, SMD-4
- CTR Range: 63% to 500% depending on model
- Switching Times: Typical turn-on 6 ps, turn-off 5.5 μs
- Insulation Resistance: 210 MΩ at 500 V
- Soldering Temperature: Max 260°C for 10s
Buy the Vishay Series SFH6286 AC Input Phototransistor Optocoupler: SFH62862T
Purchase the Vishay SFH62862T online now to ensure your industrial or communication systems benefit from high insulation voltage, excellent CTR linearity, and low capacitance coupling. This optocoupler is ideal for signal transmission between electrically isolated circuits, offering reinforced insulation up to 400 VRMS. Its robust design includes a gallium arsenide infrared LED and silicon phototransistor, providing reliable performance, high immunity to interference, and long-lasting durability. Order today for fast delivery and seamless integration into your equipment.
Get Vishay SFH62862T today—designed for high insulation and reliable signal isolation in industrial and telecom systems.
Frequently Asked Questions
Where can I buy Vishay SFH62862T?
You can click on the BUY or RFQ button to purchase SFH62862T from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SFH62862T?
You can download the SFH62862T datasheet or visit the Vishay website for support.
Who is the manufacturer of SFH62862T?
Vishay
