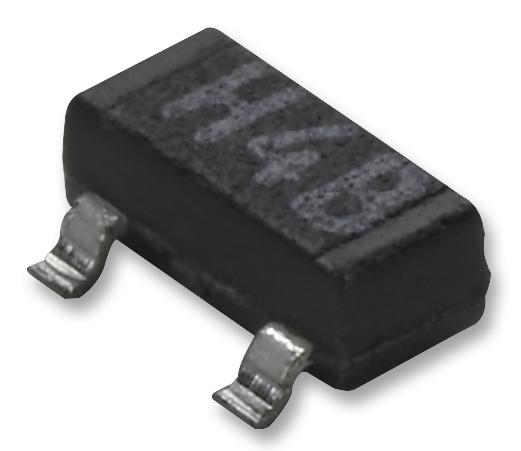

Vishay MPT42002AT1 Resistor Network
The Vishay Dale Thin Film MP series resistor network offers ultra-small size, tight ratio tolerances as low as 0.05%, and excellent stability for surface mount applications. Designed with passivated nichrome resistance elements, it provides tracking of +2 ppm/°C and long-term ratio stability AR = 0.015 %. Available in 3 or 4 lead packages with resistance values from 100 Ω to 50 kΩ, it is RoHS and halogen-free, suitable for precise electronic circuits requiring high reliability and minimal drift over temperature and time.
Vishay MPT42002AT1 Resistor Network Specifications:
- Resistance Range: 100 Ω to 50 kΩ
- Tolerance: ±0.05% (ratio), ±0.10% to +1.0% (absolute)
- Temperature Coefficient: Tracking 2 ppm/°C, Absolute ±25 ppm/°C
- Power Rating: Resistor 0.075 W, Package 0.150 W max at +70°C
- Stability: Ratio AR = 0.015% (2000 hours at +70°C), Absolute AR = 0.05% (2000 hours at +70°C)
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Material: Passivated nichrome resistive element with molded epoxy body
- Terminals: Copper alloy, tin or lead-free plating options
- Compliance: RoHS compliant, halogen-free according to IEC 61249-2-21
Buy the Buy Vishay MP Series Resistor Network Part Number MPT42002AT1 Online
Purchase the Vishay MP42002AT1 resistor network online today for reliable, high-precision surface mount applications. Designed with ultra-tight ratio tolerances of 0.05% and tracking of +2 ppm/°C, this small-sized device offers exceptional long-term stability and excellent electrical performance. Its resistors are passivated nichrome with molded epoxy bodies, available in 3 or 4 lead configurations. With RoHS compliance and halogen-free construction, it is ideal for modern electronic circuits demanding durability, accuracy, and environmental responsibility. Order now to ensure your project benefits from unmatched quality and stability.
Get Vishay MP42002AT1 today—built for high precision and long-lasting stability in surface mount resistor networks.
Frequently Asked Questions
Where can I buy Vishay MPT42002AT1?
You can click on the BUY or RFQ button to purchase MPT42002AT1 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MPT42002AT1?
You can download the MPT42002AT1 datasheet or visit the Vishay website for support.
Who is the manufacturer of MPT42002AT1?
Vishay
