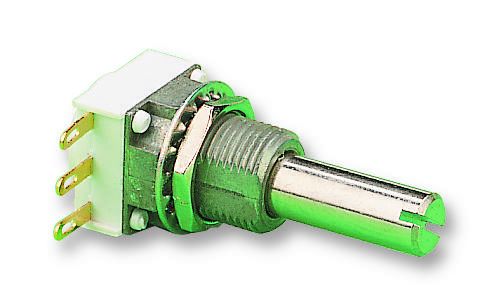

Vishay P11S1V0FLSY00501KA Modular Panel Potentiometer
The product is a versatile 12.5 mm modular panel potentiometer available in cermet or conductive plastic elements. Designed for industrial, military, and aerospace applications, it features single turn control with up to seven modules and multiple shaft options, including concentric shafts and custom designs. It offers high sealing IP64, robust construction, and various configurations for switch modules, detents, neutral modules, and linearity options. Suitable for precise control in complex electronic systems, with resistance ranges up to 1 MΩ and power ratings of 0.25 W to 1 W at 70°C, ensuring durability and stability under demanding conditions.
Vishay P11S1V0FLSY00501KA Modular Panel Potentiometer Specifications:
- Physical Size: 12.5 mm square
- Electrical Travel: 270° + 10°
- Resistance Range: 1kΩ to 1MΩ (linear and non-linear tapers)
- Power Rating: Up to 1 W at 70°C
- Taper Tolerance: ±20%, customizable on request
- Electrical Resistance: Linear taper 1kΩ to 1MΩ, Non-linear 470Ω to 2.2MΩ
- Temperature Range: -55°C to +125°C
- Sealing: IP64 (panel mounted)
- Mechanical Travel: 300° + 5°
- Mechanical End Stop Torque: 35 to 80 Ncm depending on shaft diameter
- Endurance: 50,000 cycles
- Environmental Standards: RoHS, compliant with CECC 41000 and IEC 60393-1
- Electrical Connectors: Solder lugs, PCB pins, or custom leads
- Configurations: Single, dual, or multiple modules, switch, detent, neutral options
- Customization: Shaft type, linearity, interlinearity, and tapers available on request
Buy the VISHAY P11S – Reliable Potentiometer for Industrial Applications
Enhance your electronic control system with the VISHAY P11S modular panel potentiometer. Its compact 12.5 mm size, robust IP64 sealing, and diverse configurations ensure high durability and precision in demanding environments. Perfect for industrial, military, and aerospace applications, it offers resistance from 1kΩ up to 1MΩ, with power ratings up to 1 W at 70°C. Easy to install and customize with switch, detent, and neutral modules, this potentiometer guarantees consistent performance, making it an essential component for complex engineering projects.
Buy VISHAY P11S now and experience unmatched reliability and performance in precise electronic control systems.
Frequently Asked Questions
Where can I buy Vishay P11S1V0FLSY00501KA?
You can click on the BUY or RFQ button to purchase P11S1V0FLSY00501KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1V0FLSY00501KA?
You can download the P11S1V0FLSY00501KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1V0FLSY00501KA?
Vishay
