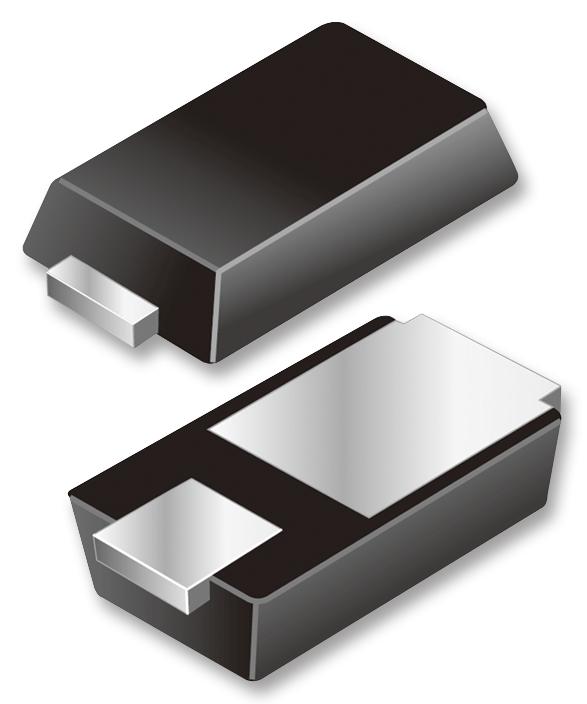

Vishay MSQ1PGM3H High-Current Surface Mount Rectifier
The Vishay MSQ1PG and MSQ1PJ are high-performance, surface-mount rectifiers designed for general purpose, polarity protection, and rail-to-rail protection in automotive and consumer electronics. These devices feature a low profile height of approximately 0.65 mm, making them ideal for automated placement. They have a maximum repetitive peak reverse voltage of 400 V and 600 V, respectively, with an average forward rectified current of 1.0A. Their rugged construction includes matte tin-plated leads, UL 94 V-0 flammability rating, and meet RoHS and AEC-Q101 standards for durability and environmental compliance.
Vishay MSQ1PGM3H High-Current Surface Mount Rectifier Specifications:
- Package: MicroSMP (DO-219AD)
- Maximum Repetitive Peak Reverse Voltage: 400 V for MSQ1PG, 600 V for MSQ1PJ
- Average Forward Rectified Current: 1.0 A
- Peak Forward Surge Current: 15 A
- Operating Junction and Storage Temperature Range: -55°C to +175°C
- Maximum Forward Voltage at 1A: 0.99 V typical
- Maximum Reverse Leakage Current: 50 μA at rated voltage and 25°C
- Thermal Resistance Junction to Ambient: 30°C/W
- Material: Halogen-free, RoHS-compliant, AEC-Q101 qualified options available
- Terminals: Matte tin-plated leads, solderable per J-STD-002
- Mechanical: MicroSMP case, with cathode band for polarity, height approximately 0.65 mm
- ESD Immunity: >8kV contact according to human body model
- Compliance: RoHS, UL 94 V-0, JESD 22B102, JESD 201
- Suitable applications include general purpose, polarity, and rail-to-rail protection in automotive and consumer electronics
- Peak forward surge current: 15A, rated reverse voltage: 400-600V
- Reverse recovery time: Typical 650 ns at 25°C
- Thermal performance tested with PCB copper pad area of 6.0x6.0 mm
