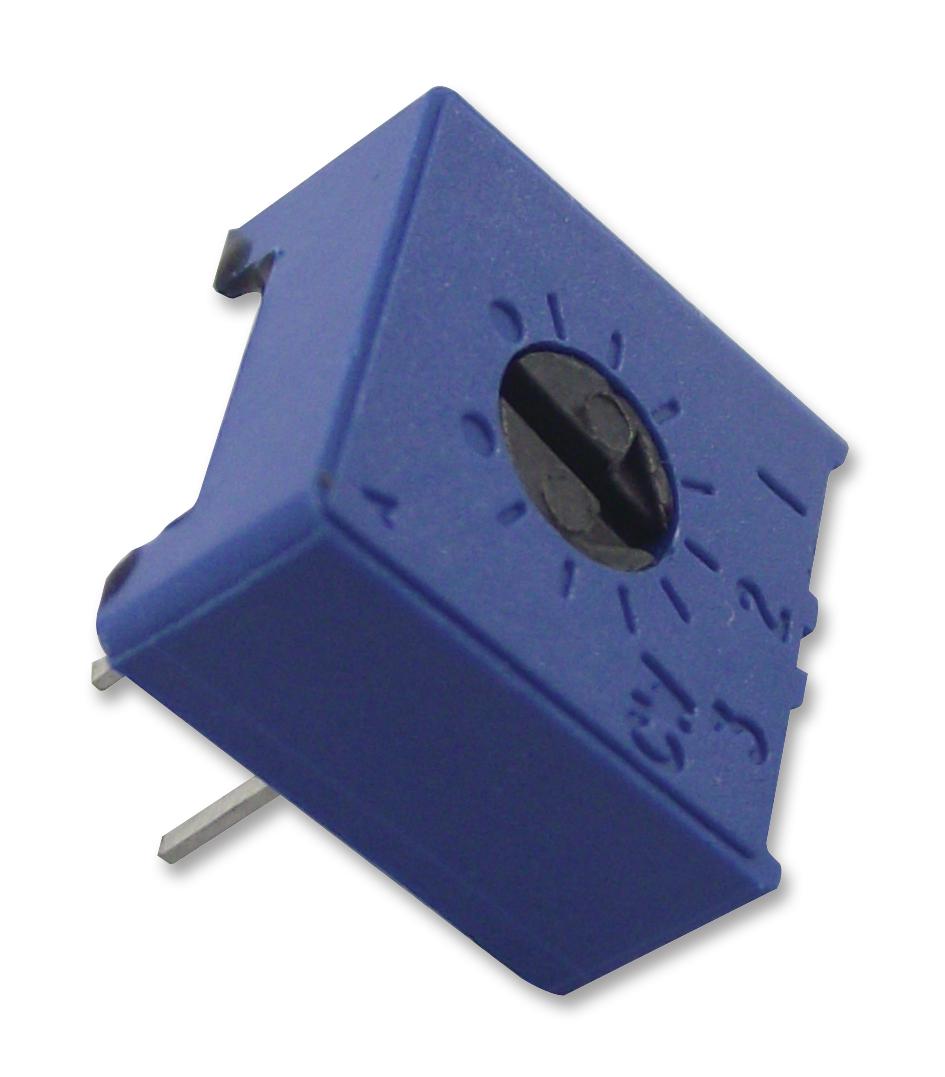

Vishay M63M101KB40 precision trimmer
The Vishay Spectrol Model 63 trimmer is a precision single-turn cermet potentiometer designed for fine adjustment in electronic circuits. It features a 3/8" square housing with arrow markings for repeatable settings, and an 'O' ring seal for solvent and aqueous washing. The device offers multiple pin configurations for top or side adjustment, with a resistance range of 100Ω to 2MΩ and ±10% tolerance. It complies with RoHS standards, has a solid end stop, multi-finger wiper for better contact, and is suitable for applications requiring reliable, high-precision resistance adjustments in industrial electronic equipment.
Vishay M63M101KB40 precision trimmer Specifications:
- Effective travel: 270° nominal
- Resistance range: 100Ω to 2MΩ
- Resistance tolerance: ±10%
- End resistance: 2Ω or 1% (whichever is greater)
- Temperature coefficient: +100 ppm/°C
- Power rating: 0.5 W at +70°C, derated to 0 W at 125°C
- Maximum voltage: 250 V
- Dielectric withstand voltage: 1000 Vac at sea level
- Insulation resistance: min 1000 MΩ at 600 V
- Contact resistance variation: ≤1% or ≤1Ω
- Mechanical travel: 300° ±50
- Starting torque: ≤35 mNm
- Weight: up to 0.85 g
- Sealing: IP64
- Climatic category: 56/125/21
- Temperature range: -55°C to +125°C
- Terminals: Pure Sn (code 3)
Buy the VISHAY M63M101KB40 – Reliable Precision Trimmer for Industrial Applications
Order the Vishay Spectrol precision trimmer online today to ensure your electronic projects and industrial equipment benefit from accurate, durable resistance adjustments. This high-quality cermet potentiometer features a robust 3/8" square housing, multiple pin configurations for flexible mounting, and a resistance range from 100Ω to 2MΩ with tight ±10% tolerance. Its sealed IP64 design and temperature range of -55°C to +125°C make it ideal for demanding industrial environments. Enhance your circuit calibration with this reliable, easy-to-adjust device available for quick online purchase.
Buy Vishay M63M101KB40 now and experience unmatched reliability and precision in your electronic adjustments.
Frequently Asked Questions
Where can I buy Vishay M63M101KB40?
You can click on the BUY or RFQ button to purchase M63M101KB40 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part M63M101KB40?
You can download the M63M101KB40 datasheet or visit the Vishay website for support.
Who is the manufacturer of M63M101KB40?
Vishay
