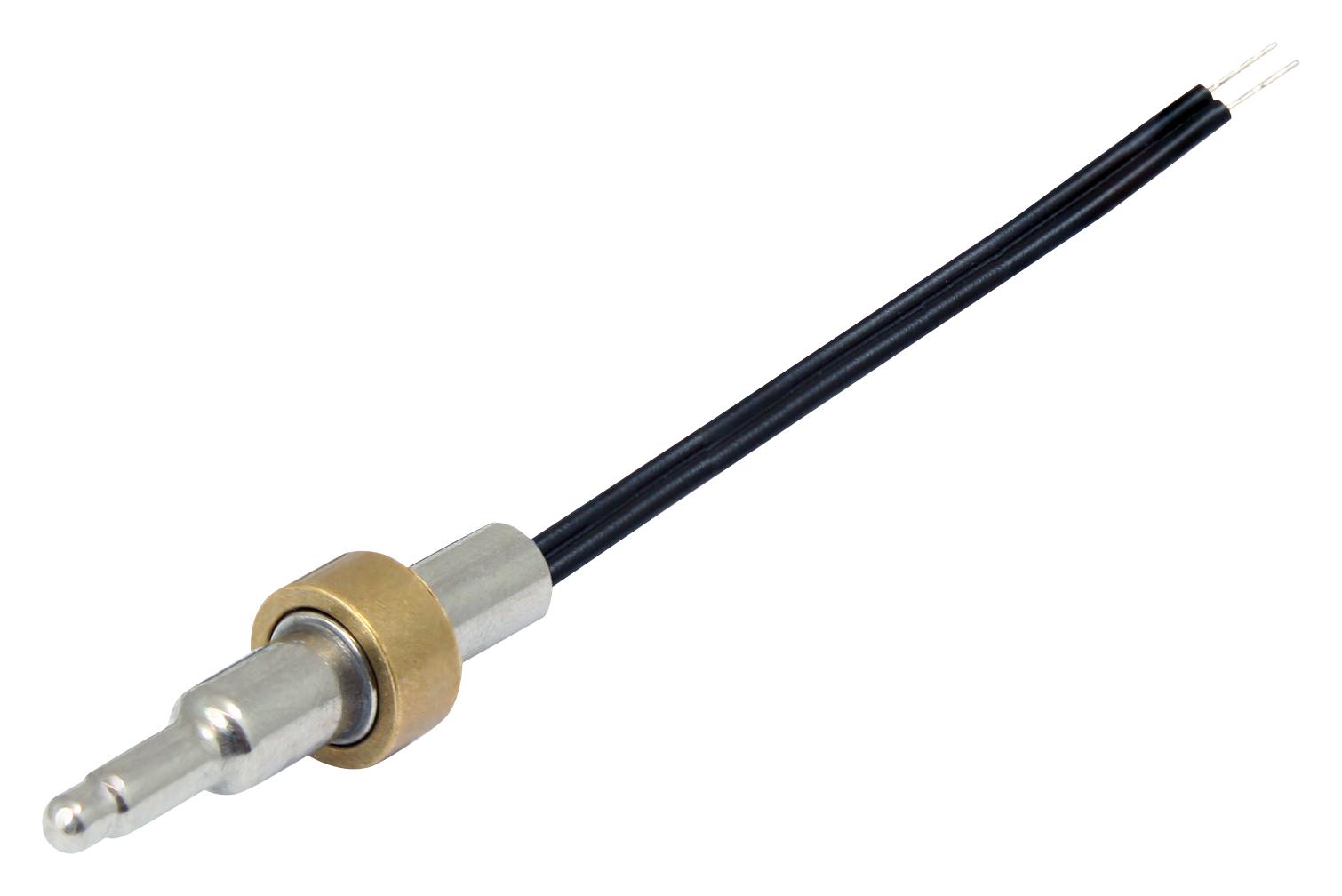

Vishay NTCAIMME3C90373 Immersion Thermistor
The NTCAIMME3C90373 miniature insulated NTC thermistor is designed for immersion in liquids like water and oils. Encased in a durable stainless steel housing with a brass collar for sealed mounting, it features twin PVC-insulated 30 AWG lead wires potted with epoxy resin. Its small tip and insulated wire enable fast response times, making it ideal for temperature measurement, sensing, and control in applications such as HVAC, industrial systems, consumer appliances, and renewable energy solutions. Not suitable for corrosive or high-acid liquids, with contact areas below the brass collar for secure installation.
Vishay NTCAIMME3C90373 Immersion Thermistor Specifications:
- Resistance value at 25 °C: 10K
- Tolerance on R at 25°C: 3%
- Maximum Temp: -25°C to +105°C
- Resistance Ratio: 12.990 (at -25°C), 1.000 (at 25°C)
- Response Time: 16 s (air to water 85°C)
- Housing Material: Stainless steel SS304
- Lead Wire: Twin PVC insulated AWG#30, 105 °C, 300 V rated
- Sealing: Sealed with O-ring and screw mounting
- Dissipation Factor: 5.6 mW for water, 28 mW in still air
- Insulation Resistance: >100 MΩ at 500 V
- Power Dissipation: Max 100 mW at 55°C
- Size: Tip diameter approximately 2.5 mm, overall length variable
- Temperature Coefficient: Approximately -4.39% at 25°C
Buy the Buy Vishay NTC Thermistor Part Number NTCAIMME3C90373 Online
Purchase your Vishay immersion thermistor NTCAIMME3C90373 online today to ensure accurate temperature measurement in water, oils, and other fluids. Its sealed stainless steel housing with brass collar guarantees a secure, leak-proof installation ideal for HVAC, industrial, and consumer applications. The twin PVC insulated lead wires provide durability and flexibility, while the epoxy potting offers excellent environmental protection. This fast-response temperature sensor is perfect for permanent liquid contact, ensuring precise control in boilers, heating, and renewable energy systems, delivering dependable performance in demanding environments.
Order your Vishay Series NTCAIMME3C90373 sealed immersion thermistor today and enhance your fluid temperature sensing with reliable, fast-response performance.
Frequently Asked Questions
Where can I buy Vishay NTCAIMME3C90373?
You can click on the BUY or RFQ button to purchase NTCAIMME3C90373 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCAIMME3C90373?
You can download the NTCAIMME3C90373 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCAIMME3C90373?
Vishay
