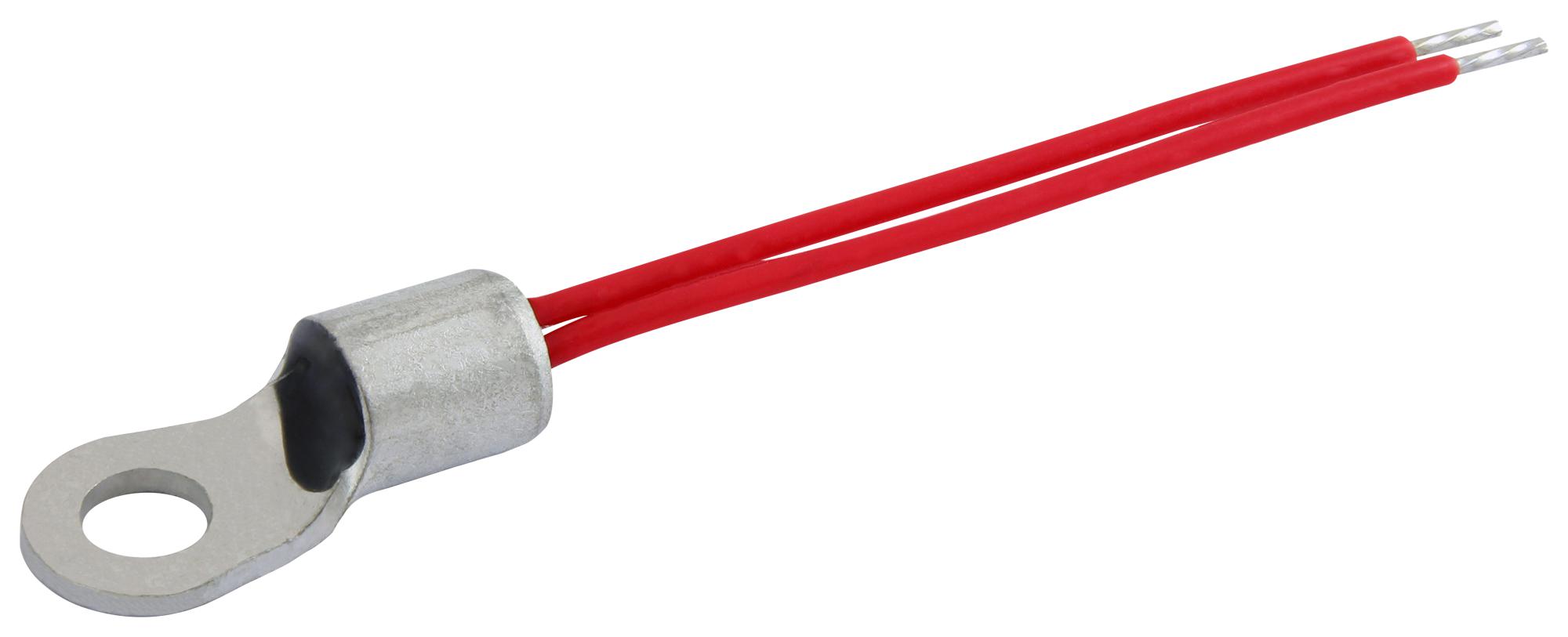

Vishay NTCALUG02A103FL Surface Temperature Thermistor
This low thermal gradient lug mount NTC thermistor sensor is designed for precise surface temperature measurement and control in automotive, industrial, and consumer electronics. Qualified for automotive AEC-Q200 Grade 1 and UL recognized, it features a tin-plated copper ring lug with epoxy coating and epoxy buffer layer, mounted with PEEK insulated leads. Suitable for screwing onto metal surfaces via M8 or M3.5 screws, it offers reliable performance in harsh environments, with resistance values and temperature characteristics optimized for accurate sensing in power electronics, heat sinks, and control systems.
Vishay NTCALUG02A103FL Surface Temperature Thermistor Specifications:
- Resistance value at 25°C: 10K ±1% (Part Number: NTCALUG02A103FL)
- Temperature range: -40°C to +125°C
- Resistance tolerance: ±1%
- B-value: 3984 K, ±0.5%
- Thermal time constant: approximately 5 seconds
- Dissipation factor: 10 mW/°C
- Operating voltage: 1500 Vac dielectric withstanding voltage between terminals and lug
- Mounting: screw mounting using M8 or M3.5 screws, with suitable options for M4 or American Stud #8
- Material: epoxy-coated NTC chip, epoxy buffer layer, tin-plated copper ring lug, PEEK insulated leads
- Climatic category: 55/126/56 days
- RoHS compliant, UL recognized, AEC-Q200 Grade 1 qualified
- With epoxy coating for environmental protection and reliable performance
- Suitable for surface temperature measurement in automotive, power electronics, industrial equipment, and consumer appliances
Buy the Vishay NTCALUGO2A103FL – Reliable Surface Temperature Sensor for Industrial Applications
Enhance your temperature sensing applications by purchasing the Vishay NTCALUGO2A103FL online. This high-quality lug-mounted NTC thermistor guarantees accurate surface temperature measurement, ideal for automotive, industrial, and consumer electronics. Its low thermal gradient and rugged design ensure dependable operation in demanding environments. With UL recognition and AEC-Q200 Grade 1 qualification, it reliably supports your power electronics, heating systems, and control units. Order now to benefit from fast delivery, expert support, and superior performance incorporating proven Vishay technology.
Buy Vishay NTCALUGO2A103FL now and experience unmatched reliability and precise surface temperature control with automotive-grade performance.
Frequently Asked Questions
Where can I buy Vishay NTCALUG02A103FL?
You can click on the BUY or RFQ button to purchase NTCALUG02A103FL from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCALUG02A103FL?
You can download the NTCALUG02A103FL datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCALUG02A103FL?
Vishay
