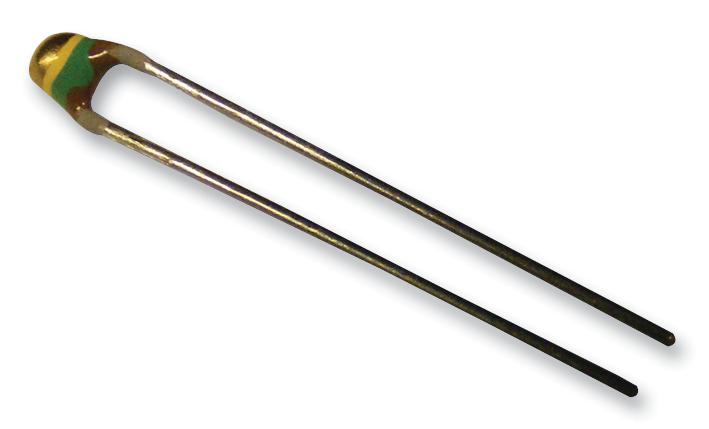

Vishay NTCLE100E3154JB0 Thermistor Sensor
These Vishay NTC thermistors are high-precision, radial leaded devices with negative temperature coefficients. They feature a temperature range of -40°C to +125°C, resistance from 3.3Ω to 470KΩ at 25°C, and excellent stability over long operational life. Suitable for temperature measurement, compensation, sensing, and control in industrial and consumer applications, they are RoHS compliant, UL recognized, and available in bulk or tape on reel packaging. Designed for soldering in any position, these thermistors are ideal for precise thermal management and sensing in complex electronic systems.
Vishay NTCLE100E3154JB0 Thermistor Sensor Specifications:
- Resistance at 25°C: 3.3Ω to 470KΩ
- Resistance tolerance: ±2%; B-value tolerance: narrow
- Temperature range: -40°C to +125°C
- Resistance at 25°C: 3.3Ω to 470KΩ
- Dissipation factor: 85 mW/°C
- Operating power: Max 500mW
- Thermal time constant: 12 s (in oil)
- Response time: 12 sec
- Mounting: Radial leaded, soldered in any position
- RoHS compliant, UL recognized, IEC 60286-2 taped packaging
- Dimensions: Body diameter 3.34-5.0 mm, lead diameter 0.6 mm, length and pitch suited for automated insertion
- Packaged: Bulk or tape on reel, quantity: 1500 per reel
- Storage: -25°C to +40°C, Max humidity 80% non-condensing
- Mechanical durability: Minimum pull-out force 5N, peel force 6N, tearing force 15N
- Environmental: Endurance, high temperature, vibration, shock, and solvent resistance tests compliant with IEC standards
Buy the Buy Vishay NTCLE100E3154JB0 Part Number NTCLE100E3154JB0 Online
Purchase your Vishay NTCLE100E3154JB0 thermistor today online to ensure precise temperature sensing and control in your industrial or consumer electronic applications. These high-quality, radial leaded NTC thermistors offer stability, rapid response, and wide temperature range, making them ideal for temperature measurement, compensation, and sensing tasks. With RoHS compliance and UL recognition, enjoy seamless integration into your systems. Order now and get fast shipping, competitive pricing, and dependable performance for your thermal management needs.
Order your Vishay Series E thermistor NTCLE100E3154JB0 today and enhance your temperature sensing and control projects with reliable, high-accuracy devices.
Frequently Asked Questions
Where can I buy Vishay NTCLE100E3154JB0?
You can click on the BUY or RFQ button to purchase NTCLE100E3154JB0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCLE100E3154JB0?
You can download the NTCLE100E3154JB0 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCLE100E3154JB0?
Vishay
