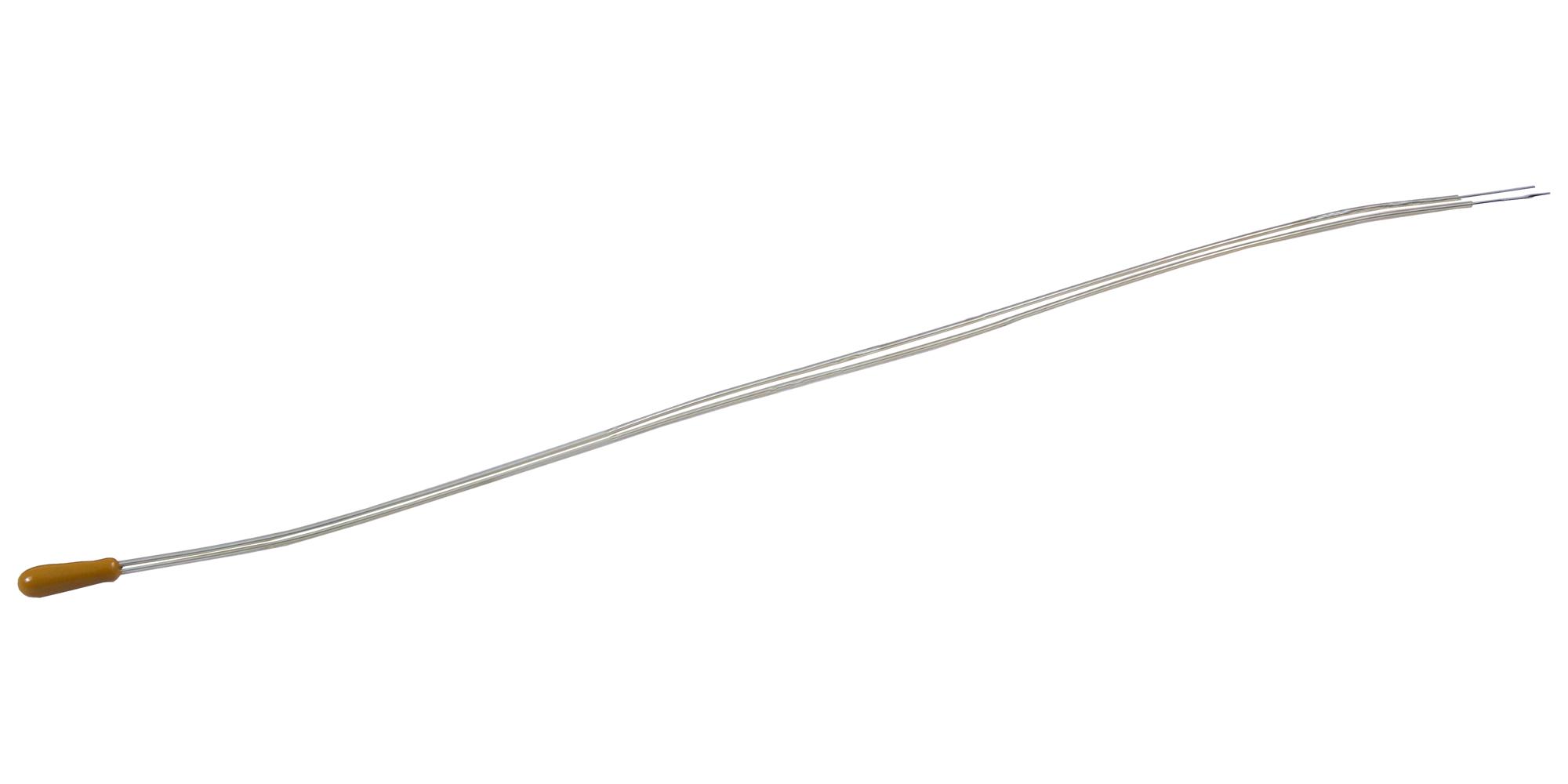

Vishay NTCLE317E4103SBA Temperature Sensor
These negative temperature coefficient thermistors are designed for precise temperature measurement, sensing, and control in automotive and industrial applications, including battery packs. They feature long, flexible insulated leads, a rapid response time of 0.3 seconds, and high accuracy of ±0.5°C between 25°C and 85°C. Constructed with PEEK insulated silver-plated nickel/iron leads and coated with epoxy lacquer, they are suitable for mounting via soldering or crimping. These thermistors are RoHS compliant, rated for temperatures up to 150°C, and offer reliable performance in demanding environments.
Vishay NTCLE317E4103SBA Temperature Sensor Specifications:
- Resistance value at 25°C: 10K ohms
- Tolerance on resistance: 22.19%
- Temperature accuracy between 25°C and 85°C: ±0.5°C
- Temperature accuracy between -55°C and 150°C: ±1.0°C
- Resistance value at 85°C: 7066.1 ohms
- Maximum power dissipation at 65°C: 50 mW
- Operating temperature range: -55°C to +150°C
- Minimum dielectric withstanding voltage: 100 V (RMS)
- Response time in oil: 0.3 seconds
- Material: PEEK insulated silver-plated nickel/iron leads coated with epoxy lacquer
- Dimensions (mm): Length: 6±1, Max. diameter: 1.6, Lead diameter: 0.4±0.02
- RoHS compliant, AEC-Q200 qualified
- Weight: approximately 0.05 g
Buy the Vishay NTCLE317E4103SBA – Reliable Thermistor for Industrial Applications
Purchase Vishay NTCLE317E4103SBA thermistors online today to enhance your temperature sensing projects. These high-accuracy NTC thermistors are perfect for automotive and industrial applications, delivering fast response and reliable performance. Featuring long, flexible insulated leads, they facilitate easy mounting via soldering or crimping. With RoHS compliance and a temperature range up to 150°C, they ensure safety and durability. Ideal for battery packs, temperature control systems, and sensing solutions, order now and enjoy prompt shipping and excellent customer support to meet your technical needs.
Get Vishay NTCLE317E4103SBA today—designed for precision temperature sensing in industrial and automotive environments.
