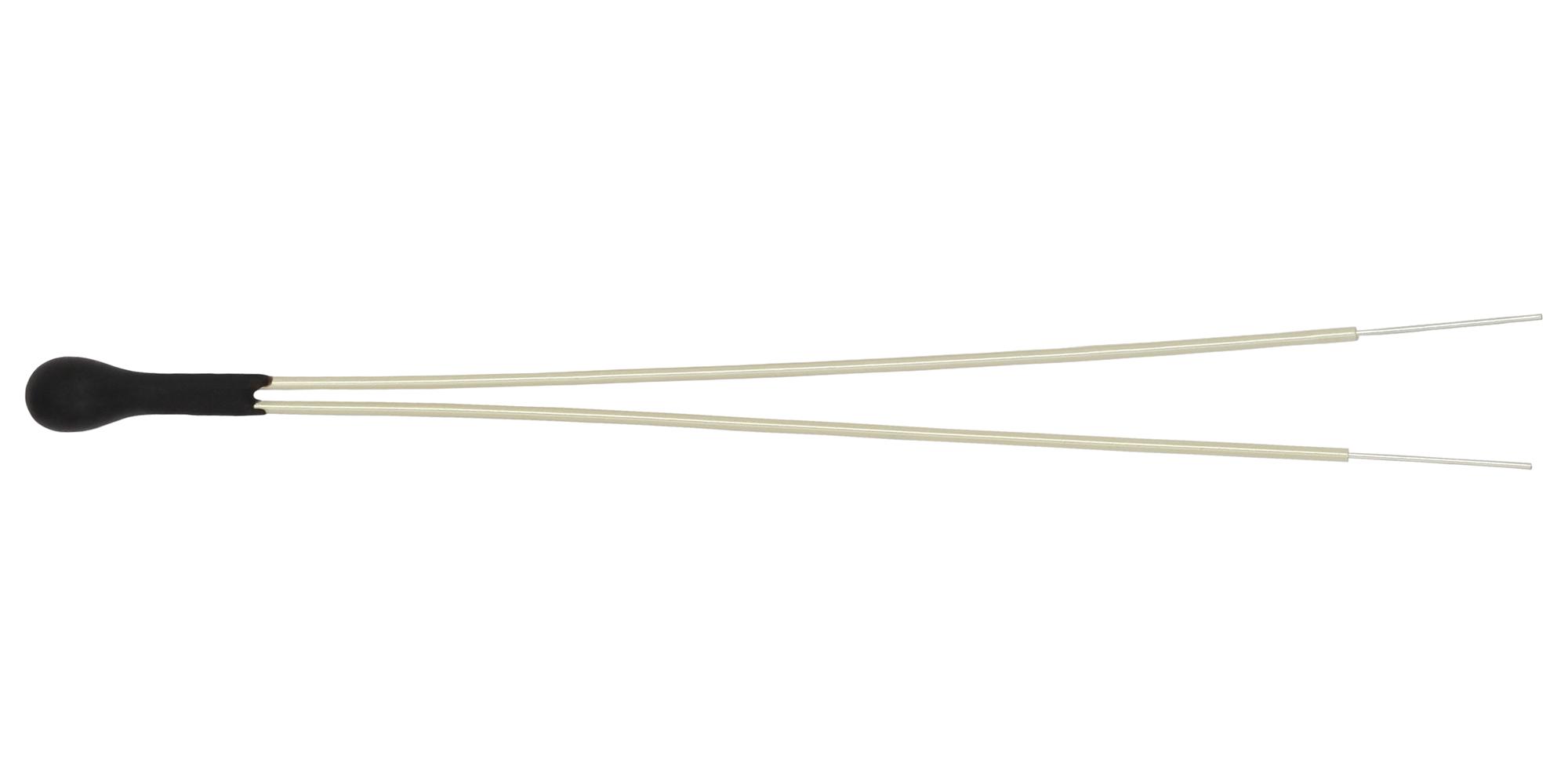

Vishay NTCLE350E4103JHB0 High-Temperature NTC Thermistor
The NTCLE350 thermistor features insulated NiFe alloy leads with PEEK insulation, designed for high-temperature applications up to 185°C. It offers precise temperature measurement with ±1.7°C accuracy at peak temperatures, making it suitable for automotive and industrial environments. Its small, robust construction supports reliable mounting in welding, brazing, molding, or potting processes. Designed for engine cooling, EGR, oil sensing, and electric motors, it complies with AEC-Q200, with a resistance of 10,000 ohms at 25°C, and operates over -55°C to +185°C, ensuring durability in demanding conditions.
Vishay NTCLE350E4103JHB0 High-Temperature NTC Thermistor Specifications:
- Resistance at 25°C: 10,000 ohms
- Tolerance: 1, 2, 3, 5 %
- Operating temperature range: -55°C to +185°C
- Response time (63.2 % in still air): 6 s
- Maximum power dissipation at 55°C: 100 mW
- Dielectric withstanding voltage: 1000 Vac
- Insulation resistance: 100 MΩ at 500 Vac
- Body diameter: up to 2.4 mm
- Lead material: Silver-plated NiFe alloy with PEEK insulation
- Mounting: Radial
- Qualifies: AEC-Q200 rev. D
- Material: Advanced ceramic NTC technology
- Resistance tolerance options: 1%, 2%, 3%, 5%
- Weight: 30 mg
Buy the Vishay Series NTC Thermistors: NTCLE350E4103JHB0
Purchase the Vishay NTCLE350E4103JHB0 thermistor online today and ensure precise temperature measurement in demanding automotive and industrial applications. Featuring insulated NiFe alloy leads and advanced ceramic NTC technology, this thermistor operates up to 185°C, providing fast response, high sensitivity, and resistance to corrosive environments. Its compact size of 2.4 mm diameter allows easy mounting in engine management systems, exhaust gas recirculation, and oil temperature sensors. Trust Vishay for durable, automotive-grade thermistors trusted worldwide.
Buy Vishay NTCLE350E4103JHB0 thermistors now and experience reliable high-temperature sensing with excellent accuracy and robust construction.
