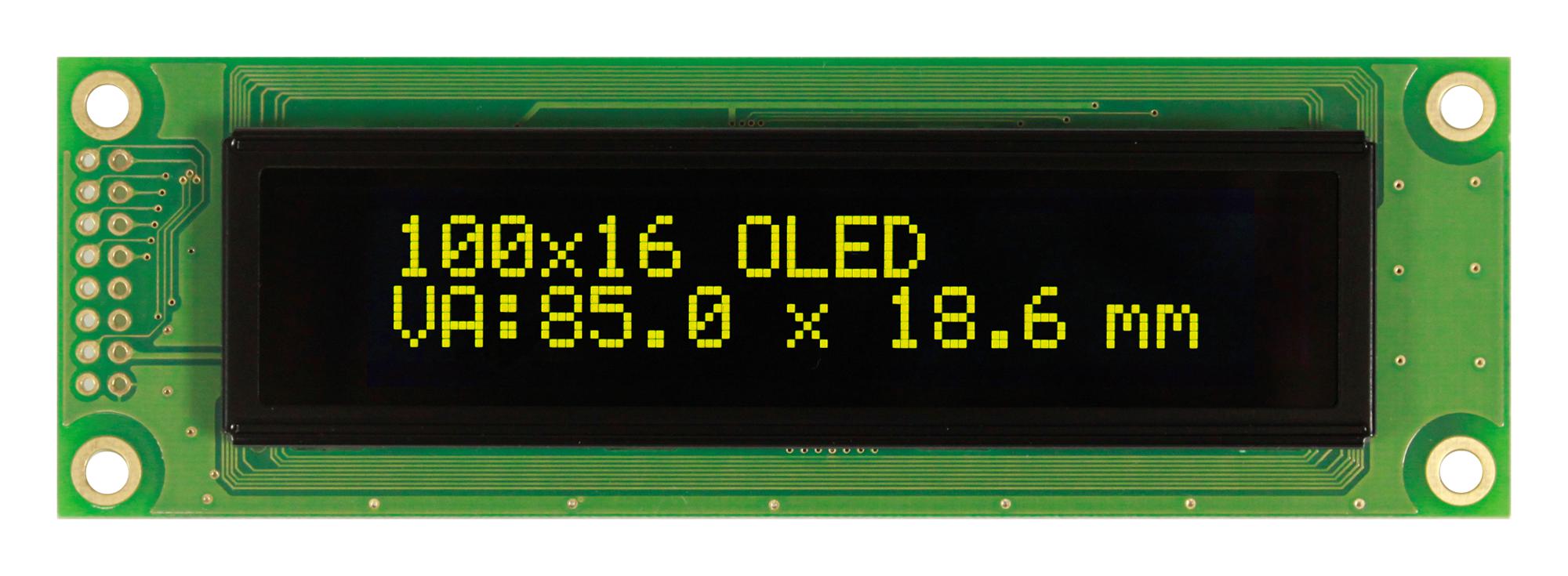

Vishay O100H016FLPP5N0000 Graphic OLED Display
The OLED module features a 100 x 16 dot graphic display emitting yellow light. It includes a built-in controller and operates at a 5V drive voltage. The module's maximum dimensions are 116mm by 37mm by 9.8mm, with a viewing area of 85mm by 18.6mm and an active display area of 64.95mm by 11.15mm. Each dot measures 0.60mm by 0.65mm with a pitch of 0.65mm by 0.7mm. It has mounting holes spaced 108mm by 29mm and uses a polarized passive matrix design. Suitable for imaging, video, and vision applications.
Vishay O100H016FLPP5N0000 Graphic OLED Display Specifications:
- Module dimension: 116.0 x 87.0 x 9.8 mm
- Viewing area: 85.0 x 18.6 mm
- Active display area: 64.95 x 11.15 mm
- Dot size: 0.60 x 0.65 mm
- Dot pitch: 0.65 x 0.70 mm
- Mounting hole spacing: 108.0 x 29.0 mm
- Supply voltage: 5 V (standard), optional 3 V
- Logic voltage: 3.0 to 5.0 V
- Display type: Graphic dot matrix
- Display color: Yellow
- Display format: 100 x 16 dots
- Built-in controller: OLED-0010
- Interface: 6800, 8080, SPI
- Operation temperature, typical: -20°C to +70°C
Buy the VISHAY Series OLED-100H016F Graphic OLED: O100H016FLPP5N0000
Order the Vishay OLED-100H016F graphic display online today to enhance your imaging, video, and vision projects. This 100 x 16 dot yellow-emitting OLED module features a built-in controller, operates at 5V, and provides vibrant visuals with a polarized passive matrix design. Compact and durable, it's suitable for various applications including portable devices, industrial equipment, and display systems. Purchase now to ensure reliable performance and quick delivery for your electronics projects and prototypes.
Get Vishay OLED-100H016F today—built for vivid graphics and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay O100H016FLPP5N0000?
You can click on the BUY or RFQ button to purchase O100H016FLPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H016FLPP5N0000?
You can download the O100H016FLPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H016FLPP5N0000?
Vishay
