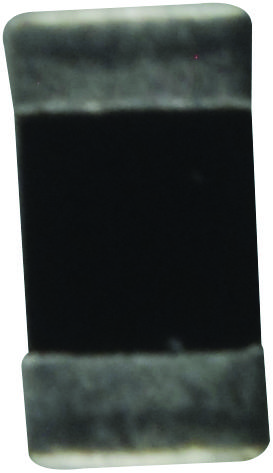

Vishay NTCS0603E3473FHT NTC Thermistor
This glass-protected SMD NTC thermistor is designed for precise temperature sensing, protection, and compensation in automotive, industrial, telecom, and consumer applications. It features NiSn terminations, is fully glass coated, RoHS compliant, and suitable for wave or reflow soldering with a maximum temperature of 260 °C for 40 seconds. Certified for safety with UL recognition and AEC-Q200 qualified, it offers reliable performance across temperature ranges from -40°C to +150°C, with resistance values from 2.0K to 100K at 25°C and tight tolerances.
Vishay NTCS0603E3473FHT NTC Thermistor Specifications:
- Size: 0603 (M1608)
- Resistance at 25°C: 2.0K to 100K Ohms
- Tolerance on Resistance: 1%
- Temperature Range: -40°C to +150°C
- Maximum Dissipation at 25°C: 125 mW
- Material: Glass coated, NiSn terminations, RoHS compliant
- Soldering: Suitable for wave or reflow soldering, max 260°C for 40 sec
- Dissipation Factor: 3.0 mW/K
- Certification: UL recognized, AEC-Q200 qualified
Buy the Buy Vishay NTC Thermistor Part Number NTCS0603E3473FHT Online
Order the Vishay NTCS0603E3473FHT thermistor online today for precise temperature sensing, protection, and compensation in automotive, industrial, and consumer applications. This robust, glass-coated SMD thermistor features NiSn terminations, UL recognition, and is AEC-Q200 qualified. Its compact 0603 size is suitable for wave or reflow soldering with a maximum temperature of 260°C for 40 seconds. Enjoy fast delivery and the assurance of a high-quality component built for long-lasting performance in demanding environments.
Get Vishay NTCS0603E3473FHT today—designed for reliable temperature sensing with glass protection and RoHS compliance.
Frequently Asked Questions
Where can I buy Vishay NTCS0603E3473FHT?
You can click on the BUY or RFQ button to purchase NTCS0603E3473FHT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCS0603E3473FHT?
You can download the NTCS0603E3473FHT datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCS0603E3473FHT?
Vishay
