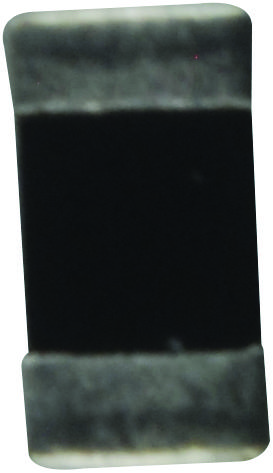

Vishay NTCS0805E3103HMT Temperature Sensor
This is a 0805-sized, glass-protected NTC thermistor suitable for precise temperature sensing in electronic circuits. Operating within -40 to +150 °C, it features a resistance value of 3.9K at 25°C, with a tolerance of 1%. The device is fully glass coated for durability and is compatible with wave or reflow soldering with a maximum temperature of 260°C for 40 seconds. Ideal for applications like temperature compensation, battery management, and industrial electronics, it offers reliable performance in demanding environments.
Vishay NTCS0805E3103HMT Temperature Sensor Specifications:
- Size: 0805 (2.0 x 1.25 mm)
- Resistance at 25°C: 3.9KΩ (example)
- Resistance Tolerance: 1%
- Temperature Range: -40°C to +150°C
- Maximum Dissipation at 25°C: 210 mW
- Thermal Time Constant: 10 s
- Dissipation Factor: 3.5 mW/K
- Material: Glass protected
- Soldering: Suitable for wave or reflow; max 260°C for 40 s
- Packaging: Tape on reel, 4000 units
- Application: Temperature sensing, compensation, industrial electronics
- Compliance: RoHS, cUL recognized, AEC-Q200 qualified
Buy the Vishay NTCS0805E3103H – Reliable Temperature Sensing for Industrial Applications
Order the Vishay NTCS0805E3103H thermistor online today and ensure precise temperature measurement in your industrial or electronic projects. This high-quality, glass-protected SMD thermistor is ideal for temperature compensation, battery management, and other applications requiring accurate sensing in harsh environments. With a resistance of 3.9K at 25°C and operating from -40°C to +150°C, it offers excellent stability and durability. Purchase now to benefit from easy reflow soldering and RoHS compliance, ensuring your project’s success with reliable components.
Buy Vishay NTCS0805E3103H now and experience unmatched reliability and performance in temperature sensing for industrial and electronic applications.
