Vishay VOT8024AM Phototriac Optocoupler
The VOT8024AM is a compact, high-performance optocoupler with a phototriac output and zero crossing detection, designed for isolating low-voltage logic from high-voltage AC lines. Packaged in a slim SOP-4 form factor, it supports resistive, inductive, and capacitive loads, including motors and relays. It features high dV/dt, low input current, and a peak off-state voltage of 800 V, making it ideal for power control, solid-state relays, and industrial applications requiring reliable electrical isolation and switching performance.
Vishay VOT8024AM Phototriac Optocoupler Specifications:
- Package Dimensions: SOP-4, 2.54mm spacing, 3.85mm length, 0.3mm lead thickness
- Maximum Reverse Voltage: 6 V
- Forward Current: 50 mA
- On-State Current: 100 mA
- Peak Off-State Voltage: 800 V
- Isolation Voltage: 3750 V (RMS), 6000 Vpeak transient
- Power Dissipation (Input): 70 mW
- Power Dissipation (Output): 300 mW
- Junction Temperature: 125°C
- Storage Temperature Range: -55°C to +150°C
- Ambient Temperature Range: -5°C to +110°C
- Peak Surge Current: 1 A (PW=1ms, 120 pps)
- Trigger Current: 5 mA
- Repetitive Peak Insulation Voltage: 565 Vpeak
- Insulation Resistance: >2 MΩ at 500 V
- Creepage and Clearance: >5 mm
- Soldering Temperature (10s): 260°C

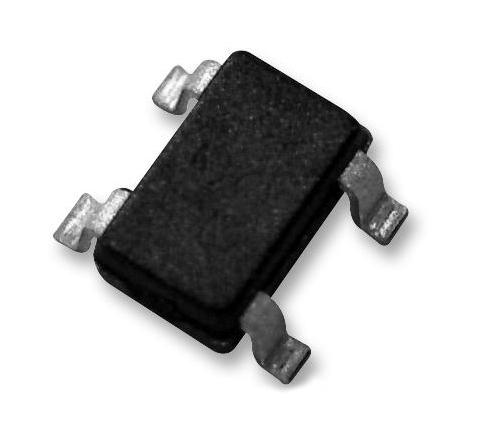

Buy the VISHAY Series VOT8024AM Phototriac Isolator: VOT8024AM
Experience the high reliability and compact design of the Vishay VOT8024AM optocoupler, featuring zero crossing detection and high off-state voltage. Ideal for power control, solid-state relays, and motor drives, its SOP-4 package simplifies installation while ensuring excellent electrical isolation. Suitable for industrial automation, household appliances, and 3-phase equipment, this optocoupler offers high dV/dt, low input current, and peak off-state voltage of 800 V. Purchase online today to enhance your power management systems with precision and durability.
Get Vishay VOT8024AM today—built for reliable electrical isolation and power switching in industrial control and relay applications.
Frequently Asked Questions
Where can I buy Vishay VOT8024AM?
You can click on the BUY or RFQ button to purchase VOT8024AM from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VOT8024AM?
You can download the VOT8024AM datasheet or visit the Vishay website for support.
Who is the manufacturer of VOT8024AM?
Vishay
