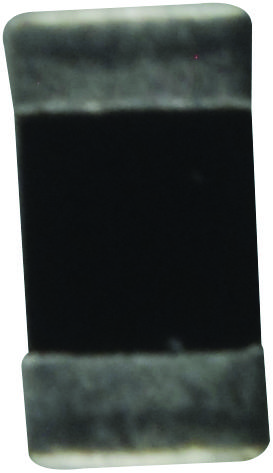

Vishay NTCS0805E3473FHT NTC Thermistor
This glass-protected SMD NTC thermistor is designed for reliable temperature sensing, protection, and compensation in automotive, industrial, telecom, and consumer electronics. It features NiSn terminations, a compact 0805 size, and can withstand reflow soldering with maximum temperatures of 260°C for 40 seconds. With an operating range from -40°C to +150°C, it offers precise resistance values at 25°C, tolerance options down to 1%, and RoHS compliance. Fully glass-coated, UL recognized, and AEC-Q200 qualified, making it suitable for demanding environments and high-reliability applications.
Vishay NTCS0805E3473FHT NTC Thermistor Specifications:
- Size: 0805 (M2012)
- Resistance at 25°C: 2.2K to 680K ohms
- Tolerance: down to 1%
- Operating Temperature Range: -40°C to +150°C
- Maximum Dissipation at 25°C: 210 mW
- Thermal Time Constant: 10 s
- Material: Glass-protected chip
- Lead Termination: NiSn
- RoHS compliant
- UL Recognized: file E148885
- Qualified for automotive applications (AEC-Q200)
- Suitable for wave and reflow soldering with max temperature of 260°C for 40 seconds
- Packaging: 8 mm punched paper tape on reel, 4000 units per reel
Buy the Vishay Series NTC Thermistors: NTCS0805E3473FHT
Order Vishay NTCS0805E3473FHT online today to ensure high-quality temperature sensing and protection solutions. This glass-protected SMD thermistor offers precise resistance at 25°C, operates reliably from -40°C to +150°C, and is suitable for reflow soldering with maximum temperature of 260°C. Its high-reliability features include RoHS compliance, UL recognition, and automotive AEC-Q200 qualification, making it ideal for demanding industrial and automotive applications. Secure your supply and improve product performance by purchasing online now.
Buy Vishay NTCS0805E3473FHT now and experience unmatched reliability and performance in temperature sensing applications with RoHS and AEC-Q200 standards.
Frequently Asked Questions
Where can I buy Vishay NTCS0805E3473FHT?
You can click on the BUY or RFQ button to purchase NTCS0805E3473FHT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCS0805E3473FHT?
You can download the NTCS0805E3473FHT datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCS0805E3473FHT?
Vishay
