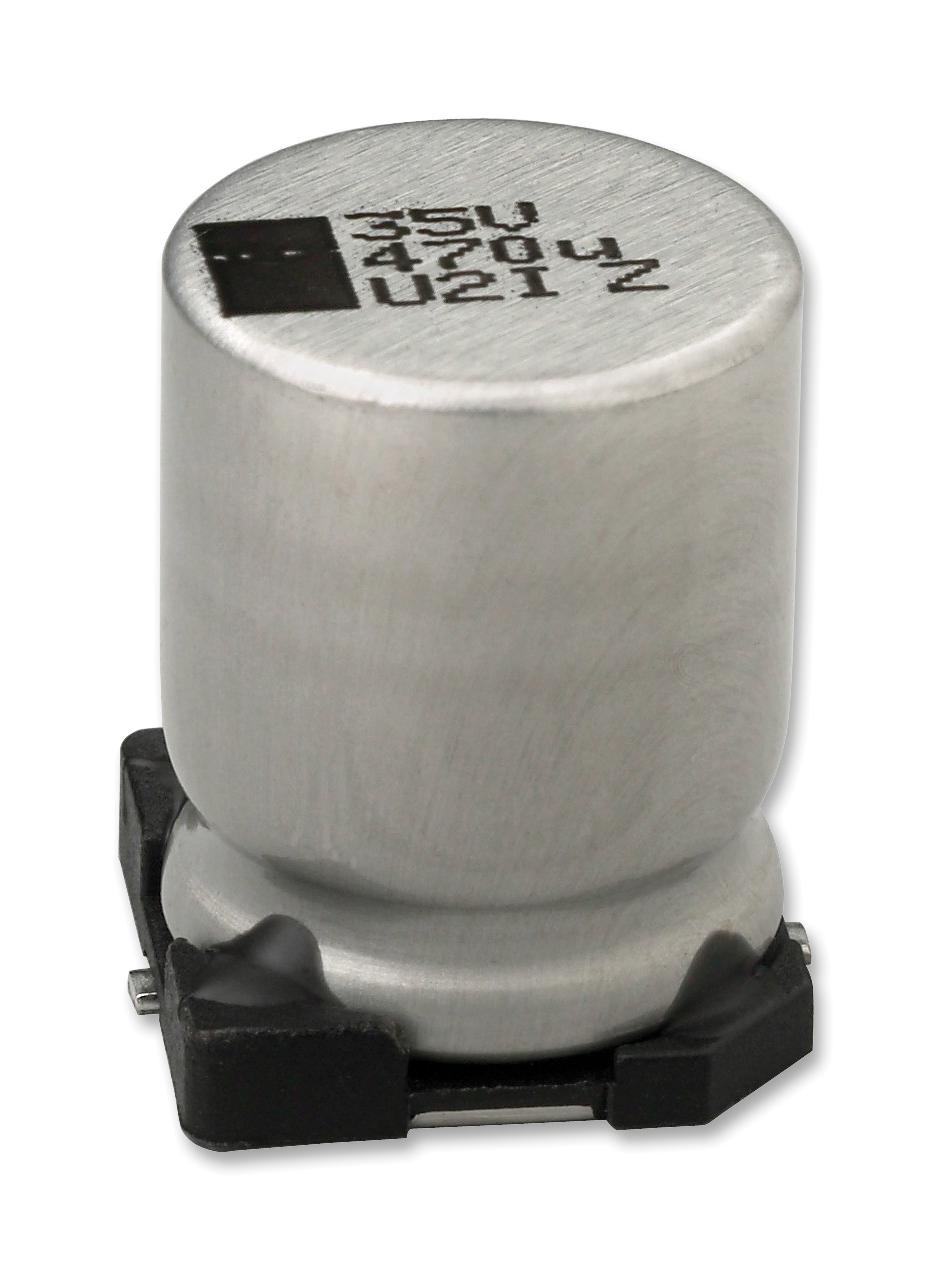

Vishay MAL215097502E3 Aluminum Electrolytic Capacitor
The MAL215097502E3 is a high-reliability aluminum electrolytic capacitor designed for surface-mount applications. Featuring very low impedance, high ripple current capacity, and extended useful life up to 10,000 hours at 105 °C, it suits industrial, automotive, and telecommunications applications. The capacitor is RoHS-compliant, reflow solderable, and qualified under AEC-Q200 standards. It offers optimal dimensions for high-temperature reflow processes, excellent vibration resistance, and robust electrical performance with low ESR, making it ideal for filtering, buffering, and smoothing in demanding electronics environments.
Vishay MAL215097502E3 Aluminum Electrolytic Capacitor Specifications:
- Nominal case sizes: 8x8x10 mm to 18x18x21 mm
- Rated capacitance range: 4.7 UF to 10,000 pF
- Tolerance on Cr: +20%
- Rated voltage range: 6.3 V to 100 V
- Temperature range: -55 °C to +105 °C for 6.3 V to 63 V; -40 °C to +105 °C for 80 V to 100 V
- Endurance: 2000 h to 8000 h at 105 °C
- Useful life: 2500 h to 500,000 h at 105 °C / 40 °C
- RoHS compliant, lead-free reflow solderable, AEC-Q200 qualified
- Low ESR, high ripple current capability, vibration resistant
- Designed for high temperature reflow processes according to JEDEC standards
- Markings include capacitance, voltage, date code, cathode indicator, group number
Buy the Vishay Series CRZ Aluminum Electrolytic Capacitors: MAL215097502E3
Purchase the Vishay CRZ aluminum electrolytic capacitor MAL215097502E3 online today. Designed for surface-mount technology, it offers low impedance, high ripple current, extended lifespan, and excellent reliability. Suitable for industry, automotive, telecom, and high-temperature reflow soldering, this capacitor ensures optimal performance in demanding environments. Its RoHS compliance and AEC-Q200 qualification guarantee quality and environmental friendliness, making it the ideal choice for precise electronic smoothing, filtering, and buffering applications across various high-reliability electronic systems.
Get Vishay CRZ aluminum electrolytic capacitor MAL215097502E3 today—built for precision, high ripple current, and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay MAL215097502E3?
You can click on the BUY or RFQ button to purchase MAL215097502E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL215097502E3?
You can download the MAL215097502E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL215097502E3?
Vishay
