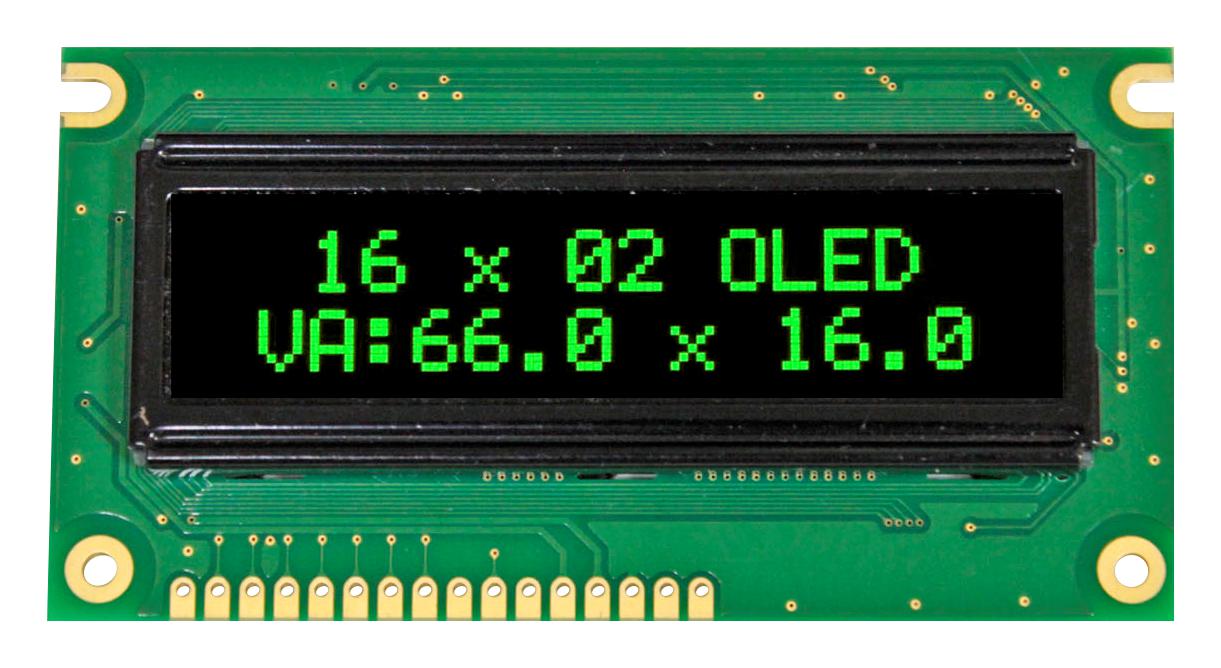

Vishay O016N002EGPP5N0000 Character OLED Display Module
The OLED-016N002E module features a 16x2 character green-emitting OLED display with integrated controller, operating at 5V. It has a viewing area of 66mm x 16mm and an active area of 56.95mm x 11.85mm, with dots of 0.55mm x 0.65mm and pitch of 0.6mm x 0.7mm. The overall dimensions are 84mm x 44mm x 10mm, including mounting holes spaced 76mm x 36mm. Designed with passive matrix technology, it supports multiple interface options, making it suitable for imaging, video, and vision applications that demand sunlight readability and polarization options.
Vishay O016N002EGPP5N0000 Character OLED Display Module Specifications:
- Display format: 16 x 2 characters
- Operating voltage: 5 V, optional 3 V
- Module dimensions: 84 mm x 44 mm x 10 mm
- Viewing area: 66 mm x 16 mm
- Active area: 56.95 mm x 11.85 mm
- Dot size: 0.55 mm x 0.65 mm
- Dot pitch: 0.6 mm x 0.7 mm
- Interface options: 6800, 8080, SPI
- Built-in controller: OLED-0010
- Color: Green
- Technology: Passive matrix
- Maximum current: 30 mA
- Supply voltage: 5V (standard), 3V optional
- Mounting hole spacing: 76 mm x 36 mm
- Display technology: OLED with polarization options
- Suitable for imaging, video, vision applications
Buy the Vishay OLED-016N002E – Reliable Character OLED Display for Industrial Applications
Purchase the Vishay OLED-016N002E character display module online today and get a versatile 16x2 OLED screen with built-in controller, supporting multiple interfaces and optional polarization, perfect for imaging, video, and vision systems. With a compact size of 84mm x 44mm x 10mm, this module features a bright green-emitting display ideal for sunlight-readable applications. Its 5V operation and passive matrix technology ensure high performance and durability in demanding industrial environments. Order now to improve your project visibility and reliability!
Order your Vishay OLED-016N002E display today and enhance your imaging or vision projects with reliable OLED technology designed for demanding industrial environments.
