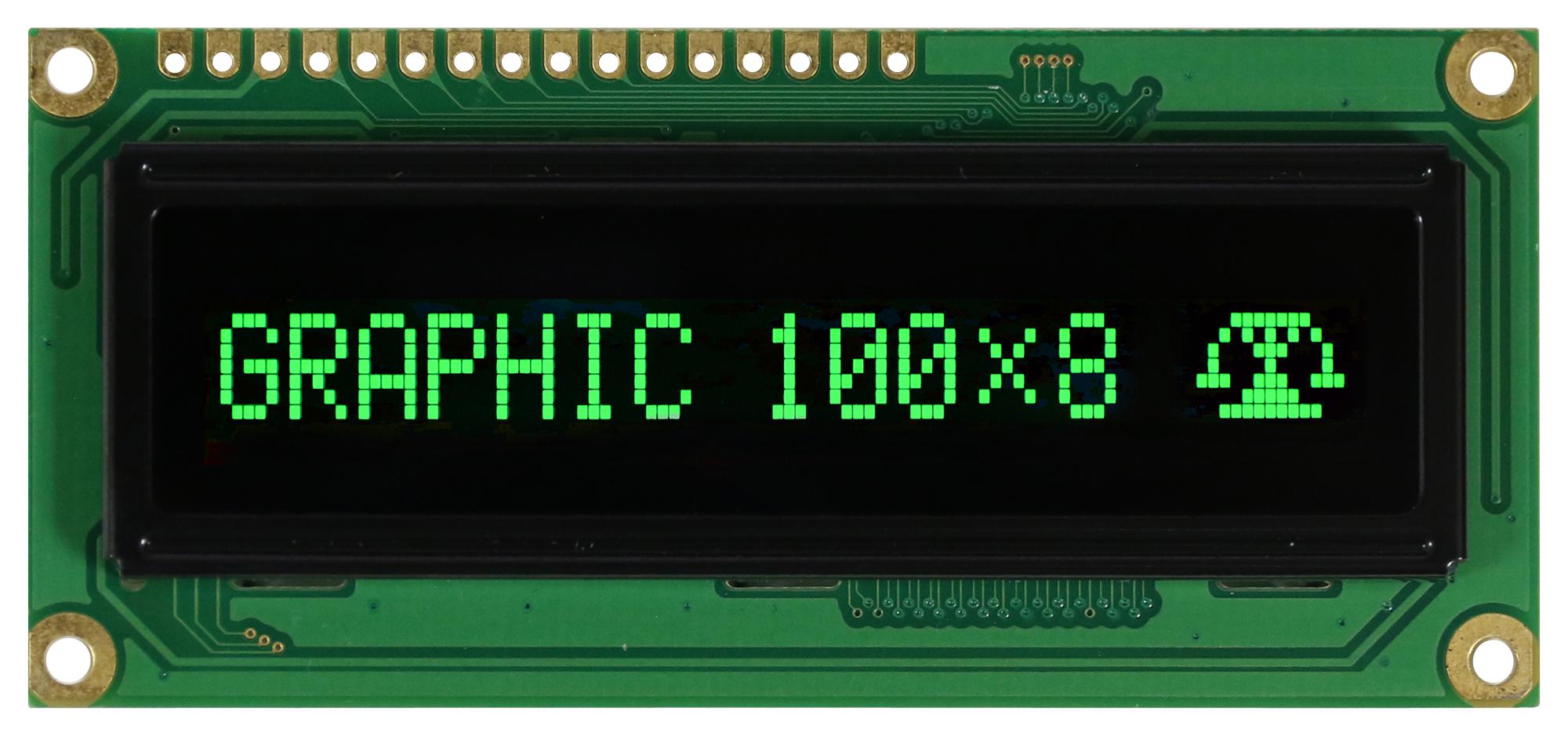

Vishay O100H008AGPP5N0000 Graphic OLED Display
The Vishay OLED-100HO08A is a compact, high-contrast graphic OLED display module featuring a 100x8 dot resolution with a 66mm x 16mm viewing area. It operates at +5V with optional +3V and supports interfaces like 6800, 8080, and SPI, making it versatile for various embedded applications. The module includes a built-in OLED-0010 controller, a duty cycle of 1/8, and optional sunlight readability. Its mechanical dimensions are 80mm x 36mm x 10mm, with a 59.95mm x 6.35mm active area, ideal for imaging, video, and vision systems requiring clear, wide-angle visuals.
Vishay O100H008AGPP5N0000 Graphic OLED Display Specifications:
- Display resolution: 100 x 8 dots
- Viewing area: 66.0 x 16.0 mm
- Active area: 59.95 x 6.35 mm
- Module dimension: 80.0 x 36.0 x 10.0 mm
- Dot size: 0.55 x 0.75 mm
- Dot pitch: 0.60 x 0.80 mm
- Power supply: +5V (optional +3V)
- Duty cycle: 1/8
- Interface options: 6800, 8080, SPI
- Operating temperature: Not specified, compatible with typical OLED ranges
- Maximum mounting hole spacing: 75 x 31 mm
- Mechanical features: Sunlight-readable, polarizer optional
- Controller: Built-in OLED-0010
- Material: Passive matrix OLED display
Buy the Buy Vishay OLED-100HO08A Part Number O100H008AGPP5N0000 Online
Discover the Vishay OLED-100HO08A graphic OLED display module, offering a resolution of 100x8 dots with a compact profile measuring 80mm x 36mm x 10mm. Featuring a built-in OLED-0010 controller, it supports multiple interfaces like SPI and 8080, ensuring compatibility with various systems. The display operates at +5V with optional +3V and has a duty cycle of 1/8 for power efficiency. Its color options include green and yellow, making it ideal for imaging, video, and vision applications requiring clear, bright visuals. Purchase online today for reliable performance.
Buy Vishay OLED-100HO08A now and experience high-resolution graphics for imaging, video, and vision systems with reliable OLED technology.
Frequently Asked Questions
Where can I buy Vishay O100H008AGPP5N0000?
You can click on the BUY or RFQ button to purchase O100H008AGPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H008AGPP5N0000?
You can download the O100H008AGPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H008AGPP5N0000?
Vishay
