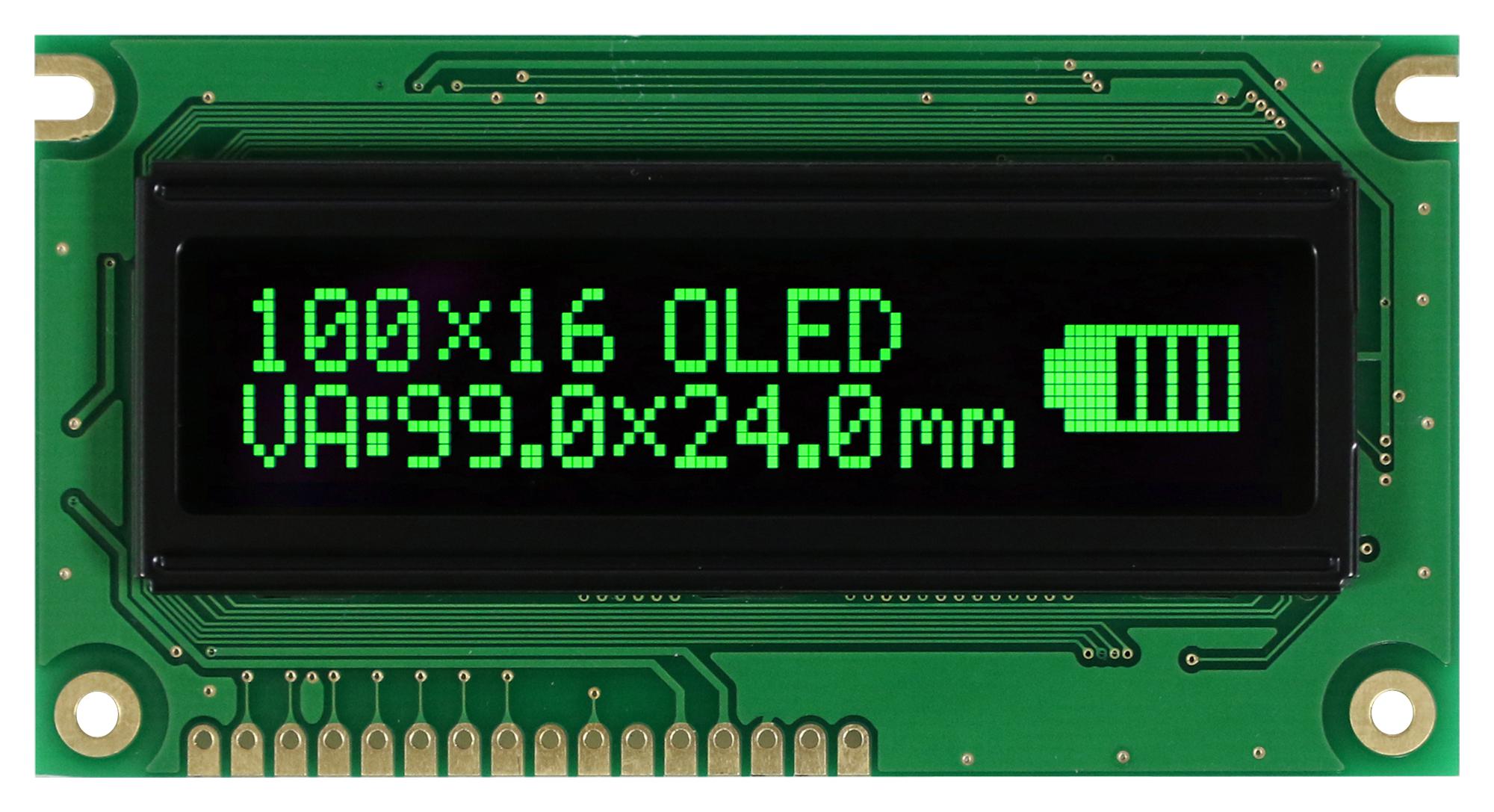

Vishay O100H016EGPP5N0000 Graphic OLED Display
The OLED display module features a 100x16 dot graphic format with a green emission color, designed for high-quality imaging and video display. Powered at 5V with a driver voltage of 5V (VDD-VSS), it employs a passive matrix configuration with a polarized surface for enhanced visual clarity. The module has a compact dimension of 84.0 x 44.0 x 10.0 mm, with an active display area of 59.95 x 11.15 mm, and dot sizes of 0.55 x 0.65 mm, making it ideal for embedded or portable applications requiring reliable, sharp visuals and long operating life.
Vishay O100H016EGPP5N0000 Graphic OLED Display Specifications:
- Module dimension: 84.0 x 44.0 x 10.0 mm
- Active area: 59.95 x 11.15 mm
- View area: 66.0 x 16.0 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Display type: graphic OLED
- Format: 100 x 16 dots
- Operation voltage: 5V
- Polarizer: With Polarizer
- Display mode: Passive Matrix
- Viewing angle: 160 degrees
- Contrast ratio: 2000:1
- Response time: 10 μs
- Operating temperature: -40°C to +80°C
- Storage temperature: -40°C to +80°C
- Luminance: 100-120 cd/m²
Buy the Vishay OLED-100H016E-LPP5N00000 – Reliable Graphic OLED for Industrial Applications
Purchase the Vishay OLED-100H016E-LPP5N00000 online today and benefit from a high-performance, reliable graphic OLED designed for industrial, imaging, and video applications. This compact 100x16 dot display operates at 5V with polarized passive matrix technology, ensuring clear visuals with a contrast ratio of 2000:1 and response times of 10 μs. Its robust construction, wide temperature range, and long lifetime of up to 100,000 hours make it ideal for demanding environments. Order now for fast delivery and seamless integration into your projects, supported by expert technical assistance.
Get Vishay OLED-100H016E-LPP5N00000 today—built for precision and long-lasting durability in imaging and vision projects.
Frequently Asked Questions
Where can I buy Vishay O100H016EGPP5N0000?
You can click on the BUY or RFQ button to purchase O100H016EGPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H016EGPP5N0000?
You can download the O100H016EGPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H016EGPP5N0000?
Vishay
