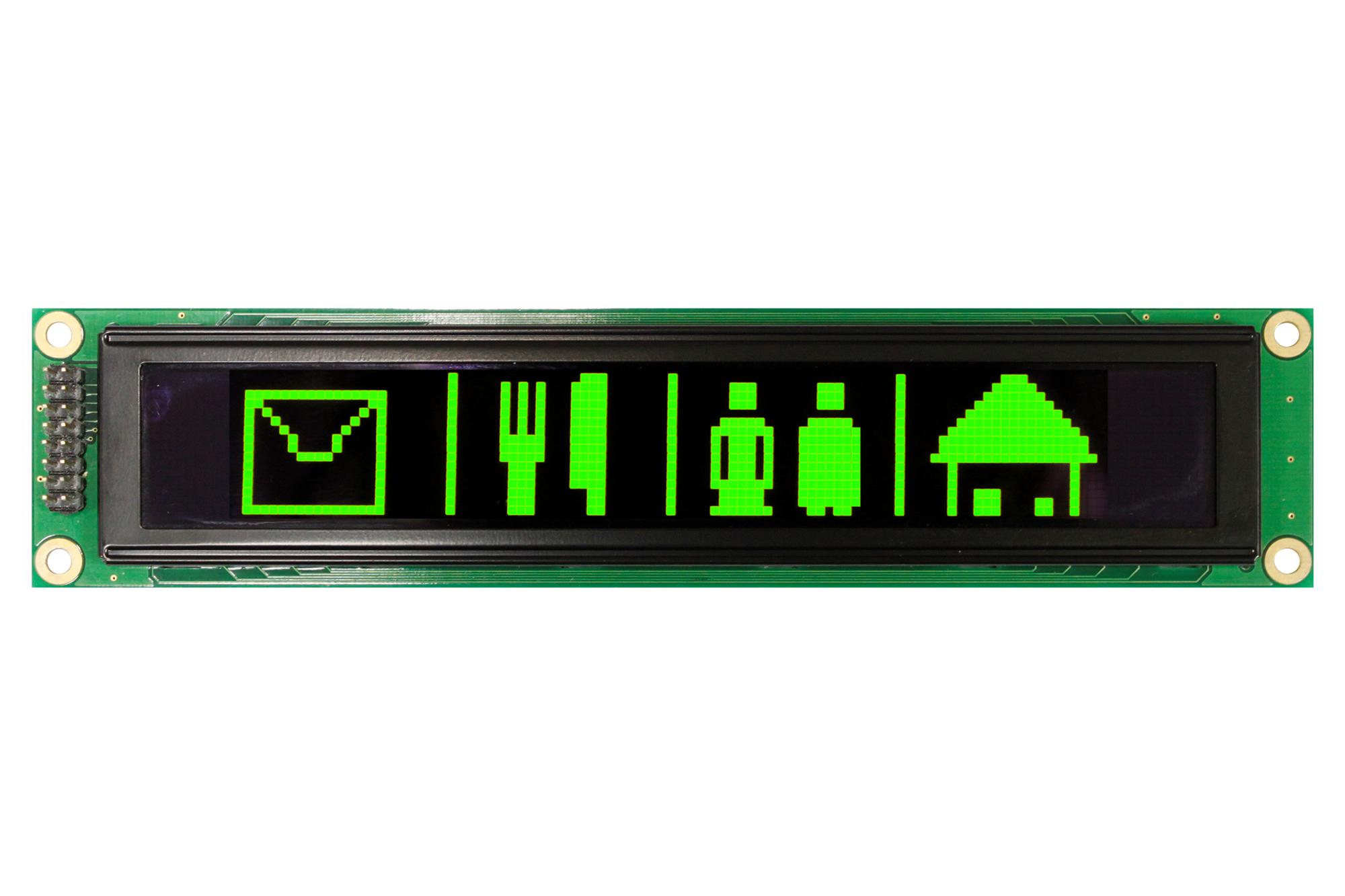

Vishay O100H016HGPP5N0000 OLED Graphic Display
The OLED display module from Vishay features a compact 100x16 dot green-emitting graphic display suitable for a variety of embedded systems. Operating at 5V, it provides excellent contrast with a 2000:1 ratio, wide viewing angle of 160 degrees, and a response time of 10 microseconds. The module is designed with a polarized, passive matrix architecture, ensuring clear and sharp visuals. It supports a duty cycle of 1/16 and has an estimated lifetime of up to 100,000 hours under typical conditions, making it reliable for long-term applications.
Vishay O100H016HGPP5N0000 OLED Graphic Display Specifications:
- Module dimension: 180.0 x 40.0 x 9.3 mm
- View area: 149.0 x 23.0 mm
- Active area: 121.9 x 19.42 mm
- Dot matrix: 100 x 16 dots
- Dot size: 1.12 x 1.12 mm
- Dot pitch: 1.22 x 1.22 mm
- Display type: OLED, Green
- Duty cycle: 1/16
- Operating voltage: 5.0 V
- View angle: 160 degrees
- Contrast ratio: 2000:1
- Response time: 10 microseconds
- Lifetime: 80,000 to 100,000 hours at 25°C
- Viewing brightness: 70-90 cd/m²
- Interface: 14-pin parallel with VSS, VDD, RS, RW, E, and data pins
- Operating temperature: -40°C to +80°C
- Storage temperature: -40°C to +80°C
Buy the Buy Vishay OLED Product Part Number O100H016HGPP5N0000 Online
Order the Vishay OLED graphic display module O100H016HGPP5N0000 online today to enhance your embedded systems with vibrant green visuals. Designed with a compact form factor of 180mm x 40mm x 9.3mm, it features a 100x16 dot matrix with high contrast and wide viewing angles. Its passive matrix architecture supports a durable lifetime of up to 100,000 hours at 25°C, ensuring long-term reliability. Perfect for industrial, consumer electronics, and control panel applications, this OLED display offers excellent performance and easy integration for various electronic projects.
Buy Vishay OLED Module O100H016HGPP5N0000 now and experience reliable high-contrast graphics for your display projects.
Frequently Asked Questions
Where can I buy Vishay O100H016HGPP5N0000?
You can click on the BUY or RFQ button to purchase O100H016HGPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H016HGPP5N0000?
You can download the O100H016HGPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H016HGPP5N0000?
Vishay
