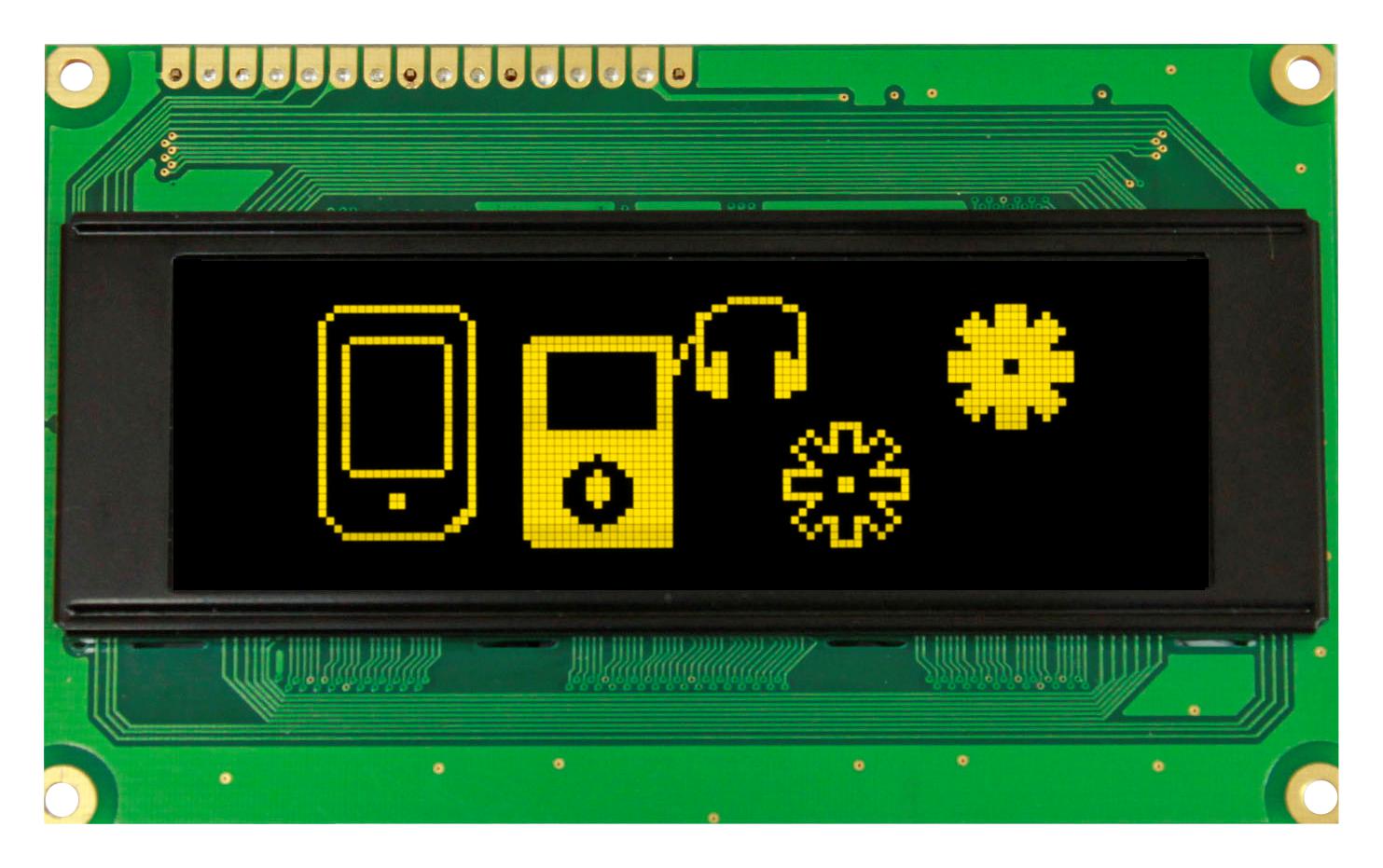

Vishay O100H032BLPP5N0000 Yellow OLED Display
The Vishay OLED module offers a compact 98.0 x 60.0 mm profile with a 77.0 x 25.20 mm view area, featuring 100 x 32 dots and a 0.54 x 0.55 mm pixel size. It emits a yellow light and uses a passive matrix design, operating at a 5V power supply with a duty cycle of 1/16. The display provides excellent optical performance with a contrast ratio of 2000:1, viewing angles of 160 degrees, and a lifetime up to 100,000 hours at 25°C, suitable for digital signage and wearable devices.
Vishay O100H032BLPP5N0000 Yellow OLED Display Specifications:
- Module dimension: 98.0 x 60.0 x 10.0 mm
- View area: 77.0 x 25.20 mm
- Active area: 58.95 x 19.15 mm
- Pixel size: 0.54 x 0.55 mm
- Dot pitch: 0.59 x 0.60 mm
- Display type: OLED, Yellow
- Polarizer: With Polarizer
- Display mode: Passive Matrix
- Supply Voltage: 5.0 V
- Duty cycle: 1/16
- View angle: 160 degrees
- Contrast ratio: 2000:1
- Response time: 10 us
- OLED lifetime: Up to 100,000 hours at 25°C
- Temperature range: -40°C to +80°C
- Operating voltage for logic: 5V VDD
- Dot matrix: 100 x 32 dots
- Panel size: 98.0 mm x 60.0 mm x 10.0 mm
Buy the Vishay Series OLED Display: 100x32 Graphic Yellow OLED Module: O100H032BLPP5N0000
Experience the vivid yellow visuals with this compact OLED display module, featuring 100 x 32 pixels and passive matrix technology. Designed for easy integration, it operates at 5V with a duty cycle of 1/16, offering wide viewing angles of 160 degrees and a contrast ratio of 2000:1. With a lifetime of up to 100,000 hours, it's ideal for embedded systems, digital signage, and wearables. Purchase online now to enhance your electronic projects with this reliable, high-performance OLED module, ensuring vibrant display quality and durability.
Get Vishay OLED O100H032BLPP5N0000 today—built for high contrast and long-lasting durability in compact display applications.
