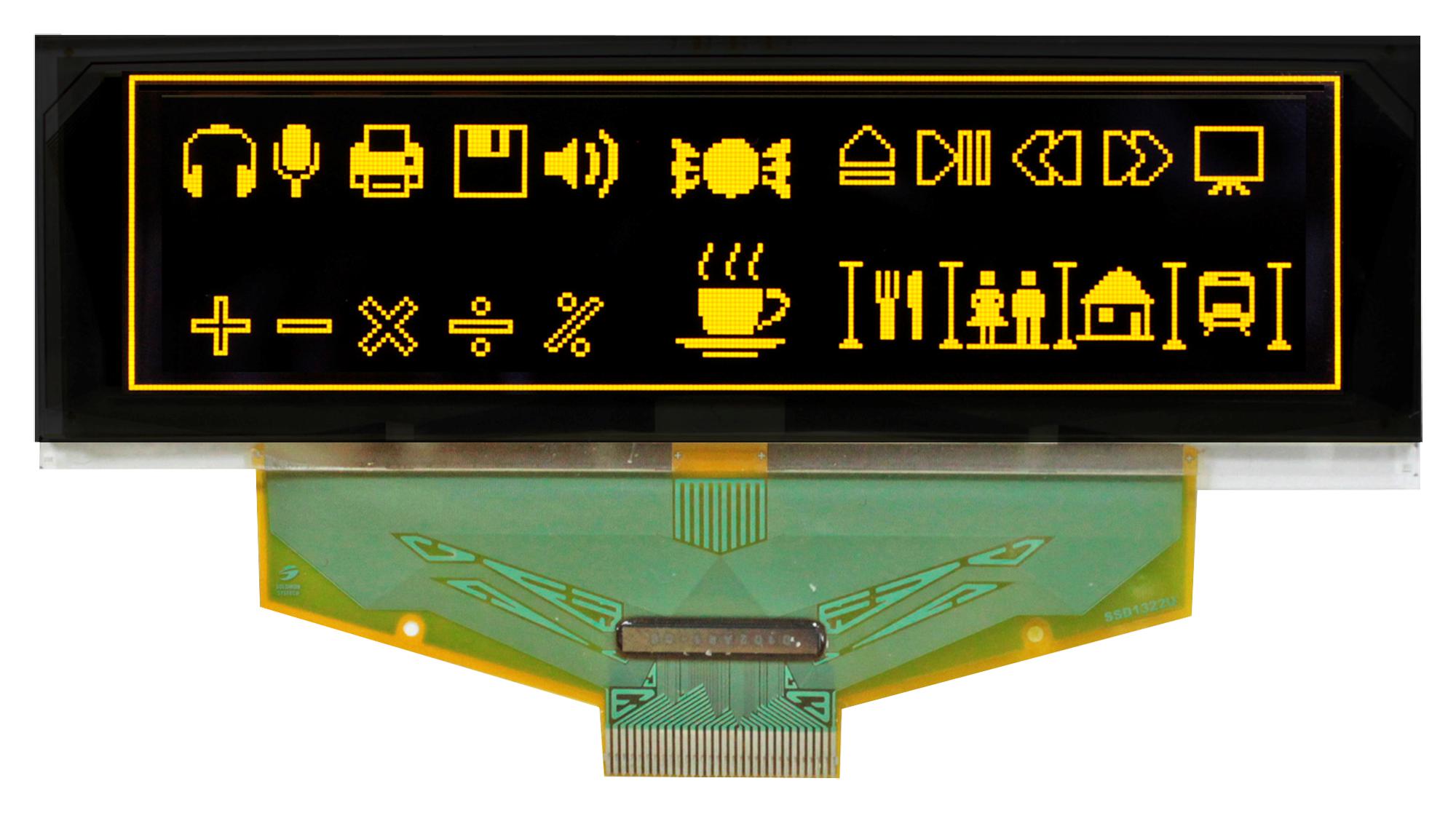

Vishay O256Y064BLPP3N0000 OLED Display Module
The OLED-256Y064A-LPP3NO0000 from Vishay is a high-quality yellow-emitting OLED display module with a 256 x 64 dot graphic layout. It features a passive matrix display mode with active area dimensions of 69.098 x 17.258 mm and pixel size of 0.248 x 0.248 mm. The module operates at 5V driver voltage, with a brightness of approximately 120 cd/m2, and has a lifespan of at least 50,000 hours at 25°C. Designed for imaging, video, and vision applications, it offers excellent contrast ratio and wide viewing angles, ensuring clear and vibrant visual performance under various conditions.
Vishay O256Y064BLPP3N0000 OLED Display Module Specifications:
- Module dimension: 84.0 x 25.8 x 2.05 mm
- Active area: 69.098 x 17.258 mm
- Dot matrix: 256 x 64 dots
- Pixel size: 0.248 x 0.248 mm
- Pixel pitch: 0.27 x 0.27 mm
- Display mode: Passive matrix
- Display color: Yellow
- Drive duty: 1/64 duty
- Operating voltage: 5.0 V
- Brightness: 120 cd/m2
- Viewing angle: 160 degrees
- Lifespan: 50,000 hours at 25°C
- Operating temperature: -40°C to 80°C
- Storage temperature: -40°C to 80°C
- Supply voltages for VCI, VDD, VSS, VCC, VDDIO, VLSS specified in detailed electrical specs
- Emitting color: Yellow
- Polarizer: Optional, with or without polarizer
- Display type: OLED for imaging and display applications
Buy the Buy Vishay OLED Display Part Number O256Y064BLPP3N0000 Online
Order the Vishay OLED Display Module with Part Number O256Y064BLPP3N0000 online today and enjoy quick delivery. This 256 x 64 yellow-emitting OLED module offers exceptional contrast, wide viewing angles, and a lifespan of 50,000 hours, making it ideal for imaging, video, and vision applications. Its passive matrix design and 5V operation ensure reliable performance in various operating environments. Enhance your project’s display capabilities by purchasing this high-quality, durable OLED module directly from our store.
Buy Vishay OLED display module, Part Number O256Y064BLPP3N0000, now and experience high contrast and wide viewing angles for reliable visual solutions.
Frequently Asked Questions
Where can I buy Vishay O256Y064BLPP3N0000?
You can click on the BUY or RFQ button to purchase O256Y064BLPP3N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O256Y064BLPP3N0000?
You can download the O256Y064BLPP3N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O256Y064BLPP3N0000?
Vishay
