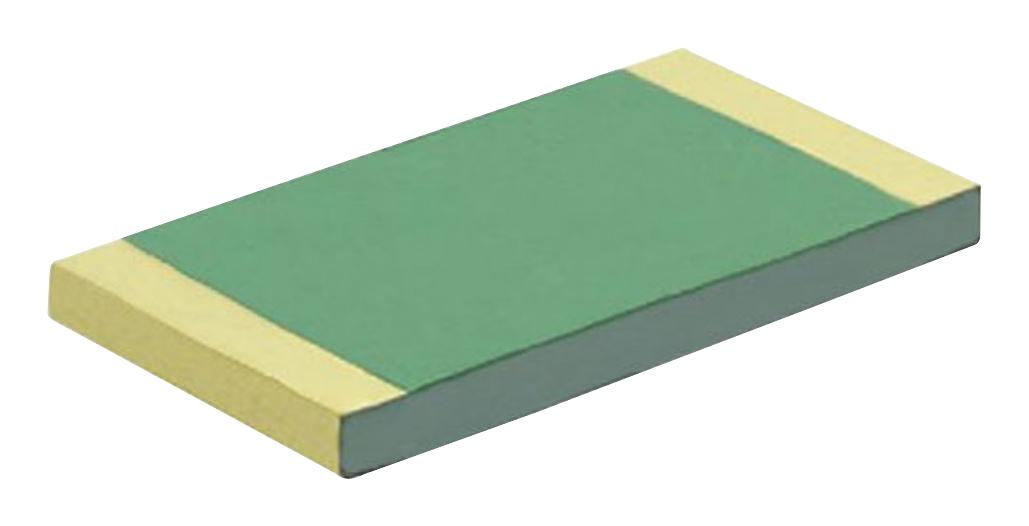

Vishay PEP1206Y1003WNTA Power Thin Film Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high power applications demanding low noise, high stability, and minimal temperature and voltage coefficients. They can withstand temperatures up to 250°C, with robustness primarily limited by terminations and solder joints. These resistors provide a load life stability of 0.1% typical (0.35% max) after 2000 hours at 70°C at maximum power, and resist sulfur vapor corrosion per ASTM B809-95. Features include tin-silver over gold barrier terminations, suitable for compact designs with same power ratings, making them ideal for advanced electronic equipment.
Vishay PEP1206Y1003WNTA Power Thin Film Resistor Specifications:
- Size: 1206 mm (0.120 x 0.060 inches)
- Resistance Range: 39Ω to 900kΩ
- Power Rating: 1 W on alumina/PCB, 0.66 W on standard substrates
- Temperature Range: -55°C to +155°C
- Maximum Operating Temperature: 250°C
- Resistance Tolerance: Down to ±0.05%
- Voltage Coefficient: 0.05 to 50 ppm/°C depending on model
- Material: Nickel chromium-based alloy film
- Terminations: Tin-silver over nickel barrier, gold over nickel barrier options
- Climatic Resistance: Sulfur resistant per ASTM B809-95
- Mechanical: Alumina substrate, epoxy + silicone passivation
- Dimensions: Length 3.06 mm, Width 1.60 mm, Tolerance ±0.152 mm
- Load life stability: 0.1% typical after 2000 hours at 70°C
- Humidity and humidity vapor resistant with epoxy and silicone passivation
- Termination types: Tin silver over nickel barrier or gold over nickel barrier
- Certifications: RoHS compliant, Halogen free
Buy the Vishay Series PEP Power Enhanced Thin Film Chip Resistors: PEP1206Y1003WNTA
Order the Vishay PEP1206Y1003WNTA high-precision power resistor online today. Engineered for high power, exceptional stability, and low noise, this resistor suits demanding applications. Its robust design withstands temperatures up to 250°C, making it ideal for compact, reliable circuitry in high-temperature environments. Featuring low resistance drift, sulfur resistance, and precise tolerance levels down to ±0.05%, it ensures long-term performance and durability. Purchase now to benefit from fast shipping and expert support for your advanced electronic projects.
Get Vishay PEP1206Y1003WNTA today—built for high power, low noise, and exceptional stability in compact electronic designs.
Frequently Asked Questions
Where can I buy Vishay PEP1206Y1003WNTA?
You can click on the BUY or RFQ button to purchase PEP1206Y1003WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP1206Y1003WNTA?
You can download the PEP1206Y1003WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP1206Y1003WNTA?
Vishay
