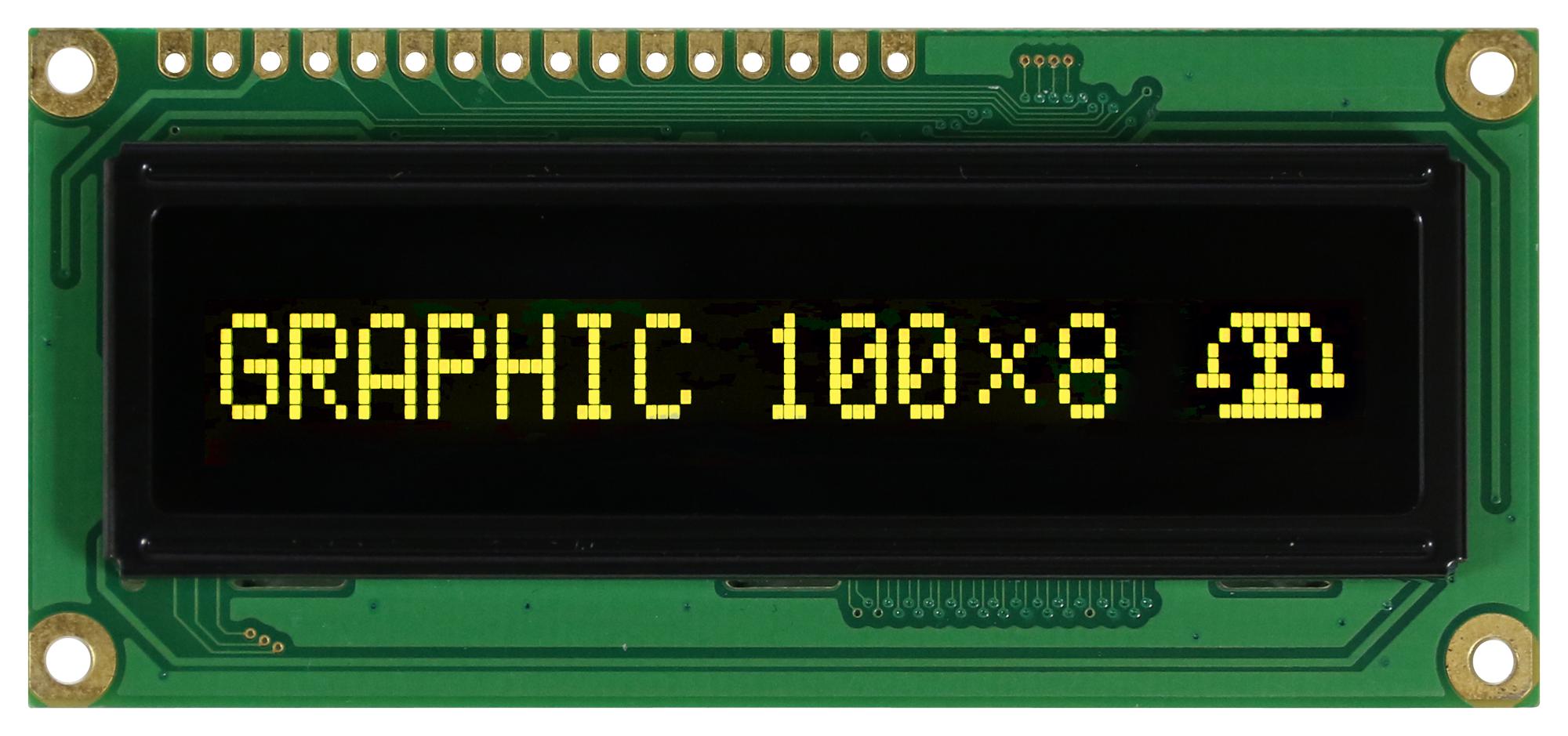

Vishay O100H008ALPP5N0000 graphic OLED display
The OLED module features a yellow-emitting 100 x 8 dot graphic display suitable for imaging, video, and vision applications. It includes a built-in OLED-0010 controller, operates at a 5V supply voltage, and uses a 1/8 duty cycle. The module dimensions are up to 80mm in length, 36mm in width, and 10mm in height, with a viewing area measuring 66mm x 16mm and an active area of 59.95mm x 6.35mm. Each dot measures 0.55mm x 0.75mm with a pitch of 0.6mm x 0.8mm. It features a polarized, passive matrix display with mounting holes located at 75mm x 31mm.
Vishay O100H008ALPP5N0000 graphic OLED display Specifications:
- Display Format: 100 x 8 dots
- Color Emission: Yellow
- Module Dimensions: 80.0 x 36.0 x 10.0 mm
- Viewing Area: 66.0 x 16.0 mm
- Active Area: 59.95 x 6.35 mm
- Dot Size: 0.55 x 0.75 mm
- Dot Pitch: 0.60 x 0.80 mm
- Supply Voltage for Logic: 3.0 V to 5.0 V
- Duty Cycle: 1/8
- Operating Voltage: Up to 5V
- Interface: 6800, 8080, SPI
- Viewing & Active Area Dimensions: 66mm x 16mm & 59.95mm x 6.35mm
- Mounting Holes: 75mm x 31mm
- Material: Passive matrix with polarizer (optional)
Buy the Buy Vishay OLED-100HO08A Part Number O100H008ALPP5N0000 Online
Order the Vishay OLED-100HO08A online today to experience a versatile graphic display designed for imaging, video, and vision applications. It features a yellow-emitting 100 x 8 dot matrix, built-in OLED-0010 controller, and operates reliably at 5V with a 1/8 duty cycle. Its compact dimensions include an 80mm length, a 36mm width, and a 10mm height, with mounting holes for easy installation. Perfect for applications requiring high visibility and polarization options. Get yours now for high-quality performance.
Get Vishay OLED-100HO08A today—built for precision with a compact design, 100 x 8 dot graphic display, and reliable operation at 5V for versatile imaging applications.
Frequently Asked Questions
Where can I buy Vishay O100H008ALPP5N0000?
You can click on the BUY or RFQ button to purchase O100H008ALPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H008ALPP5N0000?
You can download the O100H008ALPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H008ALPP5N0000?
Vishay
